Apparatus for Dew-point Measurement of Insulating Glass

Related Standard:
ISO 20492  Glass in buildings — Insulating glass
GB / T 11944   Insulating glass

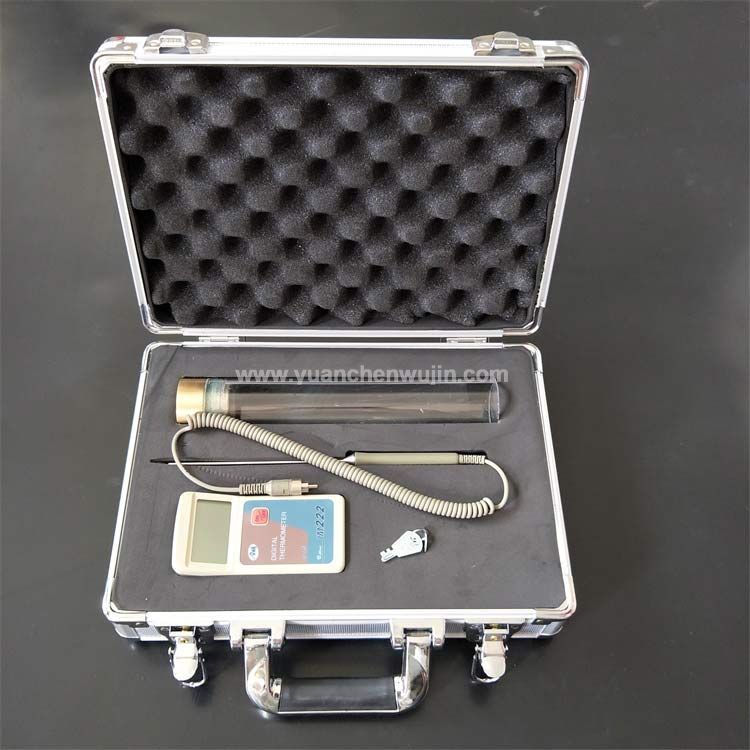

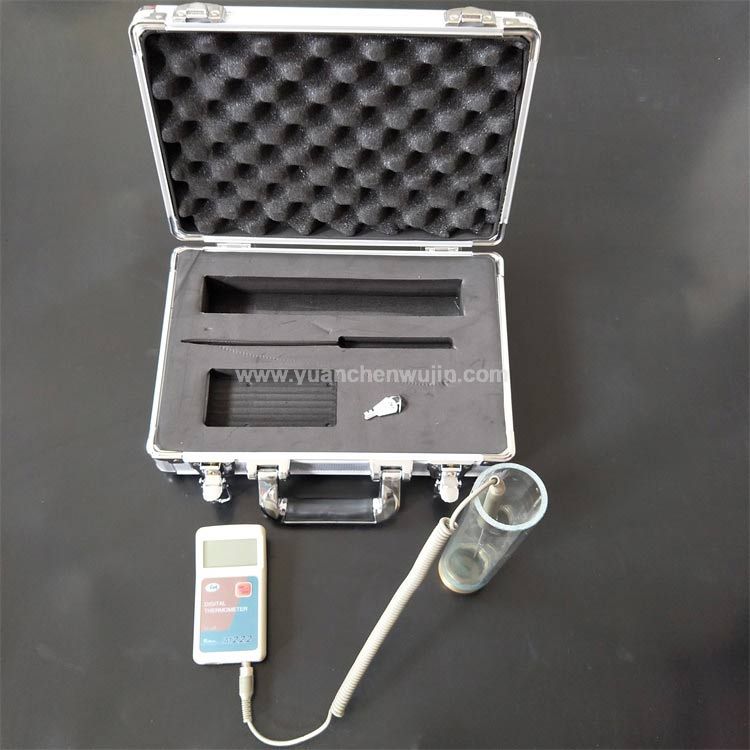

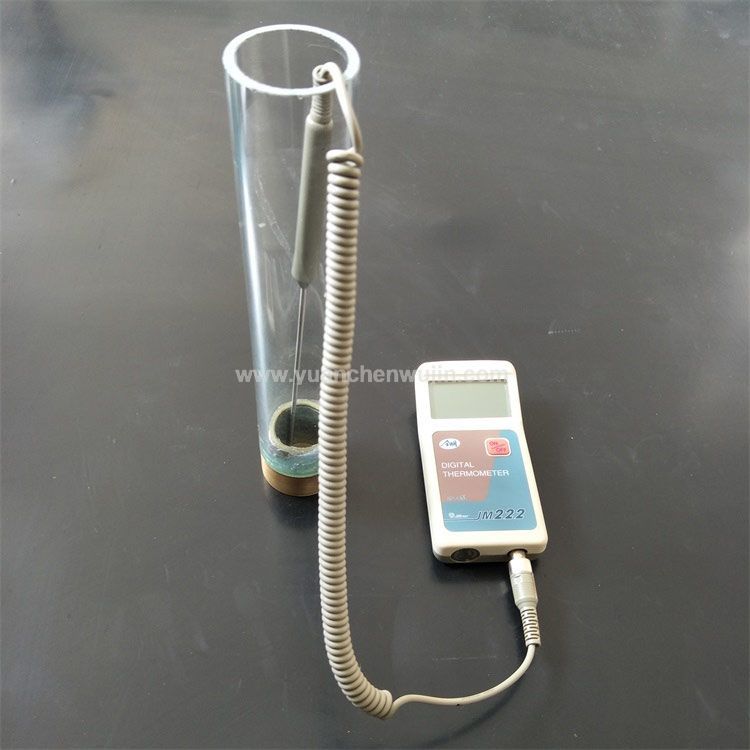

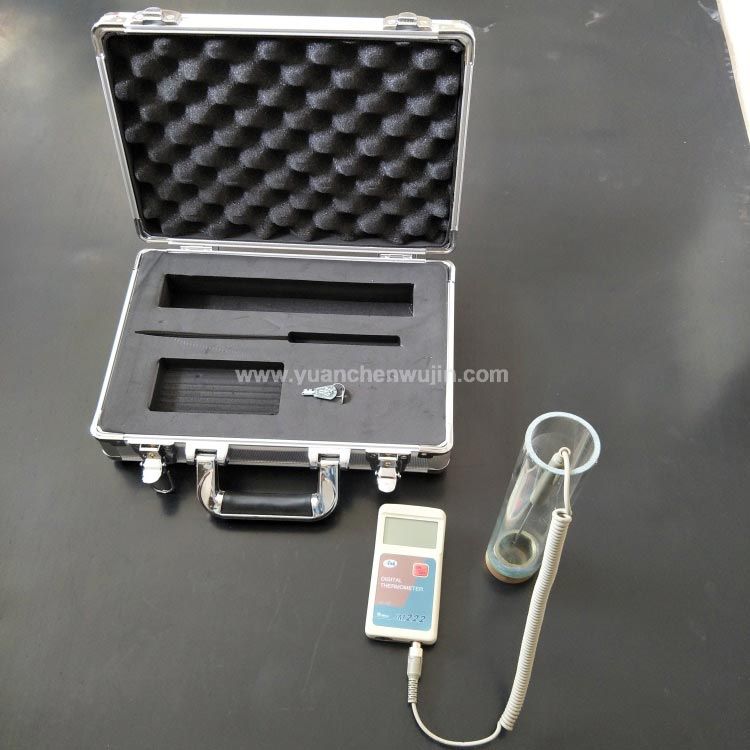

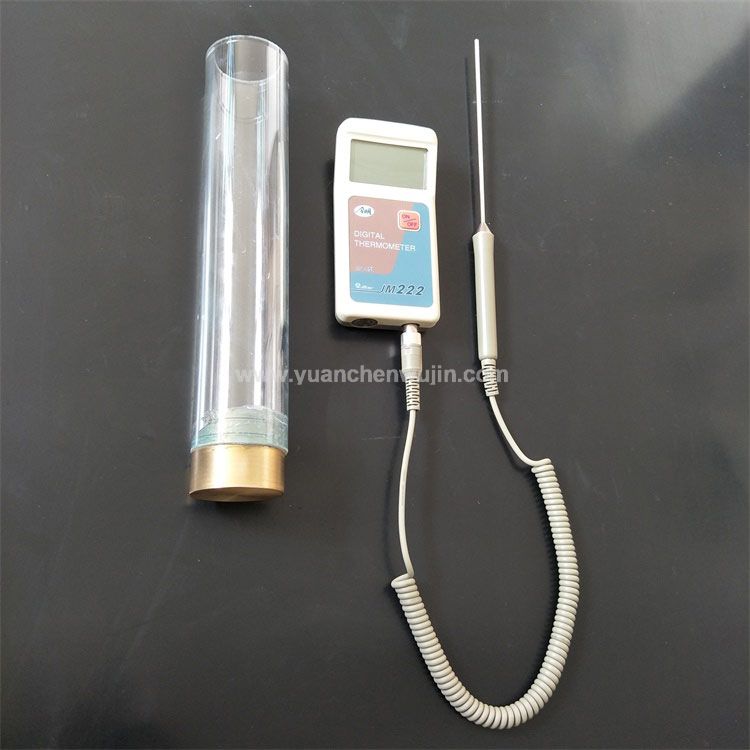

1, copper block; 2, measuring tube; 3, temperature probe; 4, temperature sensor; 5 digital display

Data:
Measuring probe operating temperature: -80℃ ~ 100℃
Tube height: 300mm
Tube diameter:  50mm
 Temperature resolution: 0.1 ℃
Samples size: 510mm × 360mm
Control box size: 470mm × 550mm × 700mm
Test environment: temperature: 23 ℃ ± 2 ℃; relative humidity: 30% to 75% RH
Operating voltage: AC220V 50Hz
Equipment power consumption: ≤ 1KW

Brief Introduction:
Insulating glass dew point instrument is mainly used to detect whether the inner surface of the hollow glass sample is condensed in the case of standard test conditions and methods.
Insulating glass dew point instrument main feature:
1. The use of semiconductor three refrigeration technology, the cooling temperature can be accurately set and control, cooling speed, the operation is very convenient, not only can be used in the laboratory, but also in the field to detect, do not need easy to use volatile ice, Easy to use and the use of low cost.
2. The probe and the refrigeration unit can be completely separated, convenient and practical and not subject to the direction of the specimen.
3. Integrated power, cooling, circulation and control system to achieve the whole process of automatic control, chassis and probe connected by the hose, the probe when the probe face contact with the specimen, the probe face can be any direction.
4. Using pt100 temperature probe, high precision, accurate data.
5. Temperature control using computer temperature control PID regulator technology, high precision temperature control, high temperature stability.

 Safety Glass Impact Testing Equipment.

Various testing equipment such as shot bags / twin tires and impact frame, 227 and 2260 g steel ball and ball drop impact devices, boiling test instruments for laminated glass, flatness measurement instruments for tempered glass, insulating glass dew point meters and head-form。

Attached is a catalog and brief description of the testing equipment. If you need more detailed instructions, please reply to the email, thank you!

Portable on-site Comprehensive Measurement Instrument for Energy-saving Glass

It is applicable to the field test for opt thermal parameters of energy-saving glass installed and or to be installed

The data that the instrument can measure is: thermal parameters, optical parameters, light transmittance, light reflectance, shading coefficient, U value, LSG, Low-E position, E value, space thickness, overall thickness, glass thickness

The types of glass that the instrument can measure are:

Single pane, Laminated glass, Uncoated insulated glass, Coating on both sides and below, Coating on more than two sides, Coating on both sides and below, Coating on more than two sides, Vacuum glazing

U Value Meter For IG

This instrument is suitable for single Low-E glass, double glazing or triple glazing glass which the number of Low-E side is less than two.

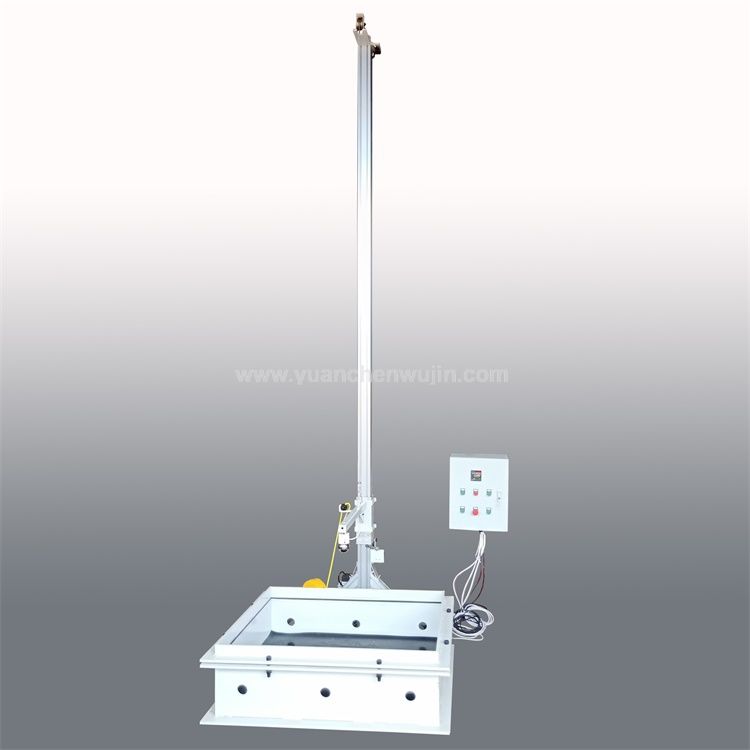

Ball Drop Test Device:

Steel Ball 2260g/1040g/508g/227g

Drop Height 1m-12m

Samples: 300mm/610mm

Pummel Test Device:

Hammer head diameter: 30mm

Impact Distance: Adjustable

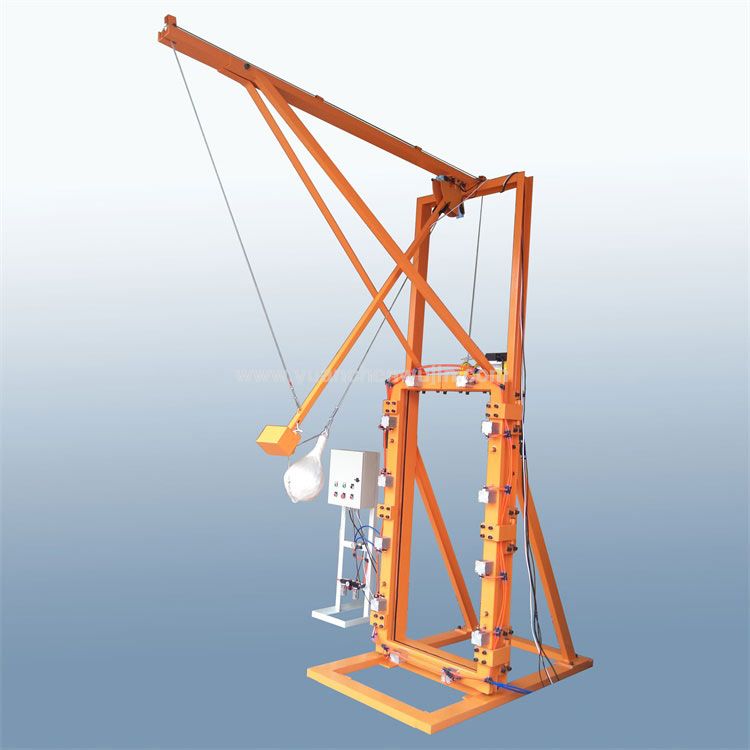

Shot Bag Impact Testing Frame:

Shot Bag 45kg/46kg

Automatic Release

Electric Lifting

Pneumatic Clamping

Head Form Test Device

Head Weight: 10kg

Head Size: 500mm*932mm

Impact height: < 1.5m

Samples size: 1100mm*500mm

Felt hat: 90g/89mm/3mm

Frame size: 1400mm*666mm*320mm

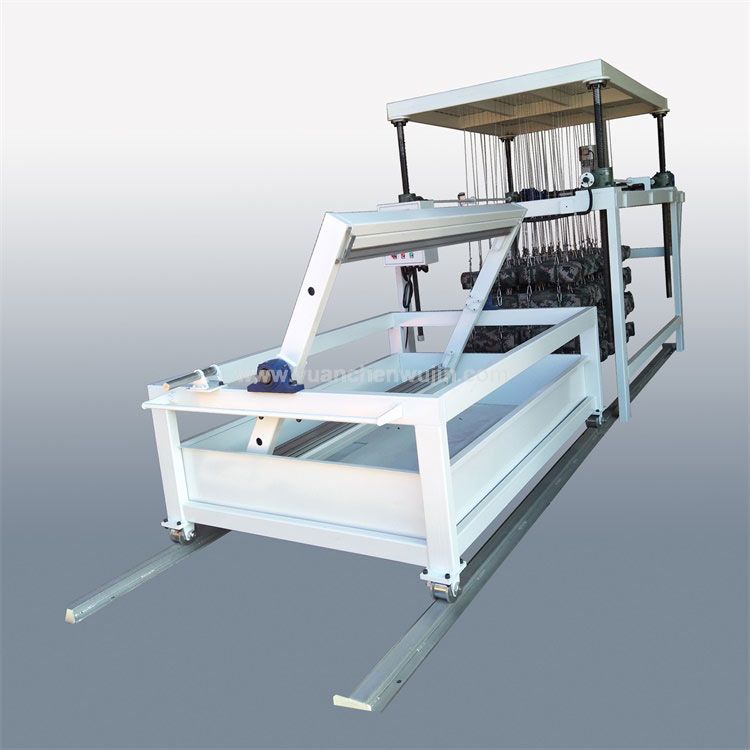

PV Load Test Equipment

Size: 6425mm*2000mm*3490mm

Samples: 1643mm*991mm~2009mm*1027mm (Customized)

Source: Sandbag

Load: 2400Pa 5400Pa 8100Pa 10000Pa (Customized)

Pneumatic Tyres Device

Weight 50 kg ± 0.1 kg

Tire pressure: 0.35Mpa ± 0.02Mpa

Type: 3.50-R8 4PR

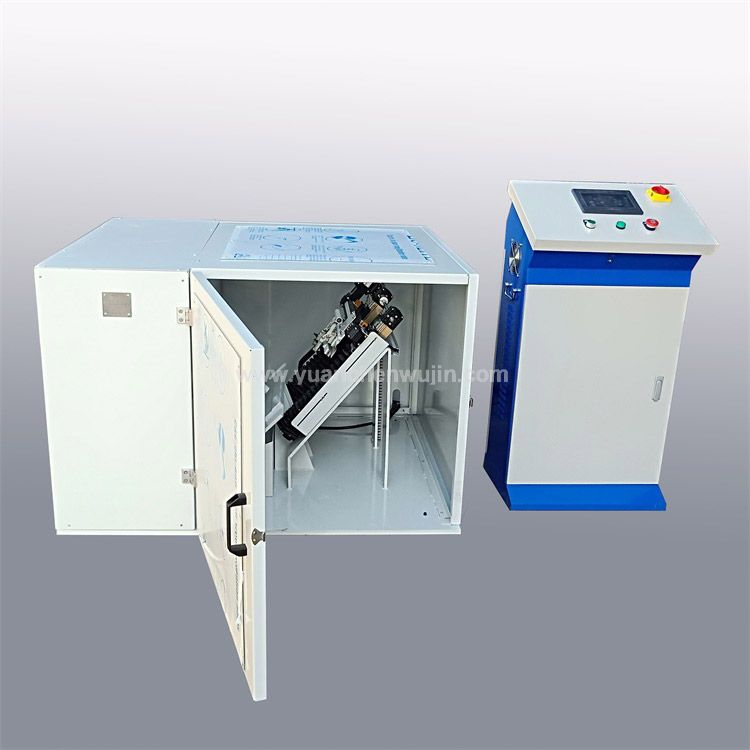

Forced Entry Resistant Glass Test Device

Axe: 810mm Long

Axe Quality: 1.80kg

Sample size: 610mm*610mm

Hard/Soft Pendulum Shock Test for Lifts

Hard pendulum shock device

Height: 330± 15mm

Max diameter: 240±10mm

Weight: 10kg ± 0.1kg

Material: according to ISO standard

Filler: 3.5mm + 0.25mm

Soft pendulum shock device

Height: 330mm ± 15mm

Maximum diameter: 240mm±15mm

Weight: 45kg ± 0.5kg

Material: leather bag

Filler: diameter 3.5mm ± 1mm lead sand

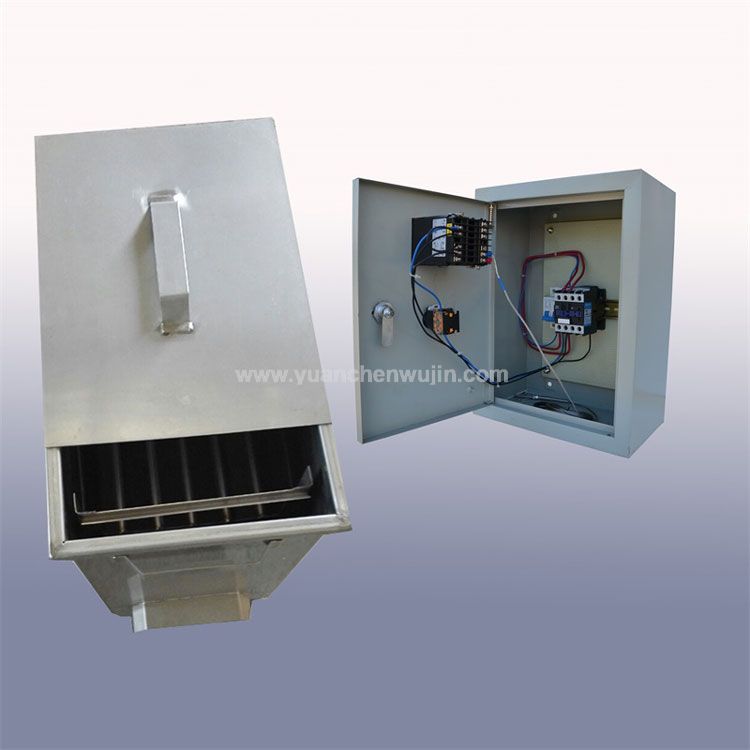

Laminated Glass High Temperature Test Oven

Power: 220V 50Hz 3Kw (Customized)

Outside Size: 400mm*255mm*480mm

Inside Size: 400mm*255mm*480mm

At most 6 samples with 300mm*300mm

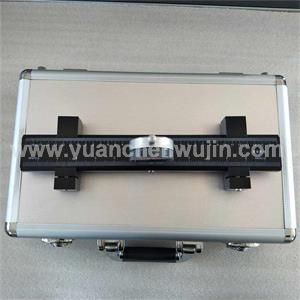

Tempered Glass Flatness Measuring Instrument

Measurement of arcuate form and wave form of toughened glass

Resolution: 0.01mm

Measuring Span: 300mm-12000 mm ( Customized)

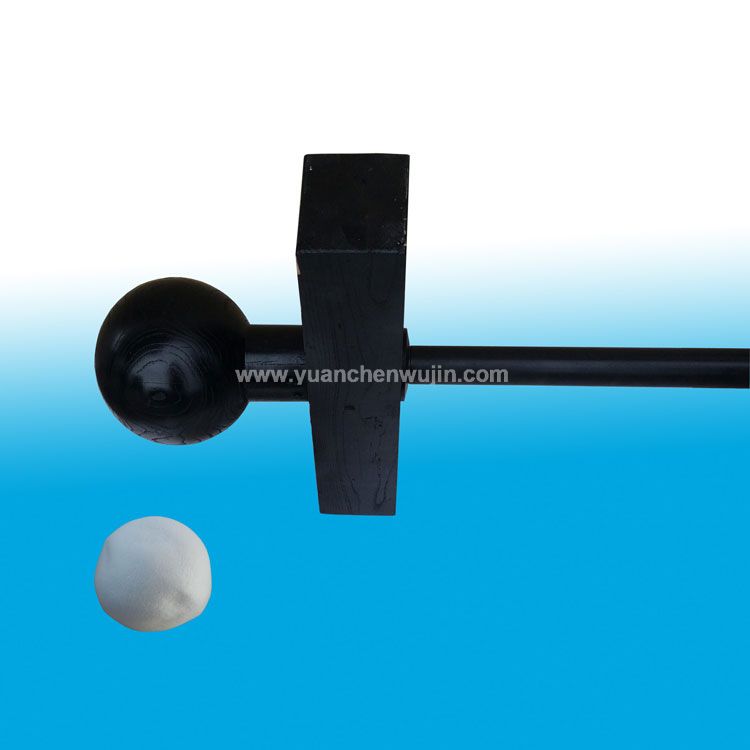

Impactor for building Glass and Metal Guardrail

Impact Steel ball

Weight: 1040g ± 10g

Dia: 63mm

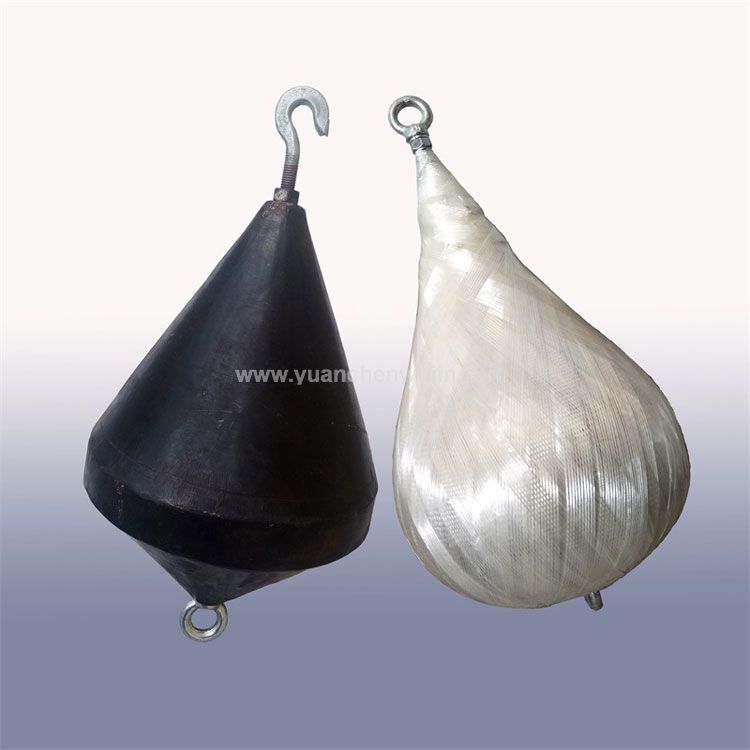

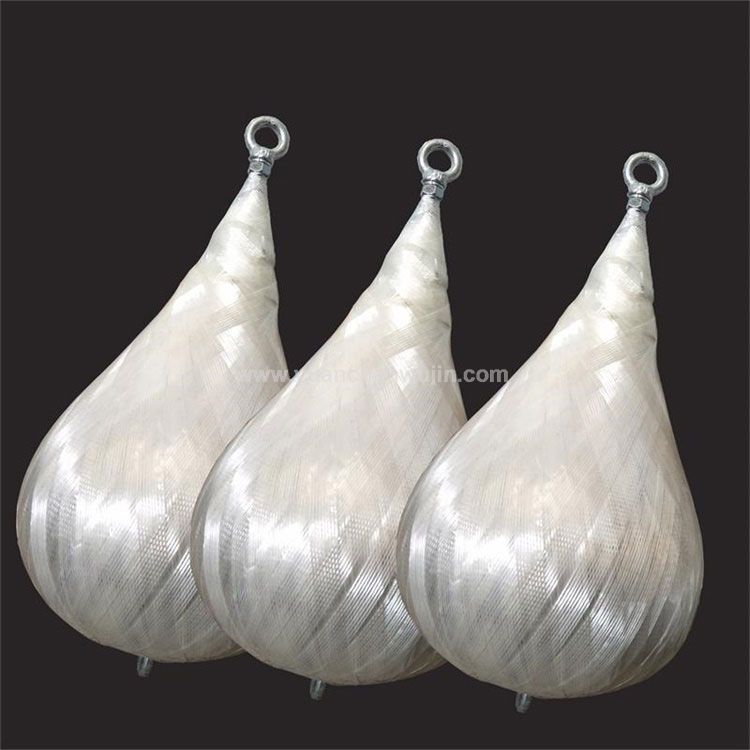

Shot bag impactor

Data:

Weight: 45kg ± 0.1kg

Height: 330mm ± 13mm

Max diameter: 250mm

Material: leather bag filling lead shot

Leather thickness: 0.15mm

Lead sand size: 2.5mm

Hard and Soft Body Impactors for Opaque Wall Components

Soft body:

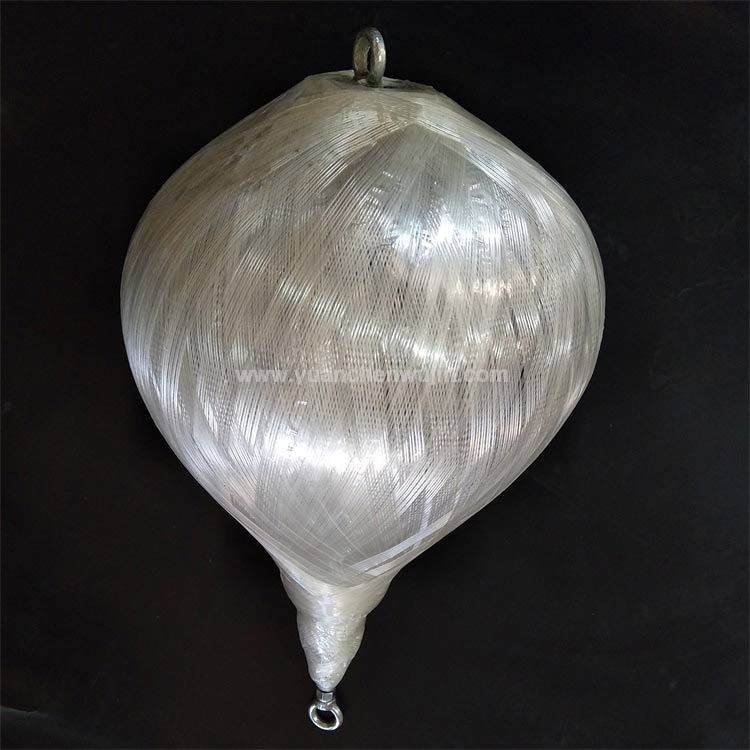

Weight: 50kg

Dia: 400mm

Conical canvas bag filles with 3mm glass sphere

Hard Body:

Steel Ball 0.5 kg/50mm

Steel Ball 1 kg/62.5mm
