Product Name:

Impact Testing Machine

Model No.:

ISO/EN


Product Details

Impact Testing Machine


Safety Performance Test Equipment for Safety Glazing Materials Used in Buildings

Safety Glass Impact Testing Equipment

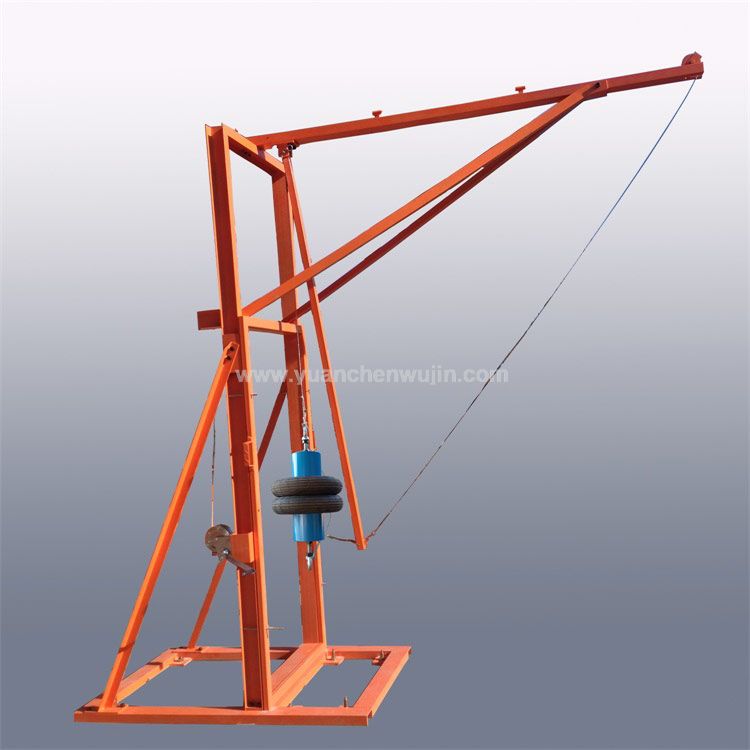

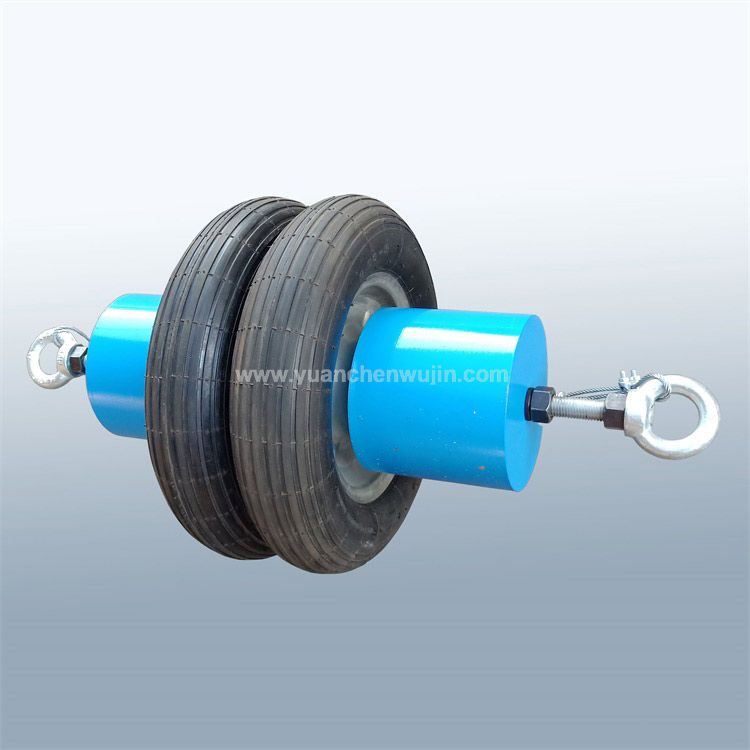

Shot bag 45 /46 kg impact frame, Pneumatic Tyres Impact equipment, 227 / 1040 / 2260 g steel ball test device, pummel test machine, etc


Related Standards:

1) AS/NZS 2208 Safety glazing materials in buildings – Appendix D: Impact Test
2) GB 15763.3 Safety glazing materials in building Part 3: Laminated glass – Appendix C: Test device for the impact performance of shot bag
3) ANSI Z97.1 Safety Glazing Materials Used in Buildings-Safety Performance Specifications and Methods of Test-Clause 5.1: Impact Test
4) ASTM E2353 Standard Test Methods for Performance of Glazing in Permanent Railing Systems, Guards, and Balustrades – Clause 7.3 Shot Bag, Traction and Release System
5) IEC 61730-2 Photovoltaic (PV) module safety qualification-Part 2: Requirements for testing 10.21 Module breakage test MST 32


Application:

Determining the resistance of glazing materials to impact by the penetration method


Impact Frame

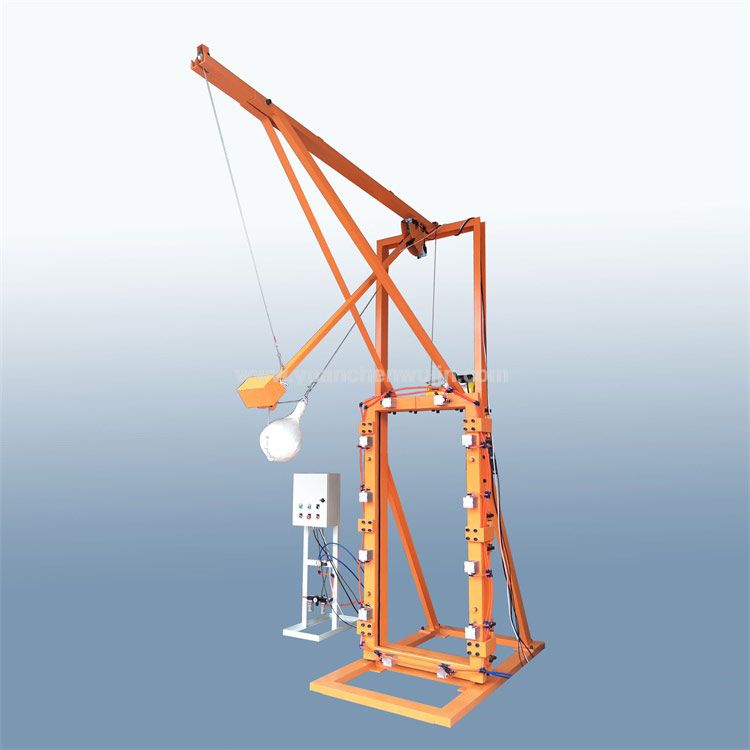

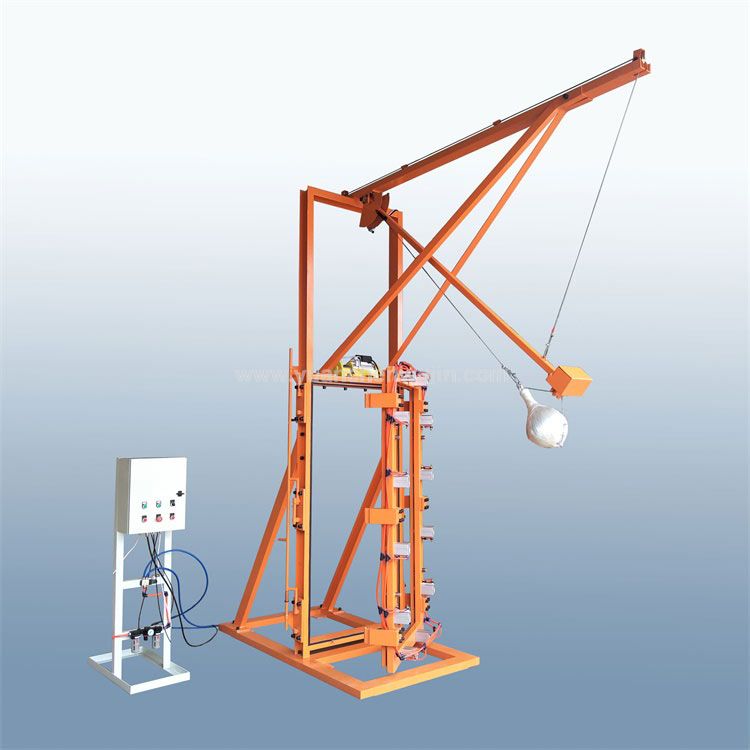

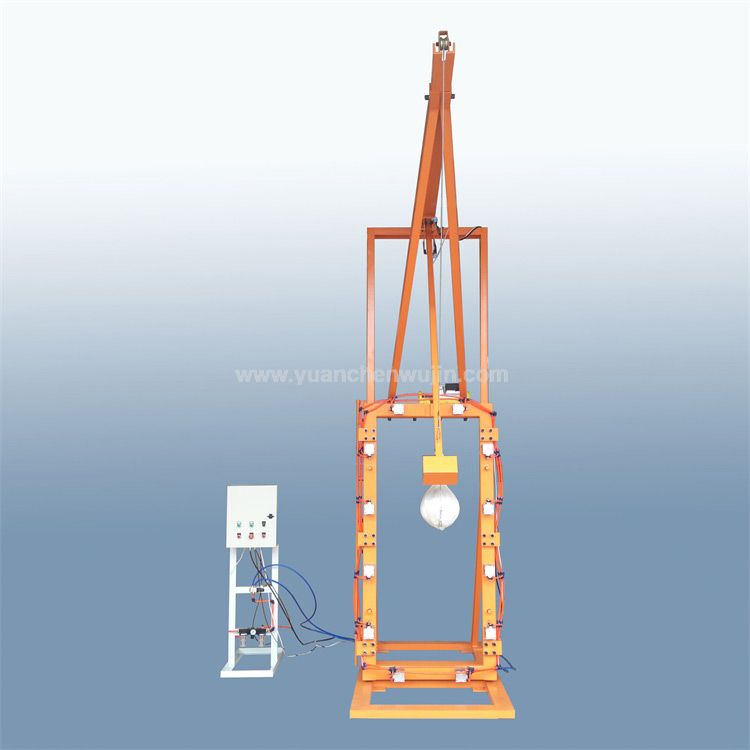

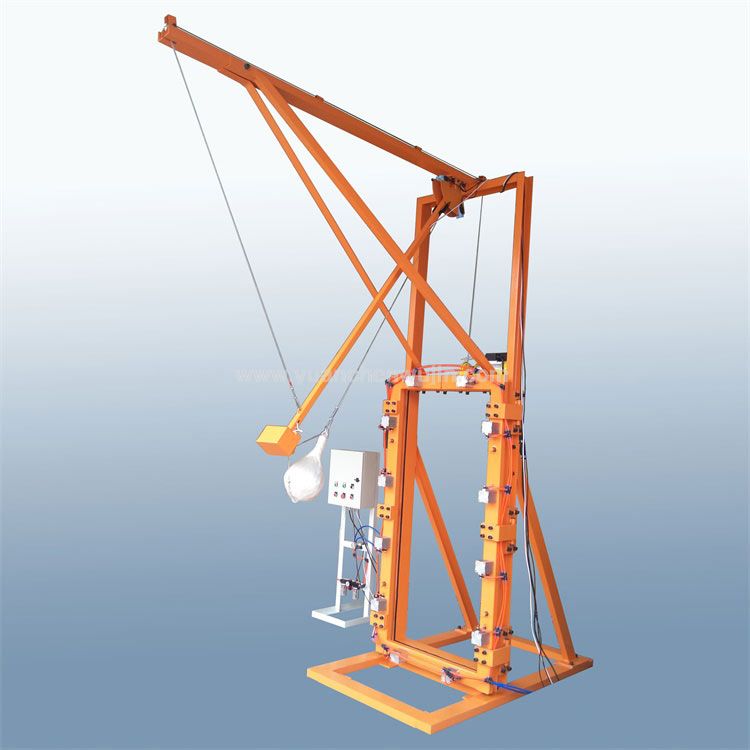

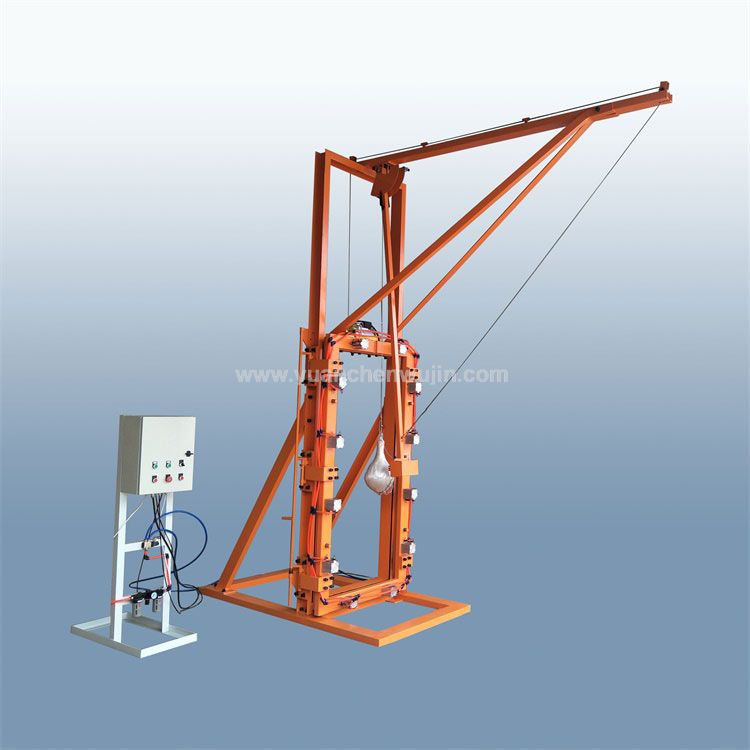

1: Bottom Frame 2: Anchor Bolt 3: Cylinder 4: Electromagnet Release Device

5: Swing Arm 6: Upper Inclined Support 7: Cantilever 8: Scale Dial 9: Main Frame

10: Electric Hoist 11: Control Rod 12: Shot Bag Impactor 13 :Lower Inclined Support

Test Frame:
Frame Size: 1900mm × 1500mm × 3570mm
Samples Size: 1930mm × 864mm
Lift: Electric
Release: Auto
Maximum impact height: 1200mm (customized)
Rubber Pad Width: 15mm
Rubber Pad Thickness: 3mm
Rubber Pad Hardness: Shore A50

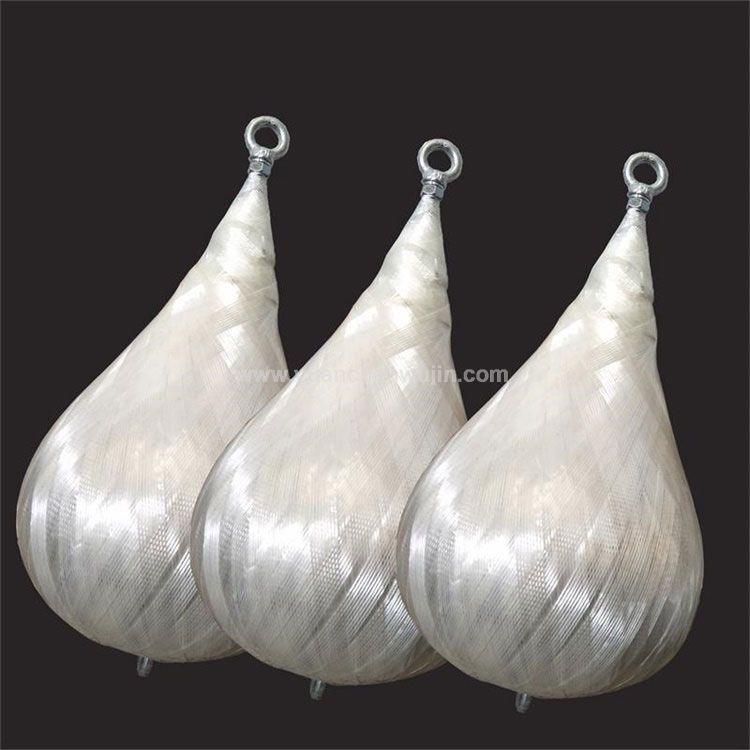

Impact Shot Bag:
Reinforced leather bag filled with lead shot
Technical Data:
Weight: 45kg ± 0.1kg 46kg ± 0.1kg
Height: 330mm ± 13mm
Max diameter: 250mm
Lead sand size: 2.5mm
Customized: 25kg 48kg
