Product Name:

Measurement of Arcuate Form and Wave Form of Toughened Glass

Model No.:

300mm


Product Details

Measurement of Arcuate Form and Wave Form of Toughened Glass

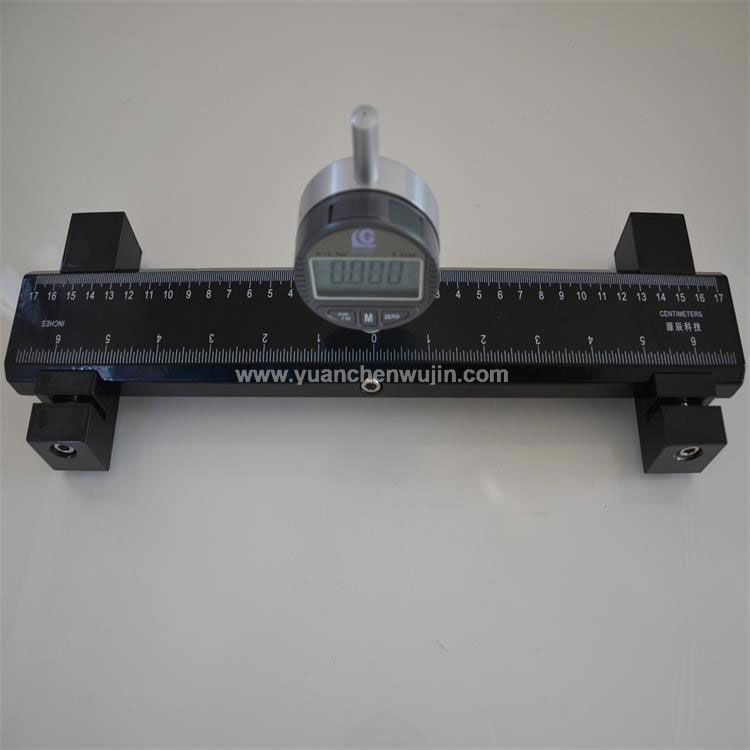

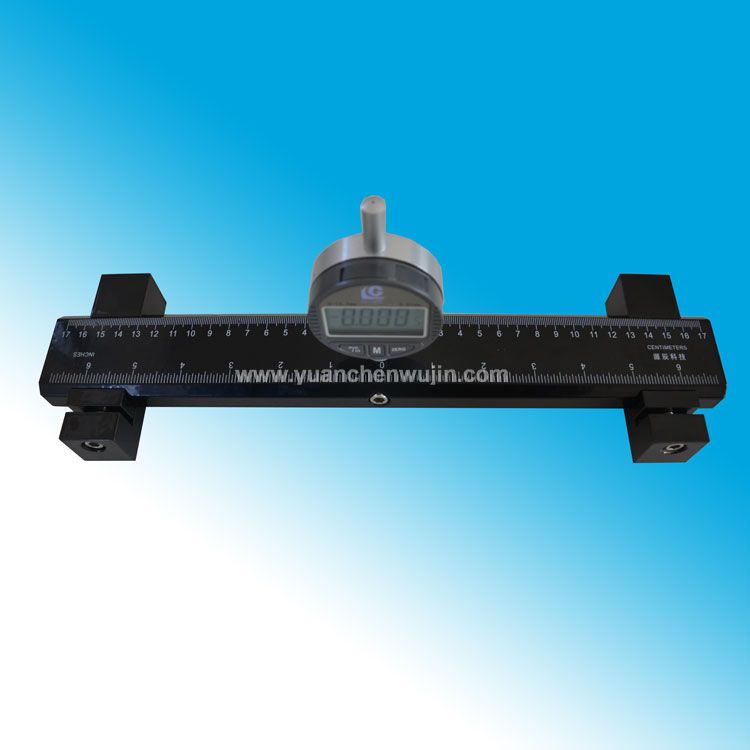

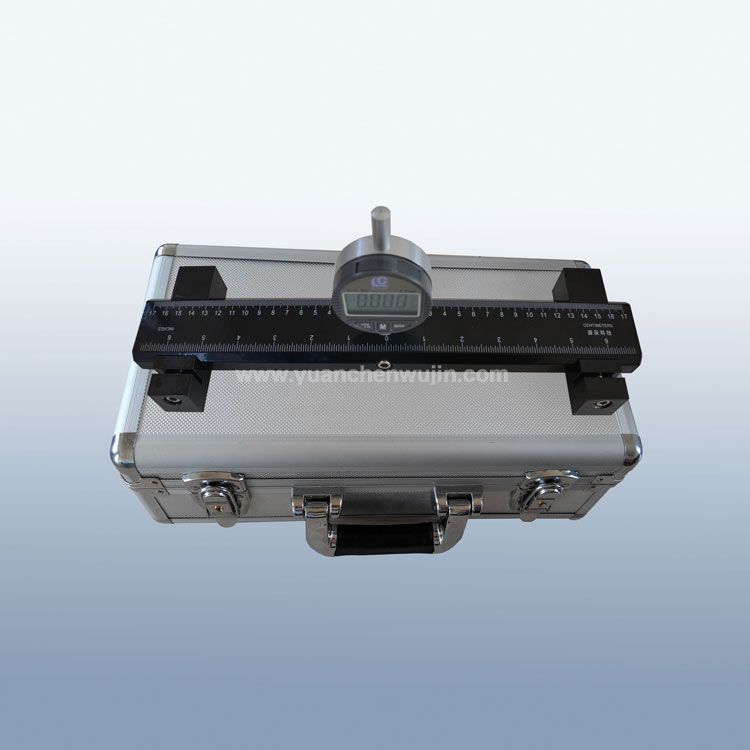

Type: YC-C01-300

Application:

Camber measuring of tempered glass

Related standard:

1)      GB 15763.2 Safety glazing materials in building

- Part 2: Tempered glass

Clause 5.4 Camber measuring

2)      AS NZS 2208 Safety glazing materials in buildings

Clause 2.5 Flatness requirements

Application:

3)      Measurement of arcuate form and wave form of toughened glass

Technical parameters:

4)      Resolution: 0.01mm

5)      Measuring Span: 300mm-12000 mm ( Customized)

6)      Working Temperature: 0~+40℃

7)      Working Humidity: ≤80%

Instruction:

8)      Adjust the measurement and set up to track the maximum data. Adjust the span of the support block according to request.

9)      Adjust the position of measuring head, to ensure that the measuring head is beyond 2mm-3mm of the plane of three support feet.

10) Gently stick the surface of the glass to ensure that three supporting feet are able to touch the glass.

11) Slide the measure location and read the data.

Product features:

12) Continuous measurement and monitoring of the flatness of the glass, data display and recorded.

13) Simple operation, fast measurement, low cost, widely used in the flatness measurement of glass.

14) The specifications of the equipment are various; the measuring span (300mm, 500mm, 800mm, 1000mm, and 1200mm) can be customized according to customers’ requirements.

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass



Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass


Various of tesing equipment for safety glazing materials:

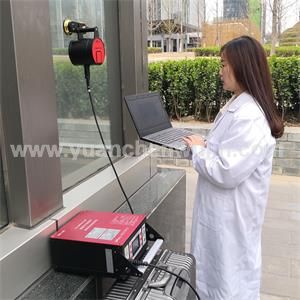

Portable on-site Comprehensive Measurement Instrument for Energy-saving Glass

It is applicable to the field test for opt thermal parameters of energy-saving glass installed and or to be installed

The data that the instrument can measure is: thermal parameters, optical parameters, light transmittance, light reflectance, shading coefficient, U value, LSG, Low-E position, E value, space thickness, overall thickness, glass thickness

The types of glass that the instrument can measure are:

Single pane, Laminated glass, Uncoated insulated glass, Coating on both sides and below, Coating on more than two sides, Coating on both sides and below, Coating on more than two sides, Vacuum glazing



U Value Meter For IG

This instrument is suitable for single Low-E glass, double glazing or triple glazing glass which the number of Low-E side is less than two.



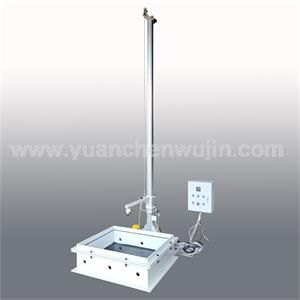

Ball Drop Test Device:

Steel Ball 2260g/1040g/508g/227g

Drop Height 1m-12m

Samples: 300mm/610mm



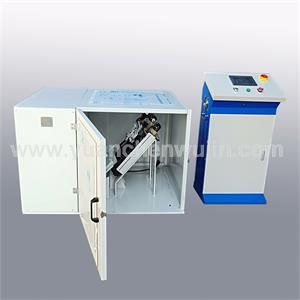

Pummel Test Device:

Hammer head diameter: 30mm

Impact Distance: Adjustable

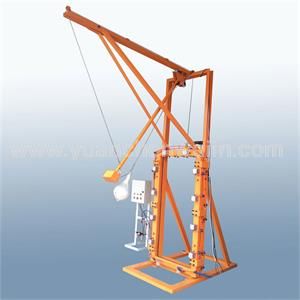

Shot Bag Impact Testing Frame:

Shot Bag 45kg/46kg

Automatic Release

Electric Lifting

Pneumatic Clamping

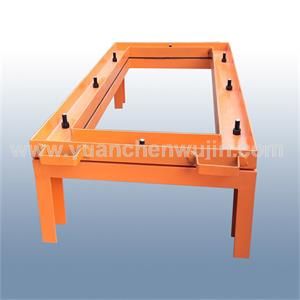

Head Form Test Device

Head Weight: 10kg

Head Size: 500mm*932mm

Impact height: < 1.5m

Samples size: 1100mm*500mm

Felt hat: 90g/89mm/3mm

Frame size: 1400mm*666mm*320mm



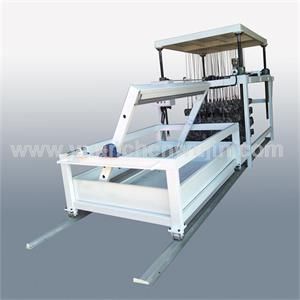

PV Load Test Equipment

Size: 6425mm*2000mm*3490mm

Samples: 1643mm*991mm~2009mm*1027mm (Customized)

Source: Sandbag

Load: 2400Pa 5400Pa 8100Pa 10000Pa (Customized)



Pneumatic Tyres Device

Weight 50 kg ± 0.1 kg

Tire pressure: 0.35Mpa ± 0.02Mpa

Type: 3.50-R8 4PR



Forced Entry Resistant Glass Test Device

Axe: 810mm Long

Axe Quality: 1.80kg

Sample size: 610mm*610mm



Insulating Glass Dew Point Meter

Operating temperature: -80°C ~ 100°C

Tube height: 300mm

Tube diameter: 50mm

Temperature resolution: 0.1 °C



Hard/Soft Pendulum Shock Test for Lifts

Hard pendulum shock device

Height: 330± 15mm

Max diameter: 240±10mm

Weight: 10kg ± 0.1kg

Material: according to ISO standard

Filler: 3.5mm + 0.25mm

Soft pendulum shock device

Height: 330mm ± 15mm

Maximum diameter: 240mm±15mm

Weight: 45kg ± 0.5kg

Material: leather bag

Filler: diameter 3.5mm ± 1mm lead sand



Laminated Glass High Temperature Test Oven

Power: 220V 50Hz 3Kw (Customized)

Outside Size: 400mm*255mm*480mm

Inside Size: 400mm*255mm*480mm

At most 6 samples with 300mm*300mm

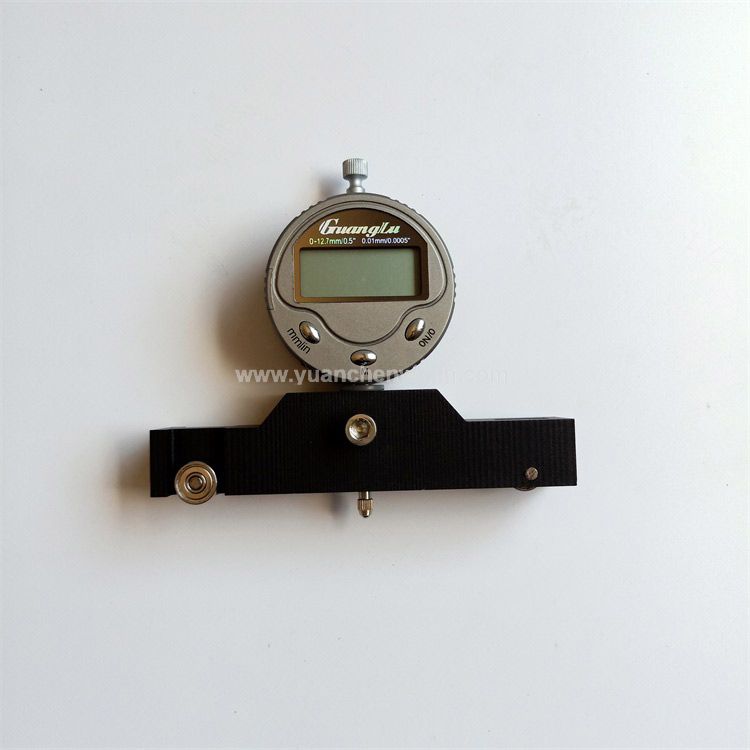

Tempered Glass Flatness Measuring Instrument

Measurement of arcuate form and wave form of toughened glass

Resolution: 0.01mm

Measuring Span: 300mm-12000 mm ( Customized)



Impactor for building Glass and Metal Guardrail

Impact Steel ball

Weight: 1040g ± 10g

Dia: 63mm

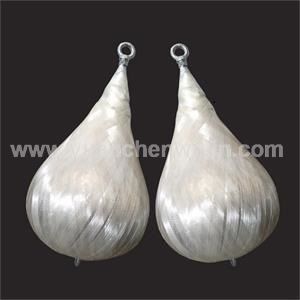

Shot bag impactor

Data:

Weight: 45kg ± 0.1kg

Height: 330mm ± 13mm

Max diameter: 250mm

Material: leather bag filling lead shot

Leather thickness: 0.15mm

Lead sand size: 2.5mm



Hard and Soft Body Impactors for Opaque Wall Components

Soft body:

Weight: 50kg

Dia: 400mm

Conical canvas bag filles with 3mm glass sphere

Hard Body:

Steel Ball 0.5 kg/50mm

Steel Ball 1 kg/62.5mm

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass

Measurement of Arcuate Form and Wave Form of Toughened Glass


Safety Glass Testing Equipment. All testing equipment is manufactured according to relevant standards (GB, IS, AS ZNS, ASTM, ANSI, EN and ECE). Our glass impact testing equipment is applied in China, India, USA, Australia and EU etc.




No.

Name

ID

Description

Impact   Resistance

1

Shot Bag Impact   Frame

YC-PS-02

Automatic   Release/Electric Lifting/Pneumatic Clamping

2

YC-Z-1954

Manual   Release/Manual Lifting/Mechanical Clamping

3

Shot Bag

YC-S01-11

25 lbs

4

YC-S01-25

25kg

5

YC-S01-45

45Kg

6

YC-S01-46

46Kg

7

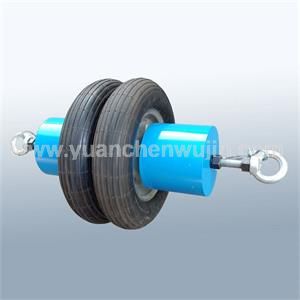

Pneumatic Tyres   Impactor

YC-PT-01

50kg/3.50-R8   4PR

8

Resistance   Measurement Ball

YC-R-76

Diameter 76mm   / Maximum Range 30N / Accuracy: ± 0.5%

9

1 m Ball Impact   Tester

YC-C-01

Manual   release/Maximum impact height 1 m/Include 610mm*610mm support

10

2 m Ball Impact   Tester

YC-C-02

Maximum impact   height 2 m/Include 610mm*610mm support

11

5 m Ball Impact   Tester

YC-C-05

Auto Lifts and   release/Maximum impact height 5 m/Include 300mm*300mm and 610mm*610mm support

12

12 m Ball Impact   Tester

YC-C-12

Auto Lifts and   release/Maximum impact height 12 m/Include 300mm*300mm and 610mm*610mm   support

13

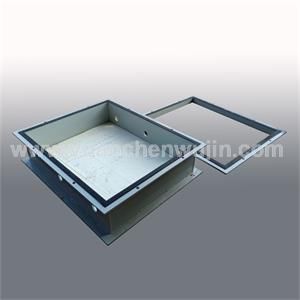

Support for Ball   Tests

YC-FB-1000

610mm*610mm

14

Support for Ball   Tests

YC-FB-300

300mm*300mm

15

Ball Falling   Release Device

YC-ARD-01

Auto Release   Device

16

Support for   Impact Resistance

YC-C-MS

40mm*40mm/Cover   Glass for windows of mobile electronic devices

17

Hardened-steel   Ball

YC-GQ-227

227g/38mm

18

YC-GQ-508

508g/50mm

19

YC-GQ-1040

1040g/63mm

20

YC-GQ-2260

2260g/82mm

21

Headform

YC-R01-ZJ10

10kg

22

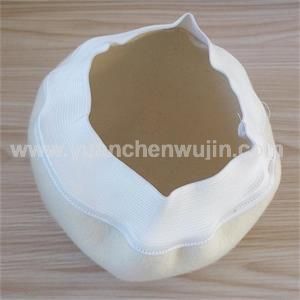

Wool Felt for   Headform

YC-R01-ZJ89

Radius 89mm

23

Supporting   Fixture for Headform

YC-R02-ZJ10

1100mm*500mm

24

Pummel Machine

YC-Q-02

Auto Pummel /   Automatic Movement / Max Sample 300mm * 300mm / Max Gap 15mm

Tempered Glass   Flatness

25

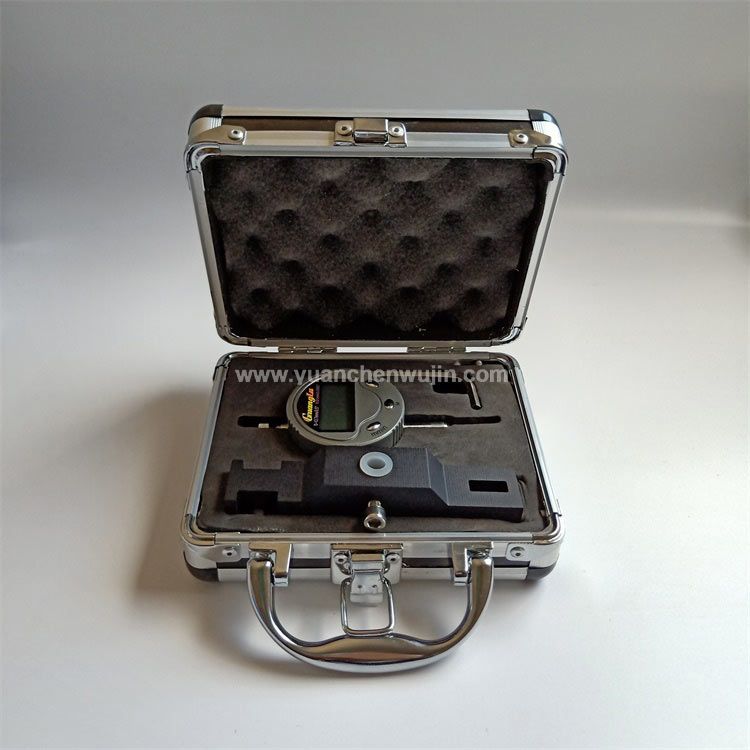

Flatness Measure   Instrument

YC-C01-300

Measuring Span   300 mm

26

YC-C01-500

Measuring Span   500 mm

Static Load   Test

27

Static Load   Tester

YC-PV-2400

2400Pa/Sandbag/Samples:   1643mm*991mm~2009mm*1027mm (Customized)

High   Temperature Test

28

Two-step Method   of Boil Test Device

YC-B02-300

66°C for 3 min   and then 100°C for 2 h / 6 samples with 300mm

29

One-step Method   of Boil Test Device

YC-B01-300

Directly 100°C   for 2 h / 6 samples with 300mm

Optical   Measure

30

Optical-distortion   Test Instrument

YC-GJ-01

Include   Support Stand

31

Secondary-image-separation   Test Instrument

YC-BS-01

Target   Test/Include Support Stand

Appearance   Inspection

32

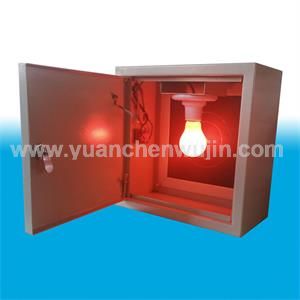

Hollow Glass   Observation Case

YC-OB-01


Radiation Test

33

Radiation   Resistance Testing Machine

YC-NFZ-02


Pendulum Shock   Test for Electric Lifts

34

Soft Pendulum   Shock Device

YC-S01-45

45Kg

35

Hard Pendulum   Shock Device

YC-S01-10

10Kg

Impact Test   for Doorsets

36

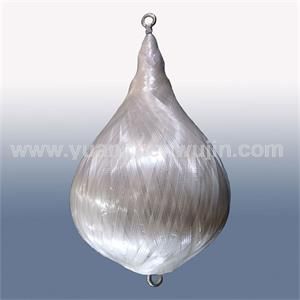

Soft Heavy Body   Impactor

YC-Z01-30

30Kg

Forced Entry   Resistant Glass Impact

37

Forced Entry   Resistant Glass Tester

YC-FZ-01


Impact Test of   Heavy Objects for Glass and Metal Guardrail for Building

38

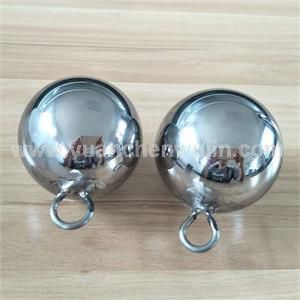

Solid Steel Ball

YC-GQ-E1040

1040g/With   hook

39

Shot Bag   Impactor

YC-S01-45


Sound   Insulation Test

40

Sound Insulation   Testing Equipment

YC-SI-01

300mm×300mm

Others

41

Dew Point Meter

YC-L01-80

Dry Ice -80°C

42

Crush Pen

YC-J01

75g±0.3g/Radius   of Curvature of the Point 0.2mm ± 0.05 mm

43

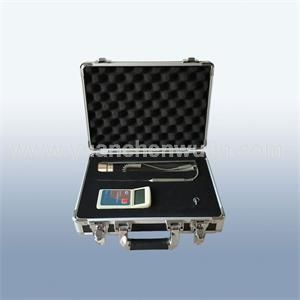

Temperature and   Humidity Meter

YC-M-01

1°C/2%

44

Measure Tape

YC-TC-01

1mm

45

Calipers

YC-TC-02

0.02mm

46

Steel Ruler

YC-TC-03

1mm

47

Electronic   Balance

YC-EB-01

0.1g

48

Feeler Gauge

YC-FG-01

 0.01mm

Agency Business

Sales Agency of   Beijing Aoptek Science Co.,Ltd. for All testing equipment(ex-factory price)

49

 Measurement Instrument                   for Energy-saving Glass

GlasSmart 1000

Various of   parameters can be measured and calculated with Non Destructive and on-site

Complete the   measurement and calculation of all parameters of optical and thermal according   to relevant standards

T(λ), ρ(λ),   Tv, Pv, L* a* b*, Te, Pe, ae, g, gIR, SC, SHGC, LSG, Emissivity, Glass   Thickness, Spacer Thickness

Applicable to   owners, designers, construction, supervision units and quality inspection   agencies

50

U Value Meter   For IG

GlassMeter 800K

IG ThicknessLow-E Position, Emmisivity, U Value

Notes

Refer to   international standards (ISO/EN) and can be processed as required.

All delivery   time is subject to contract

Equipment prices   may vary due to raw material market reasons, subject to actual contract

All of the above   are ex-factory prices and do not include on-site installation and   commissioning costs / Negotiated if necessary
