Product Name:

High Temperature Test Oven

Model No.:


Product Details

High Temperature Test Oven
Heat Resistance Test Device for Laminated Glass

Related Standard:
1) EN ISO 12543 - 4 Glass in building -Laminated glass and laminated safety glass - Part 4: Test methods for durability – Clause 5 High-temperature test
2) AS/NZS 2208 Safety glazing materials in buildings – Appendix F Boil Test
3) GB 15763.3 Safety glazing materials in building Part 3: Laminated glass – Clause 7.8 Heat resistance test
4) ANSI Z97.1 Safety Glazing Materials Used in Buildings - Safety Performance Specifications and Methods of Test - Clause 5.3.2 - ( 1 ) Boil Test

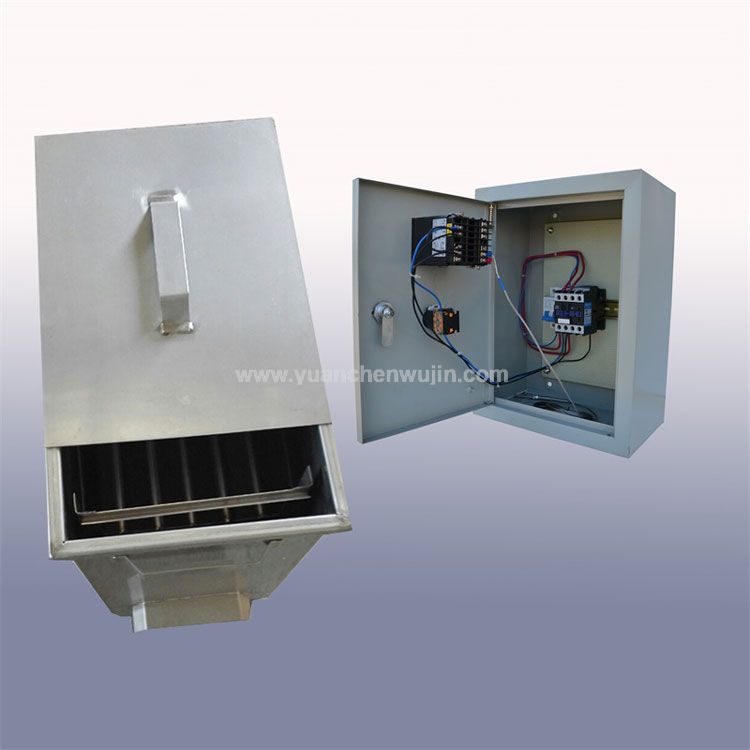

High Temperature Test Oven

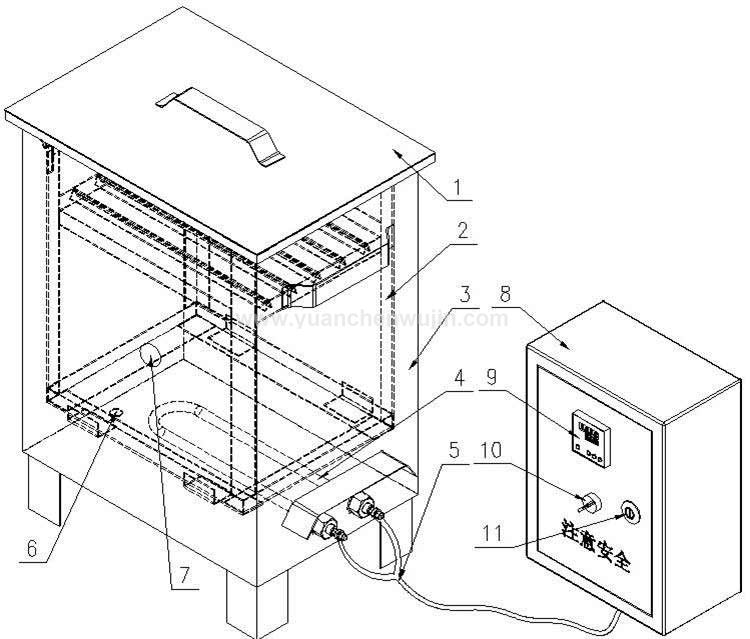

1: cover 2: sample holder 3: cabinet 4: heating rod 5: Power cord

6: drain hole 7: Probe 8: Power distribution cabinet 9: Temperature control table

10: power switch 11: Distribution cabinet lock

5) Power: 220V 50Hz 3Kw (Customized)
6) Outside Size: 430mm*290mm*575 mm
7) Inner Size: 400mm*255mm*480mm
8) Rack: 340mm*235mm*350mm
9) At most 6 samples with 300mm*300mm

10) Determining the effect of exposure of safety glazing materials to temperature and humidity condition by boiling

11) Specimens are immerse in hot water and boiling water for specified period of time and inspect bubbles and other defects

12) The apparatus include two water baths, each of sufficient size to hold the test specimen fully immersed vertically on edge for the duration test.

13) Three specimen of size 300mm*300mm manufacture in a manner identical with impact test specimens and of like thickness shall be tested.
14) These specimens may be cut from production samples of the size and thickness submitted for impact testing.
15) For heat strengthened or toughened laminated glass, test specimen may be cut from a similar original sheet of annealed laminated glass

16) Immerse the specimens vertically on edge in a bath of water maintained at a temperature of 66°C ± 3°C for 3 min
17) Quickly transfer the specimens to a bath of water maintain at boiling point. Immerse the specimens vertically on edge for 2 h
18) Remove the specimens and examine for the bubbles and others defects

High Temperature Test Oven

High Temperature Test Oven

High Temperature Test Oven

High Temperature Test Oven

High Temperature Test Oven

High Temperature Test Oven


High Temperature Test Oven

High Temperature Test Oven

Yuanchen supply all kinds of testing equipment for safety glazing materials and PV module

All equipments design and produce according standard
Ten Years Experience in Production and Processing
Stock Supply/Complete Set of Glass Testing Equipment
Major Suppliers of China's Market Safety Glass Testing Equipment
OEM/ODM/Development, Design and Processing of Various Testing Equipment

Main Equipment:

Ball Drop Test Device:
Steel Ball 2260g/1040g/508g/227g
Drop Height 1m-12m
Samples: 300mm/610mm

Pummel Test Device:
Hammer head diameter: 30mm
Impact Distance: Adjustable

Shot Bag Impact Testing Frame:
Shot Bag 45kg/46kg
Automatic Release
Electric Lifting
Pneumatic Clamping

Head Form Test Device
Head Weight: 10kg
Head Size: 500mm*932mm
Impact height: < 1.5m
Samples size: 1100mm*500mm
Felt hat: 90g/89mm/3mm
Frame size: 1400mm*666mm*320mm

PV Load Test Equipment
Size: 6425mm*2000mm*3490mm
Samples: 1643mm*991mm~2009mm*1027mm (Customized)
Source: Sandbag
Load: 2400Pa 5400Pa 8100Pa 10000Pa (Customized)

Pneumatic Tyres Device
Weight 50 kg ± 0.1 kg
Tire pressure: 0.35Mpa ± 0.02Mpa
Type: 3.50-R8 4PR

Forced Entry Resistant Glass Test Device
Axe: 810mm Long
Axe Quality: 1.80kg
Sample size: 610mm*610mm

Insulating Glass Dew Point Meter
Operating temperature: -80°C ~ 100°C
Tube height: 300mm
Tube diameter: 50mm
Temperature resolution: 0.1 °C

Hard/Soft Pendulum Shock Test for Lifts
Hard pendulum shock device
Height: 330± 15mm
Max diameter: 240±10mm
Weight: 10kg ± 0.1kg
Material: according to ISO standard
Filler: 3.5mm + 0.25mm
Soft pendulum shock device
Height: 330mm ± 15mm
Maximum diameter: 240mm±15mm
Weight: 45kg ± 0.5kg
Material: leather bag
Filler: diameter 3.5mm ± 1mm lead sand

Laminated Glass High Temperature Test Oven
Power: 220V 50Hz 3Kw (Customized)
Outside Size: 400mm*255mm*480mm
Inside Size: 400mm*255mm*480mm
At most 6 samples with 300mm*300mm

Tempered Glass Flatness Measuring Instrument
Measurement of arcuate form and wave form of toughened glass
Resolution: 0.01mm
Measuring Span: 300mm-12000 mm ( Customized)

Impactor for building Glass and Metal Guardrail
Impact Steel ball
Weight: 1040g ± 10g
Dia: 63mm
Shot bag impactor
Weight: 45kg ± 0.1kg
Height: 330mm ± 13mm
Max diameter: 250mm
Material: leather bag filling lead shot
Leather thickness: 0.15mm
Lead sand size: 2.5mm

Hard and Soft Body Impactors for Opaque Wall Components
Soft body:
Weight: 50kg
Dia: 400mm
Conical canvas bag filles with 3mm glass sphere
Hard Body:
Steel Ball 0.5 kg/50mm
Steel Ball 1 kg/62.5mm
