Product Name:

Safety glazing materials ball test machine

Model No.:

227/2,260g


Product Details

Mechanical Strength Test

Safety glazing materials ball test machine

227 g ball and 2,260 g ball Impact Test Frame

Related Standard:
ECE R-43
ISO 3537 Road vehicles — Safety glazing materials — Mechanical tests – Clause 6: 227 g ball test, Clause 7:2260 g ball test
GB 15763.3 Safety glazing materials in building Part 3:Laminated glass – Appendix B:Drop ball impact specimen support

Principle:
Determination of whether the safety glazing material has a certain minimum strength and cohesion under impact from a small hard object

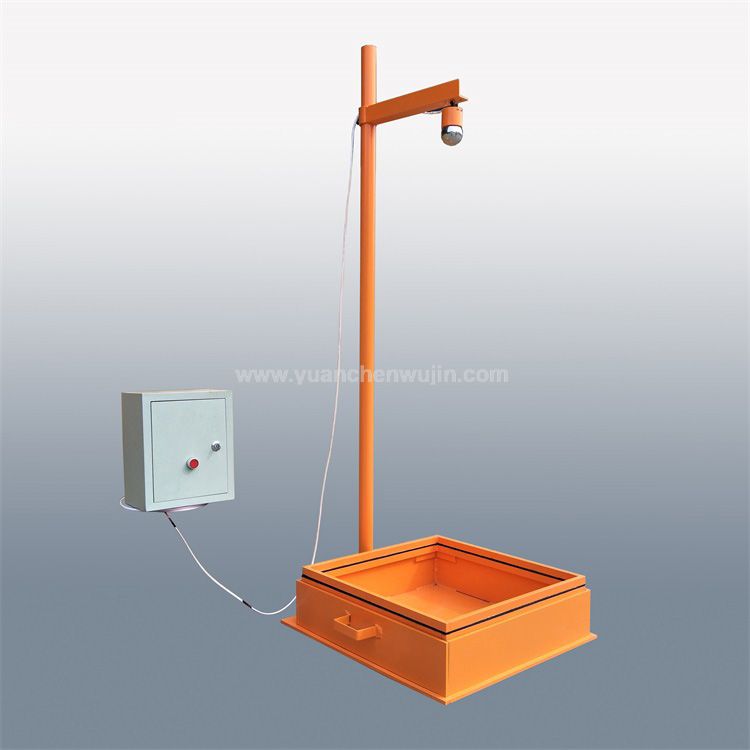

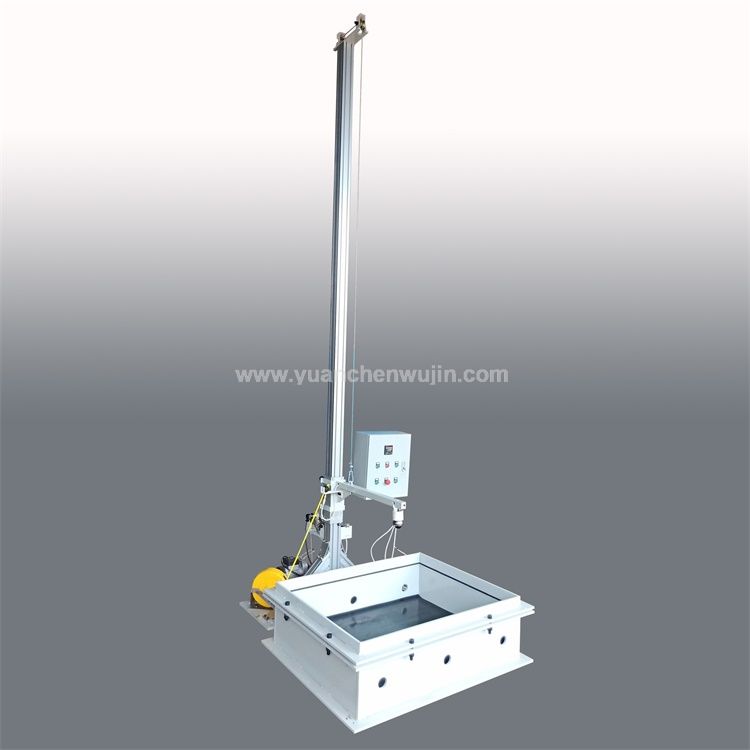

Safety glazing materials ball test machine

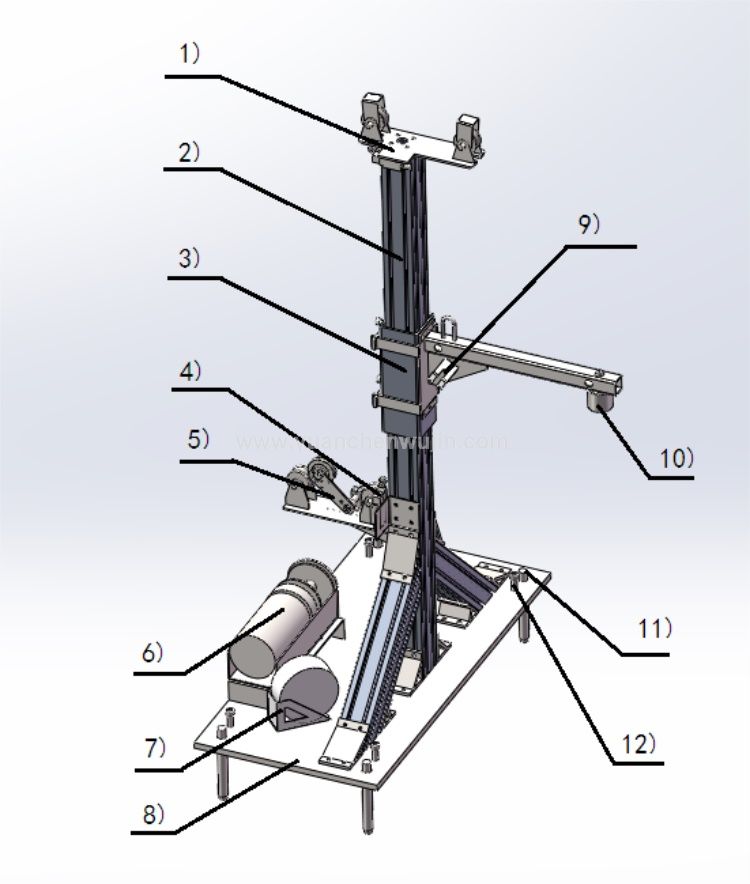

1) Top pulley group 2) Column 3) Square tube 4) Lower limit switch

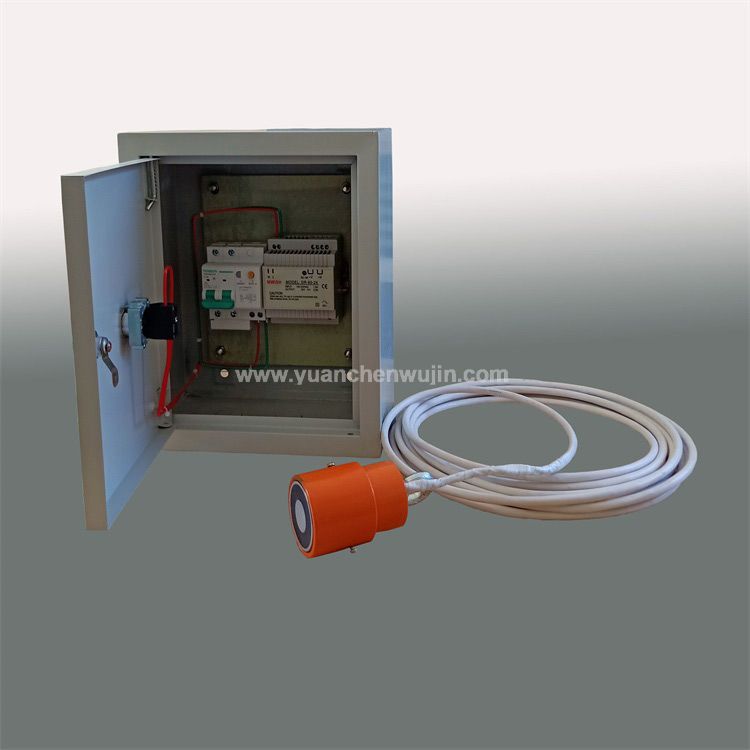

5) Encoder bracket 6) Motor 7) Wire take-up 8) Base 9) Release device

10) Electromagnet 11) Expansion bolt 12) Leveling screw

Safety glazing materials ball test machine


Mechanical Strength Test

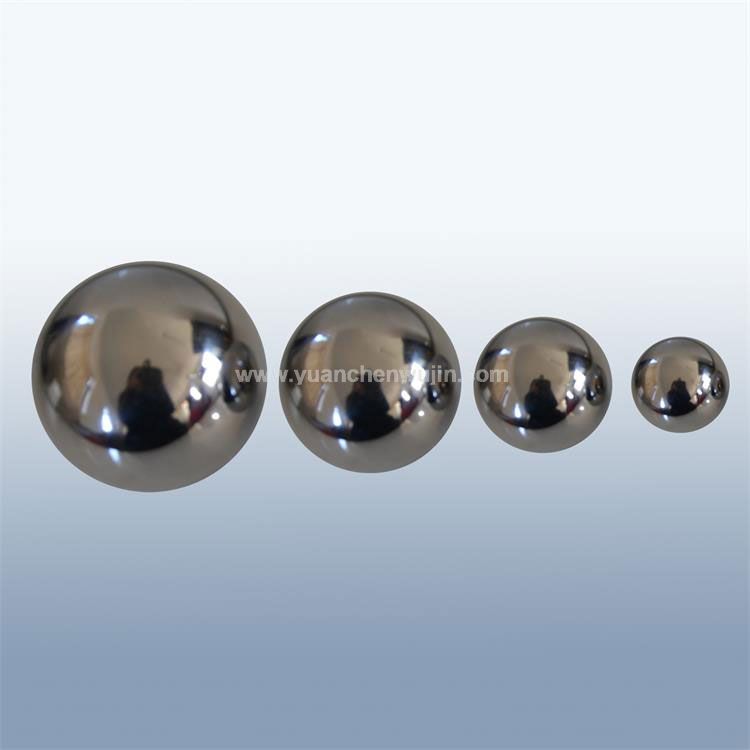

a)       2260g,  82.5mm
b)       227g,  38 mm
c)       1040g, 63.5 mm
d)       508g, 50 mm

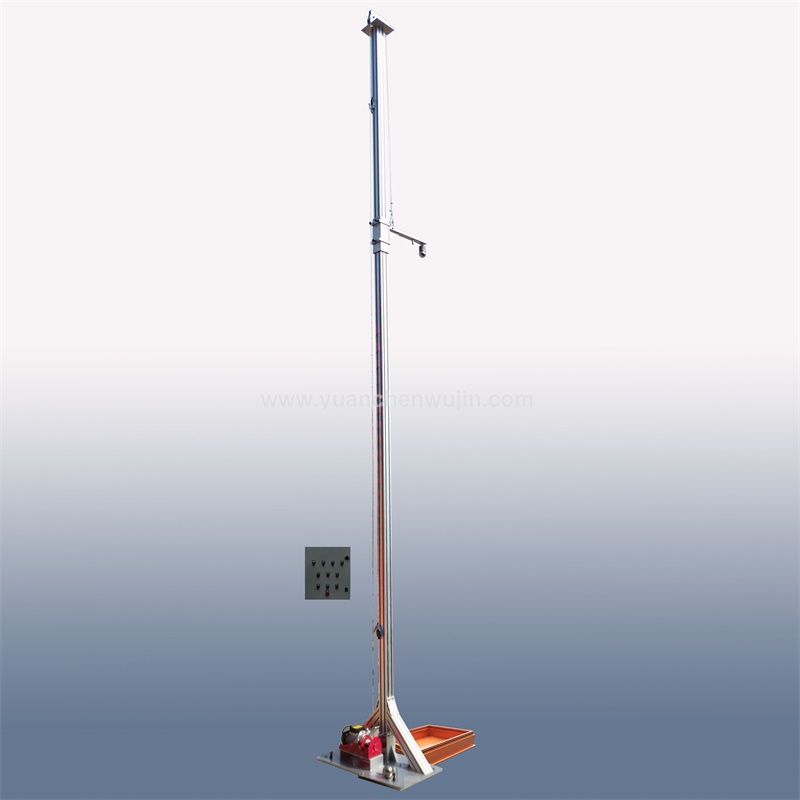

Frame Height: 1000mm, 3000mm, 5000mm, 12000mm, Customized
Automatic release and lift. Power: 220V 50Hz 580W

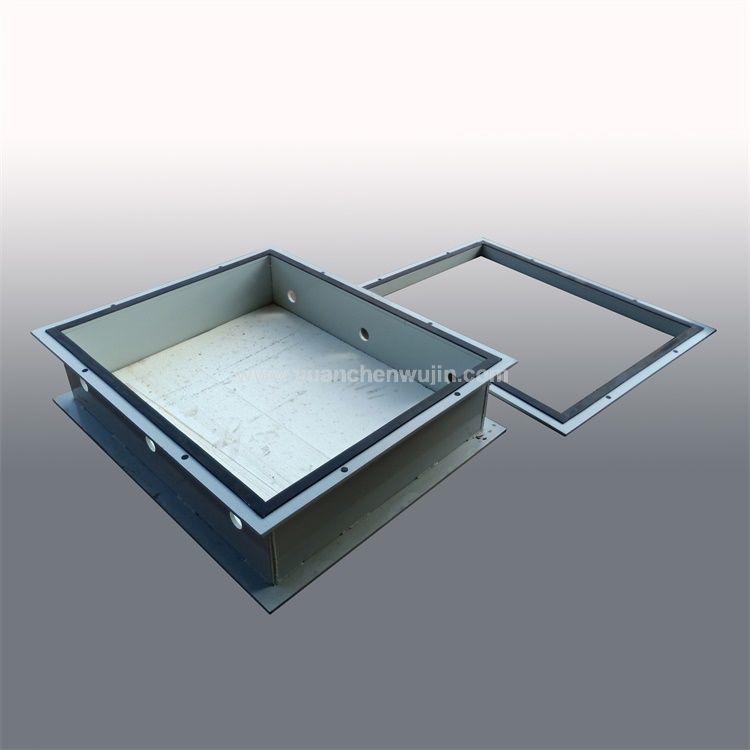

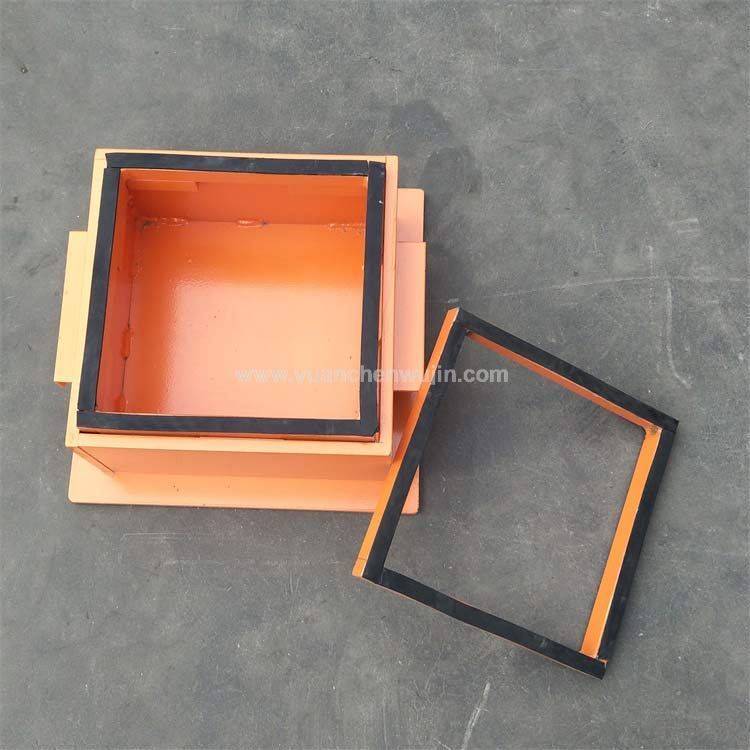

Supporting fixture:
a)        Support Size: 350mm*350mm  and 660mm*660mm (Customized)
b)        Frame width 15mm
c)        Steel box height 150mm
d)       Rubber Gasket: thickness 3mm, width 15mm, hardness shore A50
e)        Interposed sheet of rubber: thickness 3mm, hardness shore A50

Applied Test Pieces Size: 300mm*300mm   610mm* 610mm
