Product Name:

Electromagnet Adsorption and Release Device

Model No.:

Customized


Product Details

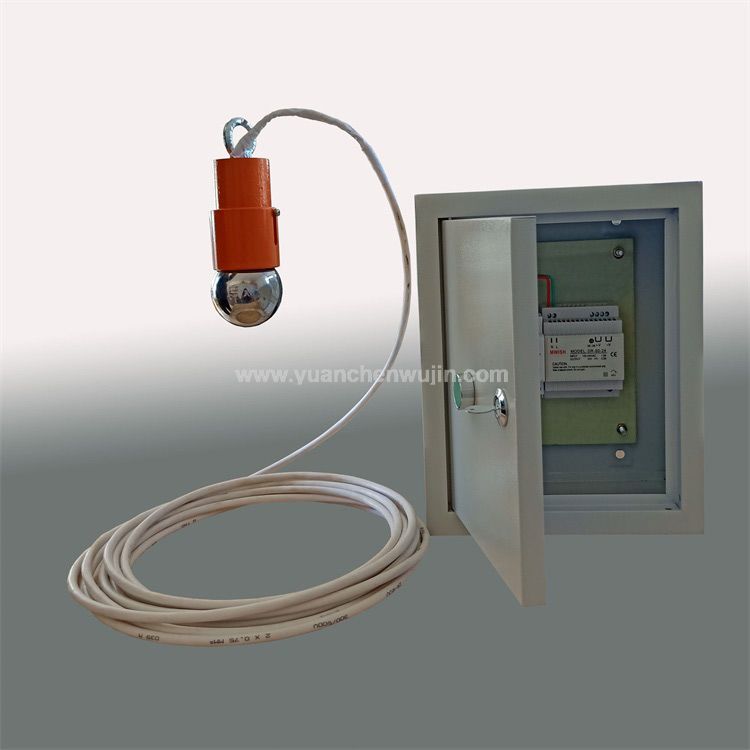

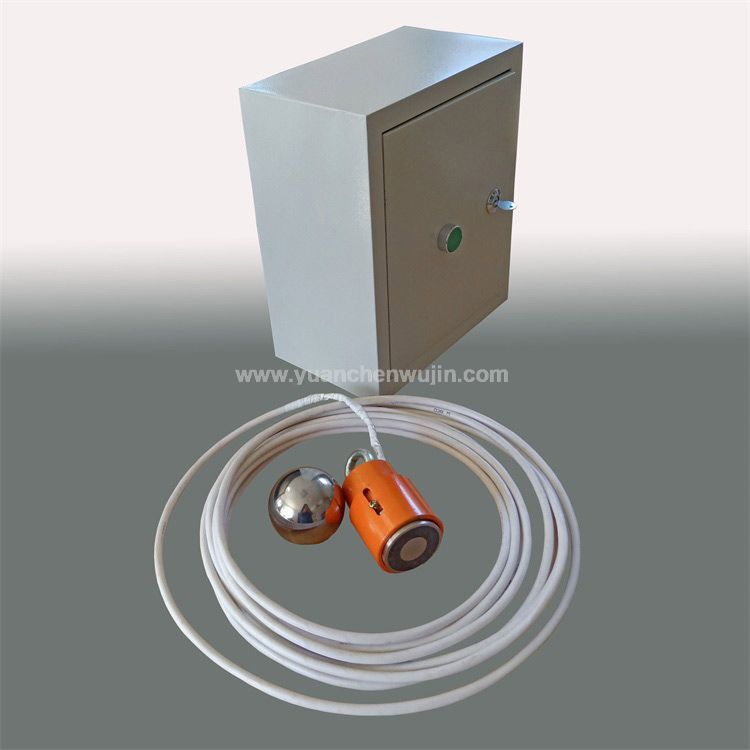

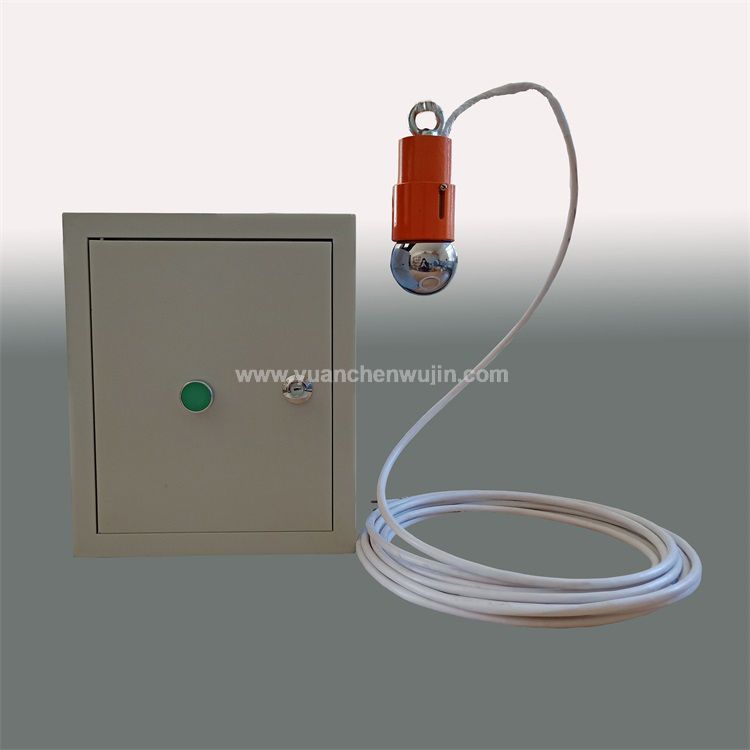

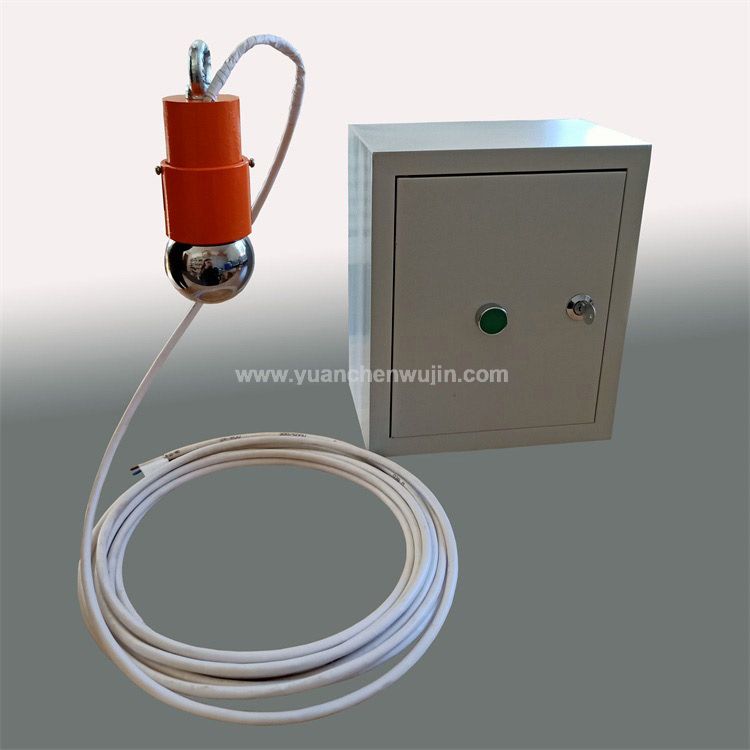

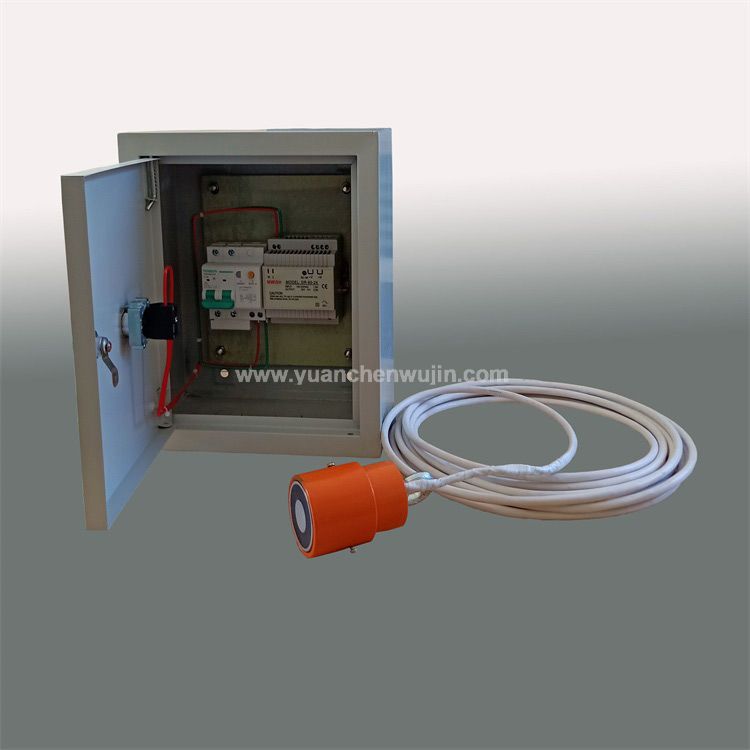

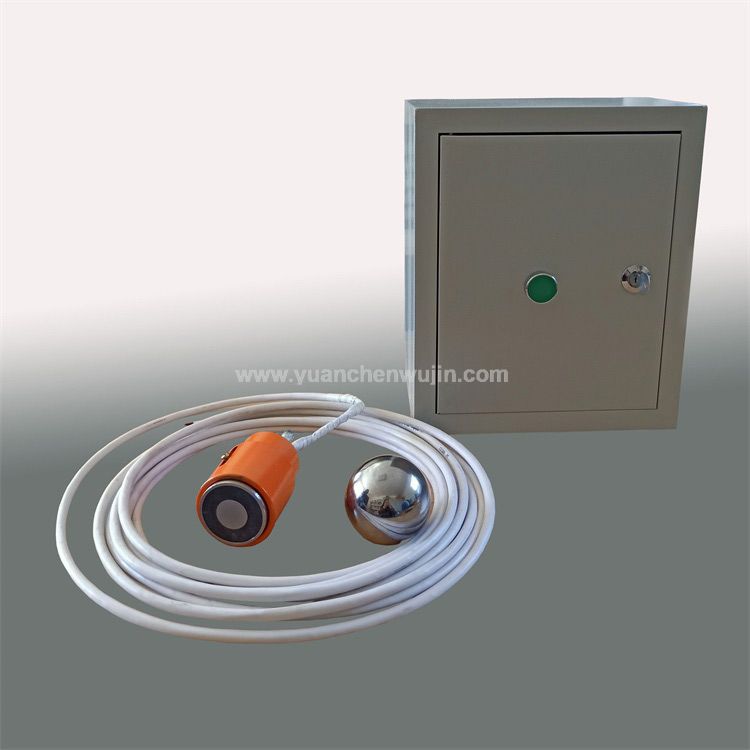

Electromagnet Adsorption and Release Device

Steel Ball Adsorption and Release Device for Ball Drop Test Equipment

Electromagnetic adsorption and release device for 227g steel ball and 2260g steel ball for impact test of tempered glass falling ball



Voltage: 220V 50HZ

Size of Control Cabinet: 250mm*300mm*1700mm

Applicable Steel Ball: 227g, 1040g, 2260g


Drop Ball Control System

Drop Ball Control System

Drop Ball Control System

Drop Ball Control System

Drop Ball Control System

Drop Ball Control System




We are a manufacturer of Safety Glass Testing Equipment. All testing equipment is manufactured according to relevant standards (GB, IS, AS ZNS, ASTM, ANSI, EN and ECE). Our glass impact testing equipment is applied in China, India, USA, Australia and EU etc.



If you have similar intentions in the near future, please let us know your requirements, or send us the standardsafety glass you are applying now. We can give you suggestions and quotations as your choice to purchase testing equipment. Thank you!



Attached is a catalog and brief description of the testing equipment. If you need more detailed instructions, please reply to the email, thank you!



No.

Name

ID

Description

Impact   Resistance

1

Shot Bag Impact   Frame

YC-PS-02

Automatic   Release/Electric Lifting/Pneumatic Clamping

2

YC-Z-1954

Manual   Release/Manual Lifting/Mechanical Clamping

3

Shot Bag

YC-S01-11

25 lbs

4

YC-S01-25

25kg

5

YC-S01-45

45Kg

6

YC-S01-46

46Kg

7

Pneumatic Tyres   Impactor

YC-PT-01

50kg/3.50-R8   4PR

8

Resistance   Measurement Ball

YC-R-76

Diameter 76mm   / Maximum Range 30N / Accuracy: ± 0.5%

9

1 m Ball Impact   Tester

YC-C-01

Manual   release/Maximum impact height 1 m/Include 610mm*610mm support

10

2 m Ball Impact   Tester

YC-C-02

Maximum impact   height 2 m/Include 610mm*610mm support

11

5 m Ball Impact   Tester

YC-C-05

Auto Lifts and   release/Maximum impact height 5 m/Include 300mm*300mm and 610mm*610mm support

12

12 m Ball Impact   Tester

YC-C-12

Auto Lifts and   release/Maximum impact height 12 m/Include 300mm*300mm and 610mm*610mm   support

13

Support for Ball   Tests

YC-FB-1000

610mm*610mm

14

Support for Ball   Tests

YC-FB-300

300mm*300mm

15

Ball Falling   Release Device

YC-ARD-01

Auto Release   Device

16

Support for   Impact Resistance

YC-C-MS

40mm*40mm/Cover   Glass for windows of mobile electronic devices

17

Hardened-steel   Ball

YC-GQ-227

227g/38mm

18

YC-GQ-508

508g/50mm

19

YC-GQ-1040

1040g/63mm

20

YC-GQ-2260

2260g/82mm

21

Headform

YC-R01-ZJ10

10kg

22

Wool Felt for   Headform

YC-R01-ZJ89

Radius 89mm

23

Supporting   Fixture for Headform

YC-R02-ZJ10

1100mm*500mm

24

Pummel Machine

YC-Q-02

Auto Pummel /   Automatic Movement / Max Sample 300mm * 300mm / Max Gap 15mm

Tempered Glass   Flatness

25

Flatness Measure   Instrument

YC-C01-300

Measuring Span   300 mm

26

YC-C01-500

Measuring Span   500 mm

Static Load   Test

27

Static Load   Tester

YC-PV-2400

2400Pa/Sandbag/Samples:   1643mm*991mm~2009mm*1027mm (Customized)

High   Temperature Test

28

Two-step Method   of Boil Test Device

YC-B02-300

66°C for 3 min   and then 100°C for 2 h / 6 samples with 300mm

29

One-step Method   of Boil Test Device

YC-B01-300

Directly 100°C   for 2 h / 6 samples with 300mm

Optical   Measure

30

Optical-distortion   Test Instrument

YC-GJ-01

Include   Support Stand

31

Secondary-image-separation   Test Instrument

YC-BS-01

Target   Test/Include Support Stand

Appearance   Inspection

32

Hollow Glass   Observation Case

YC-OB-01


Radiation Test

33

Radiation   Resistance Testing Machine

YC-NFZ-02


Pendulum Shock   Test for Electric Lifts

34

Soft Pendulum   Shock Device

YC-S01-45

45Kg

35

Hard Pendulum   Shock Device

YC-S01-10

10Kg

Impact Test   for Doorsets

36

Soft Heavy Body   Impactor

YC-Z01-30

30Kg

Forced Entry   Resistant Glass Impact

37

Forced Entry   Resistant Glass Tester

YC-FZ-01


Impact Test of   Heavy Objects for Glass and Metal Guardrail for Building

38

Solid Steel Ball

YC-GQ-E1040

1040g/With   hook

39

Shot Bag   Impactor

YC-S01-45


Sound   Insulation Test

40

Sound Insulation   Testing Equipment

YC-SI-01

300mm×300mm

Others

41

Dew Point Meter

YC-L01-80

Dry Ice -80°C

42

Crush Pen

YC-J01

75g±0.3g/Radius   of Curvature of the Point 0.2mm ± 0.05 mm

43

Temperature and   Humidity Meter

YC-M-01

1°C/2%

44

Measure Tape

YC-TC-01

1mm

45

Calipers

YC-TC-02

0.02mm

46

Steel Ruler

YC-TC-03

1mm

47

Electronic   Balance

YC-EB-01

0.1g

48

Feeler Gauge

YC-FG-01

 0.01mm

Agency Business

Sales Agency of   Beijing Aoptek Science Co.,Ltd. for All testing equipment(ex-factory price)

49

 Measurement Instrument                   for Energy-saving Glass

GlasSmart 1000

Various of   parameters can be measured and calculated with Non Destructive and on-site

Complete the   measurement and calculation of all parameters of optical and thermal according   to relevant standards

T(λ), ρ(λ),   Tv, Pv, L* a* b*, Te, Pe, ae, g, gIR, SC, SHGC, LSG, Emissivity, Glass   Thickness, Spacer Thickness

Applicable to   owners, designers, construction, supervision units and quality inspection   agencies

50

U Value Meter   For IG

GlassMeter 800K

IG ThicknessLow-E Position, Emmisivity, U Value

Notes

Refer to   international standards (ISO/EN) and can be processed as required.

All delivery   time is subject to contract

Equipment prices   may vary due to raw material market reasons, subject to actual contract

All of the above   are ex-factory prices and do not include on-site installation and   commissioning costs / Negotiated if necessary
