Product Name:

Shot Bag Impact

Model No.:

45kg/46kg


Product Details

Shot Bag Impactor
Safety Glass Impact Testing Equipment


Related Standards:
1) AS/NZS 2208 Safety glazing materials in buildings – Appendix D: Impact Test
2) GB 15763.3 Safety glazing materials in building Part 3: Laminated glass – Appendix C: Test device for the impact performance of shot bag
3) ANSI Z97.1 Safety Glazing Materials Used in Buildings - Safety Performance Specifications and Methods of Test - Clause 5.1: Impact Test
4) ASTM : E2353 Standard Test Methods for Performance of Glazing in Permanent Railing Systems, Guards, and Balustrades – Clause 7.3 Shot Bag, Traction and Release System

5) Application:
          Determining the resistance of glazing materials to impact by the penetration method

Structure:
        Reinforced leather bag filled with chiller lead shot

Technical Data:
8) Weight: 45kg ± 0.1kg 46kg ± 0.1kg
9) Height: 330mm ± 13mm
10) Max diameter: 250mm
11) Lead sand size: 2.5mm
12) Thickness of leather: 1.5mm
Customized 25kg 48k

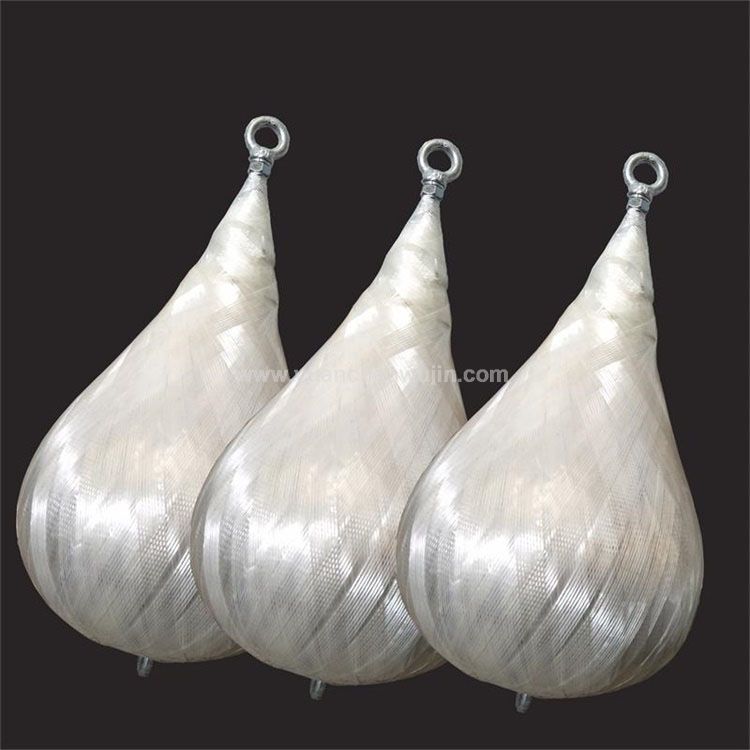

Impacting Shot Bag for Safety glazing materials in buildings

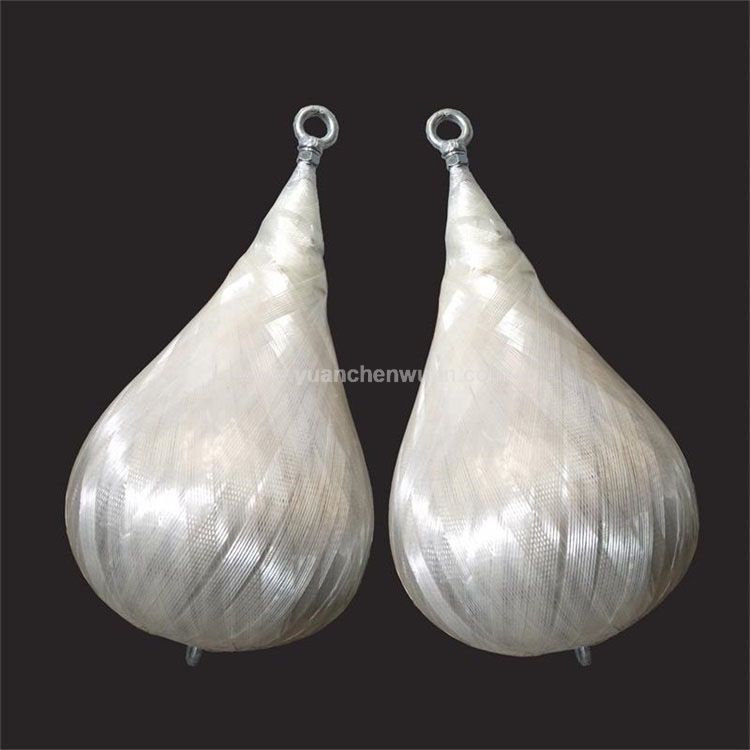

Impacting Shot Bag for Safety glazing materials in buildings

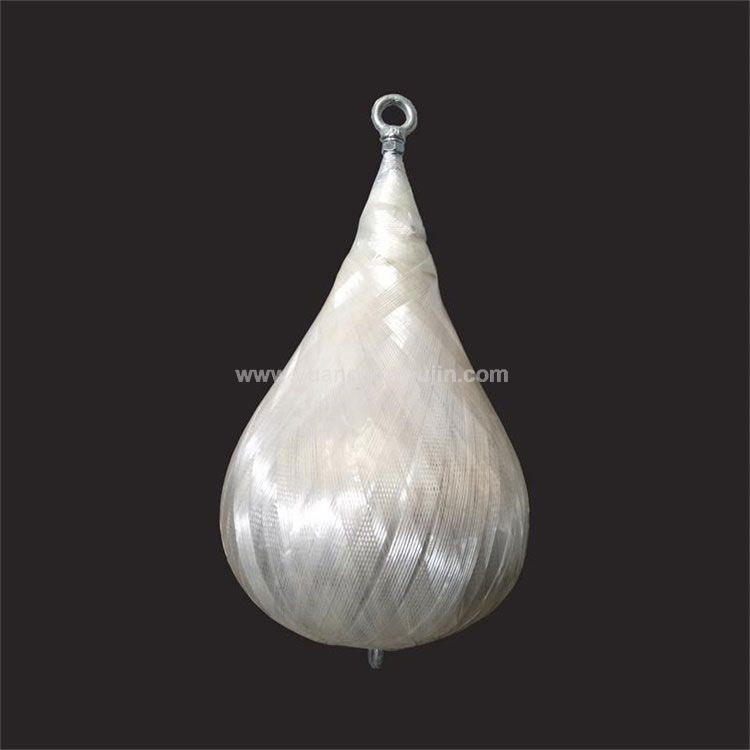

Impacting Shot Bag for Safety glazing materials in buildings

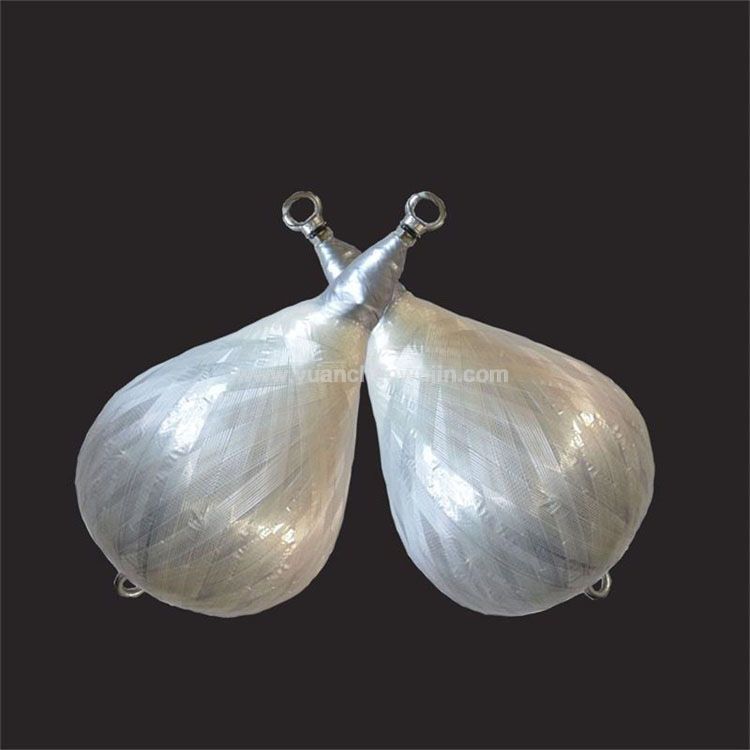

Impacting Shot Bag for Safety glazing materials in buildingsp

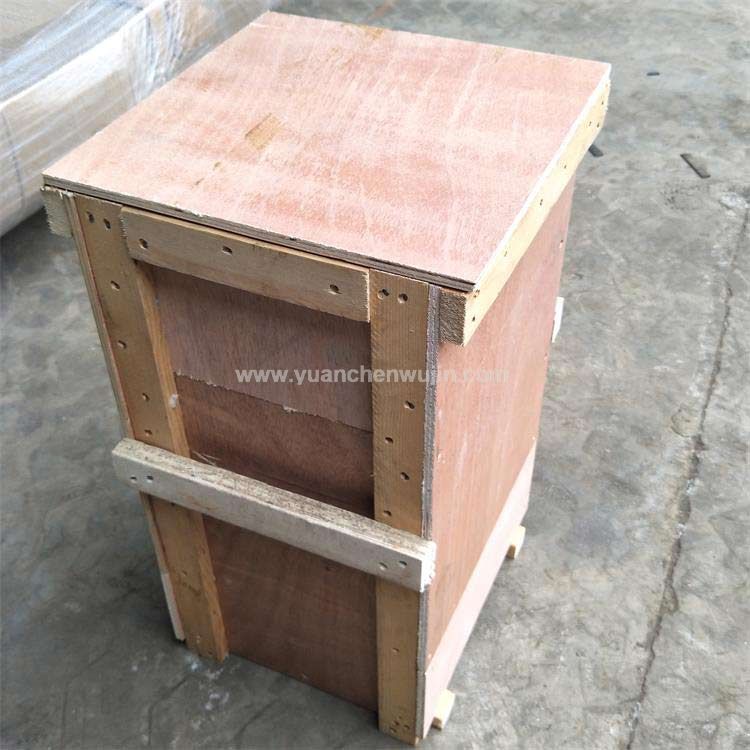

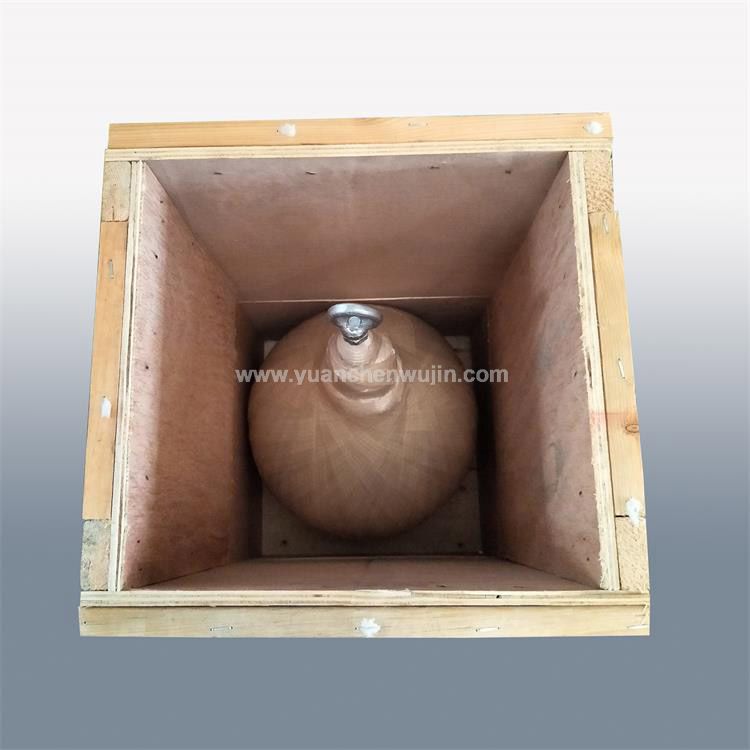

Packaging:

Plywood

350mm*310mm*550mm

52kg

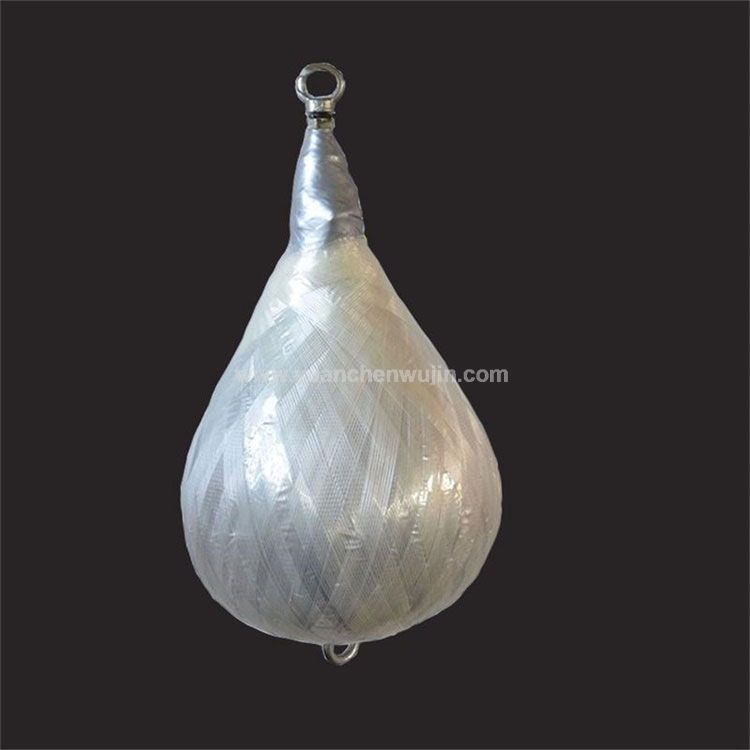

Impacting Shot Bag for Safety glazing materials in buildings

Impacting Shot Bag for Safety glazing materials in buildings
