Product Name:

Mechanical Strength Test Equipment

Model No.:

10kg


Product Details

Mechanical Strength Test Equipment for Car Door of Electric Lifts


Shock ring made of steel S 235 JR, according to EN 10025, and case made of steel E 295m according to EN 10025.


Related Standard:

GB 7588-2003 Safety rules for the construction and installation of electric lifts

EN 81-1 Safety rules for the construction and installation of lifts - Part 1: Electric lifts


Data:

Height:330mm±15mm

Diameter:240mm±10mm

Weight:10kg± 0.1kg

Filler Lead: 3.5mm + 0.25mm

Length (lower end of the hook to reference point of the shock device) shall be at least 1.5m

3mm Wire rope

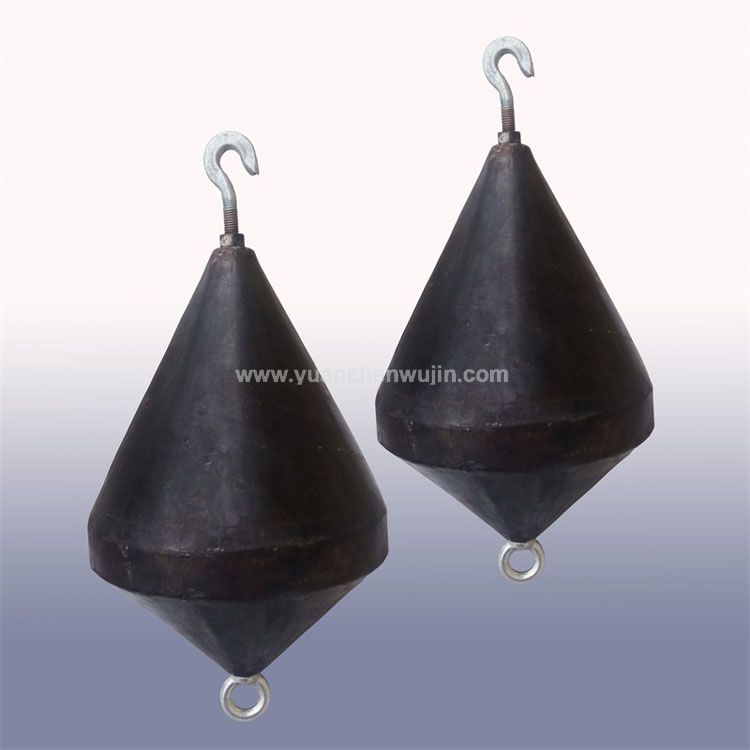

Mechanical Strength Test Equipment for Car Door of Electric Lifts

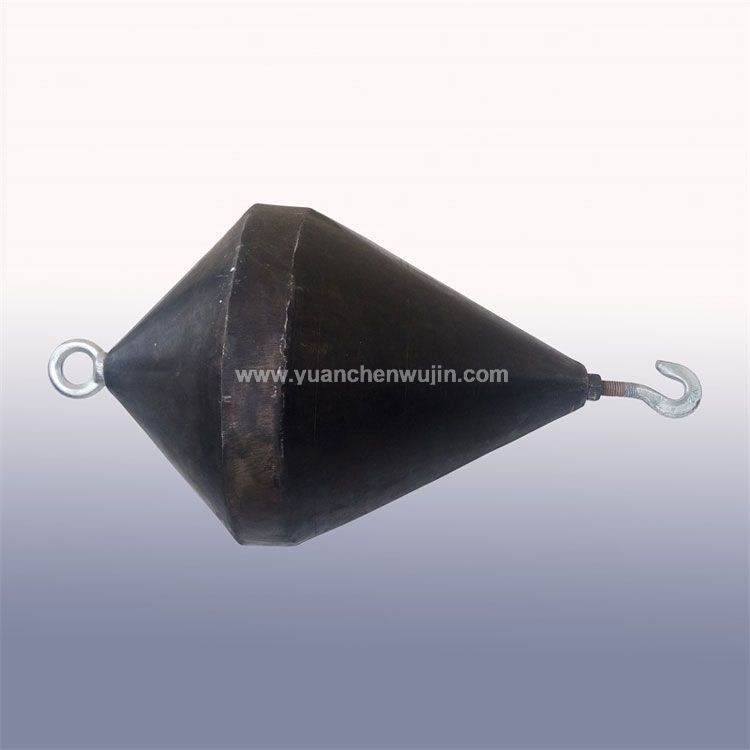

Mechanical Strength Test Equipment for Car Door of Electric Lifts

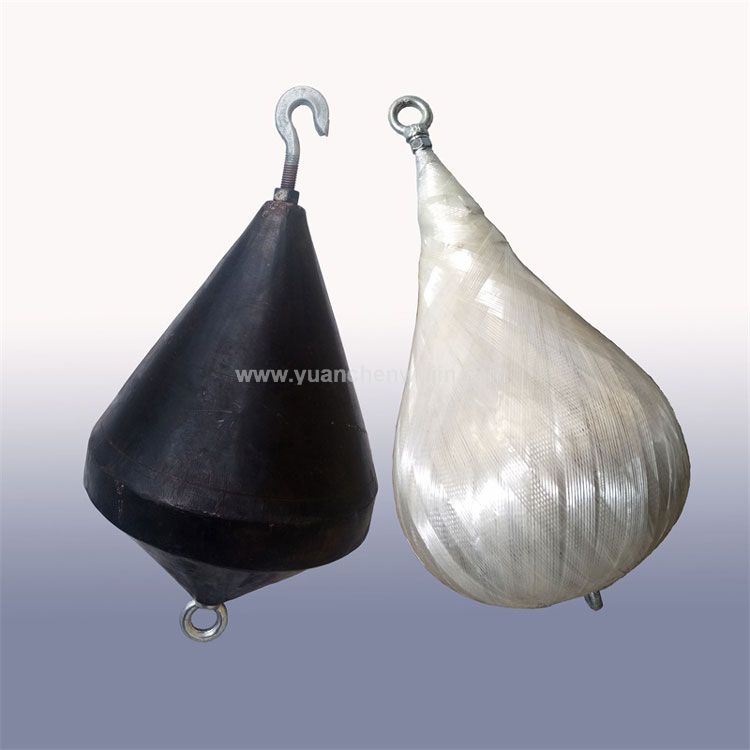

Mechanical Strength Test Equipment for Car Door of Electric Lifts

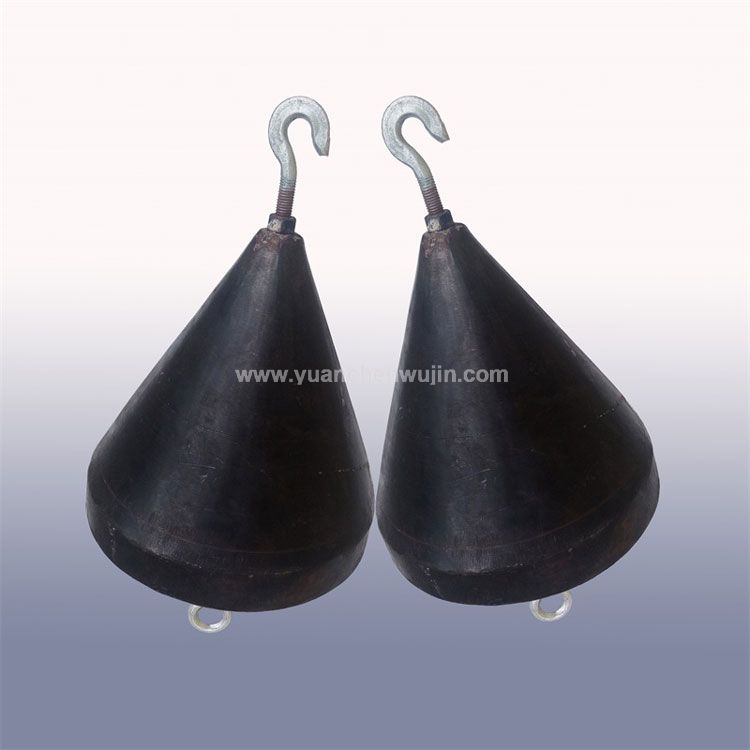

Mechanical Strength Test Equipment for Car Door of Electric Lifts

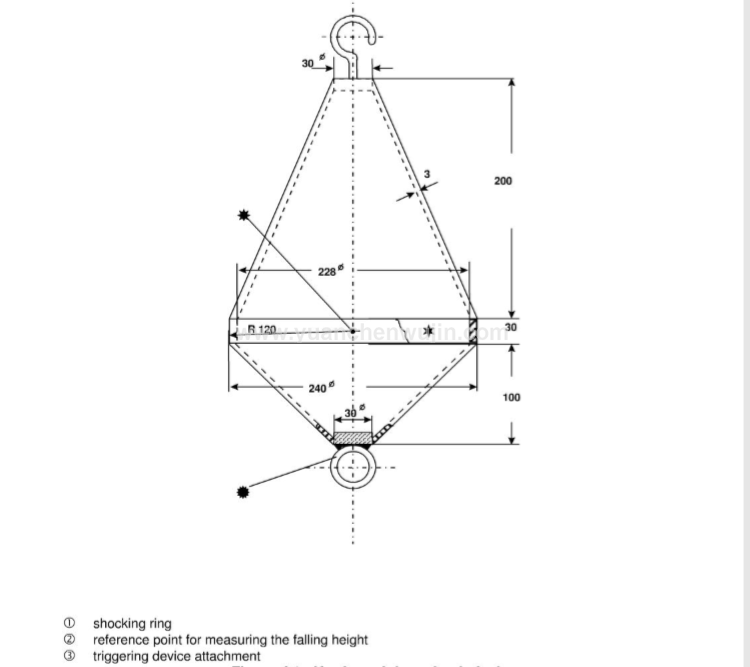

Schematic:

Mechanical Strength Test Equipment for Car Door of Electric Lifts
