Product Name:

Hard Pendulum Shock Device

Model No.:

10kg


Product Details

Hard Hard Pendulum Shock Device:


Shock ring made of steel S 235 JR, according to EN 10025, and case made of steel E 295m according to EN 10025.

Related Standard:
GB 7588-2003 Safety rules for the construction and installation of electric lifts
EN 81-1 Safety rules for the construction and installation of lifts - Part 1: Electric lifts
Data:

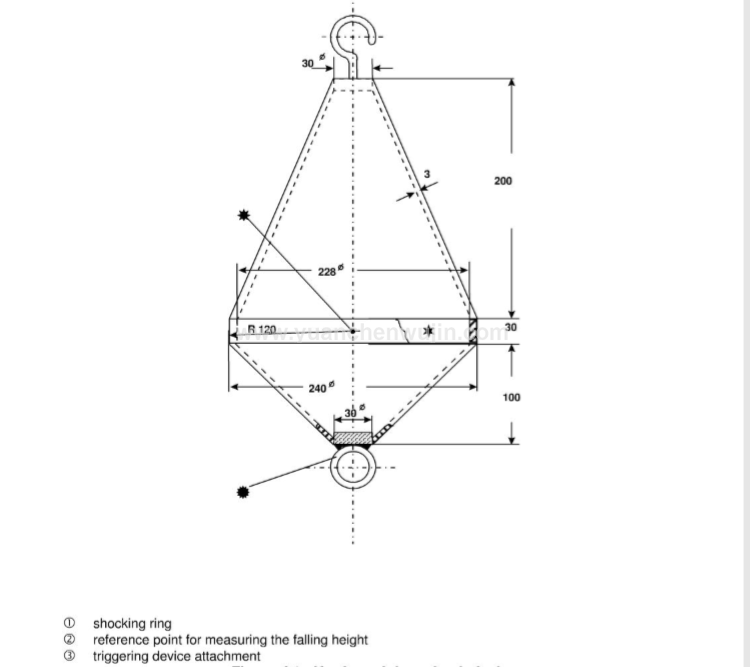

Height: 330mm ± 15mm
Diameter: 240mm ± 10mm
Weight: 10kg ± 0.1kg
Filler Lead: 3.5mm + 0.25mm
Length (lower end of the hook to reference point of the shock device) shall be at least 1.5m
3mm Wire rope
Pendulum  Shock Device for Electric Lifts Plane Glass Panel. According to EN 81-1  Safety rules for the construction and installation of lifts, Part 1:  Electric lifts. Height: 330mm ± 15mm, Diameter: 240mm ± 10mm, Weight:  10kg ± 0.1kg , Filler Lead: 3.5mm + 0.25mm, Length shall be at least 1.5m, 3mm Wire rope

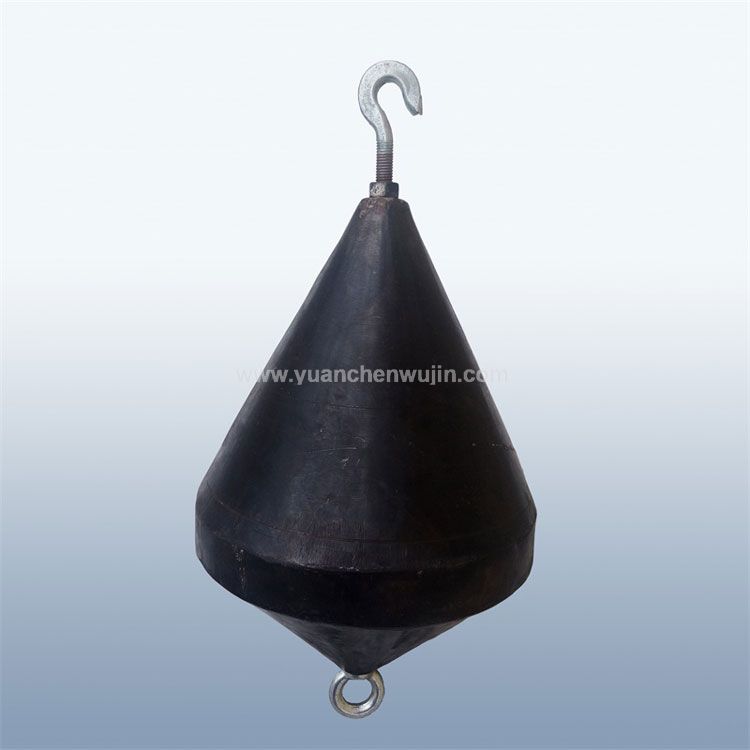

Elevator Hard Pendulum Shock Device

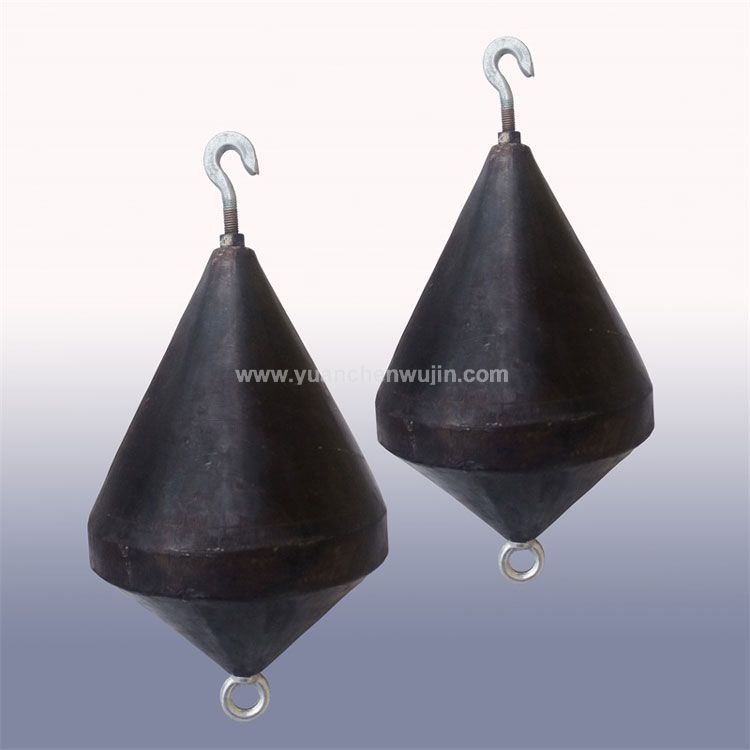

Elevator Hard Pendulum Shock Device

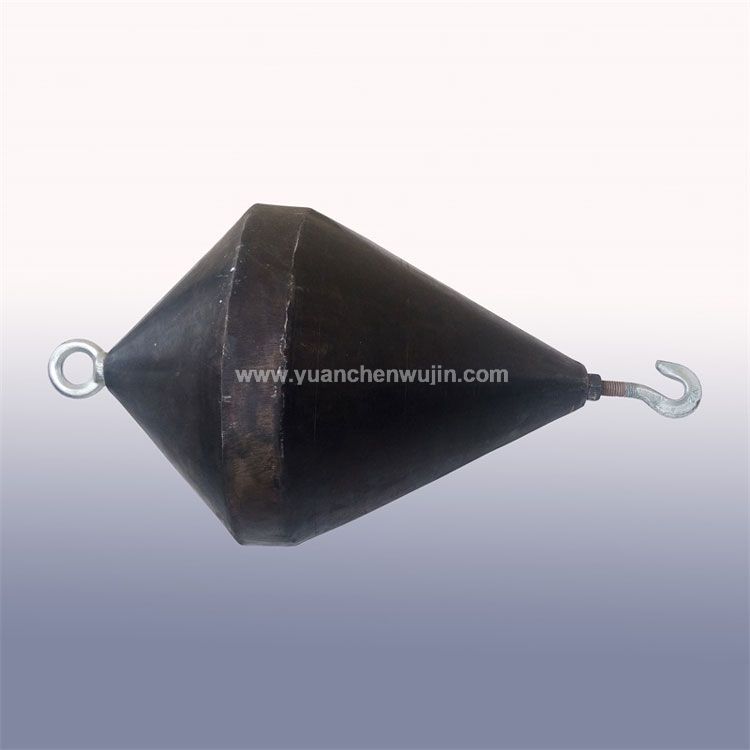

Elevator Hard Pendulum Shock Device

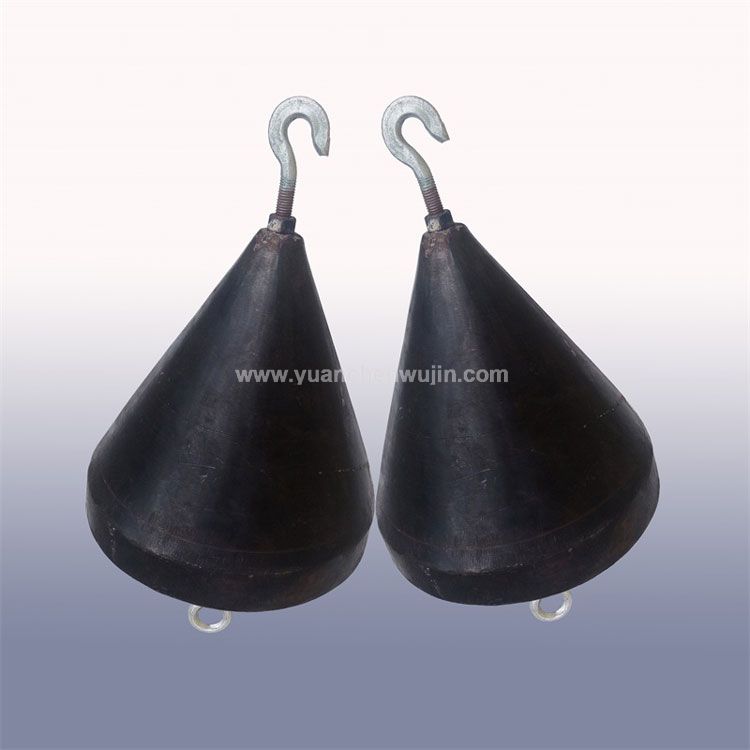

Elevator Hard Pendulum Shock Device

Hard Pendulum Shock Device

Various of Safety Glass Test Device:

Shot Bag Impactor

Headform Test Device

Ball Impact Test Frame

Shot Bag Impactor Frame

High Temperature Test Oven

Flatness Measuring Instrument

Insulating Glass Dew Point Meter

Steel Ball 2260g 1040g 227g 508g

Soft Pendulum Shock Device for Elevator

Hard Pendulum Shock Device for Elevator

Mechanical Load Test Equipment for PV Module

Test Frame of Forced Entry Resistant Glass and Impact Tool
