Product Name:

Portable Dew Point Meter

Model No.:


Product Details

Portable Dew Point Meter

Double Glazing Dew Point Measuring Instrument


Related Standard:

ISO 20492  Glass in buildings — Insulating glass

GB / T 11944   Insulating glass

Dew Point Meter

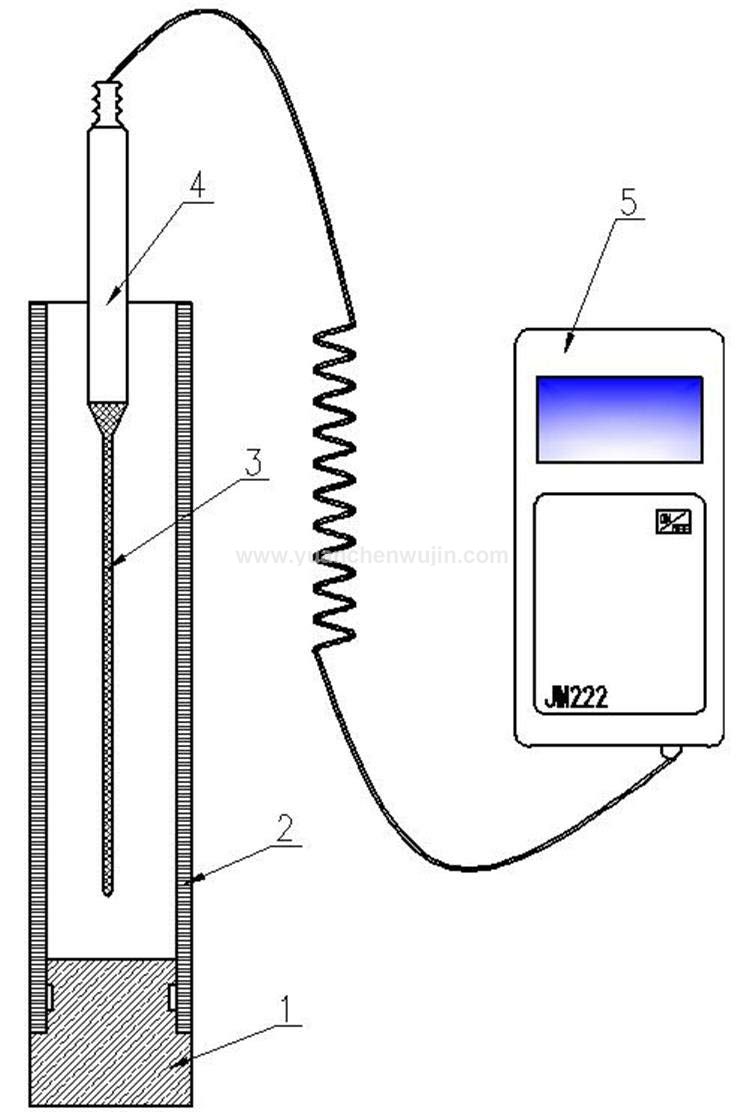

1, copper block; 2, measuring tube; 3, temperature probe; 4, temperature sensor; 5 digital display


Measuring probe operating temperature: -80 ~ 100

Tube height: 300mm

Tube diameter:  50mm

 Temperature resolution: 0.1

Samples size: 510mm × 360mm

Control box size: 470mm × 550mm × 700mm

Test environment: temperature: 23 ± 2 ; relative humidity: 30% to 75% RH

Operating voltage: AC220V 50Hz

Equipment power consumption: 1KW


Brief Introduction:

Insulating glass dew point instrument is mainly used to detect whether the inner surface of the hollow glass sample is condensed in the case of standard test conditions and methods.

Insulating glass dew point instrument main feature:

1. The use of semiconductor three refrigeration technology, the cooling temperature can be accurately set and control, cooling speed, the operation is very convenient, not only can be used in the laboratory, but also in the field to detect, do not need easy to use volatile ice, Easy to use and the use of low cost.

2. The probe and the refrigeration unit can be completely separated, convenient and practical and not subject to the direction of the specimen.

3. Integrated power, cooling, circulation and control system to achieve the whole process of automatic control, chassis and probe connected by the hose, the probe when the probe face contact with the specimen, the probe face can be any direction.

4. Using pt100 temperature probe, high precision, accurate data.

5. Temperature control using computer temperature control PID regulator technology, high precision temperature control, high temperature stability.

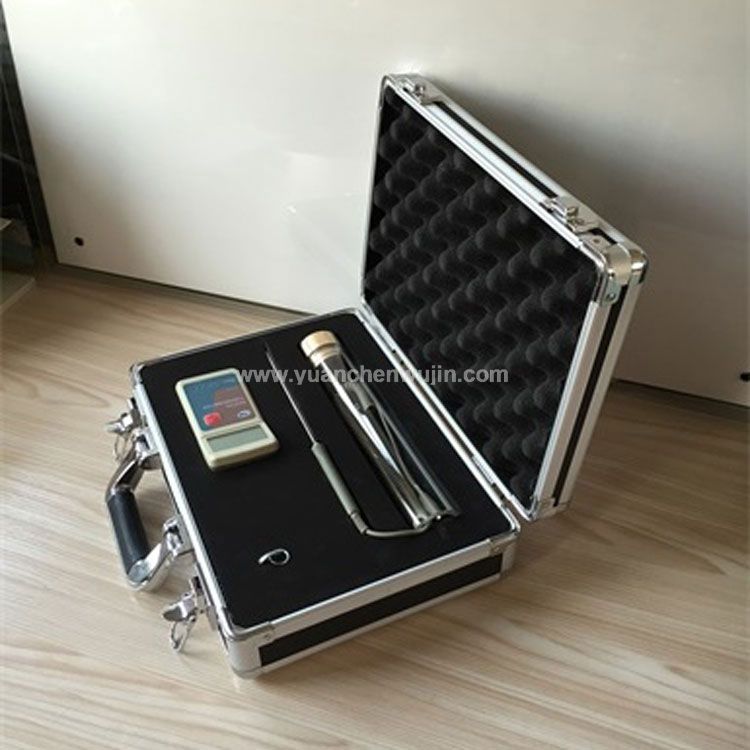

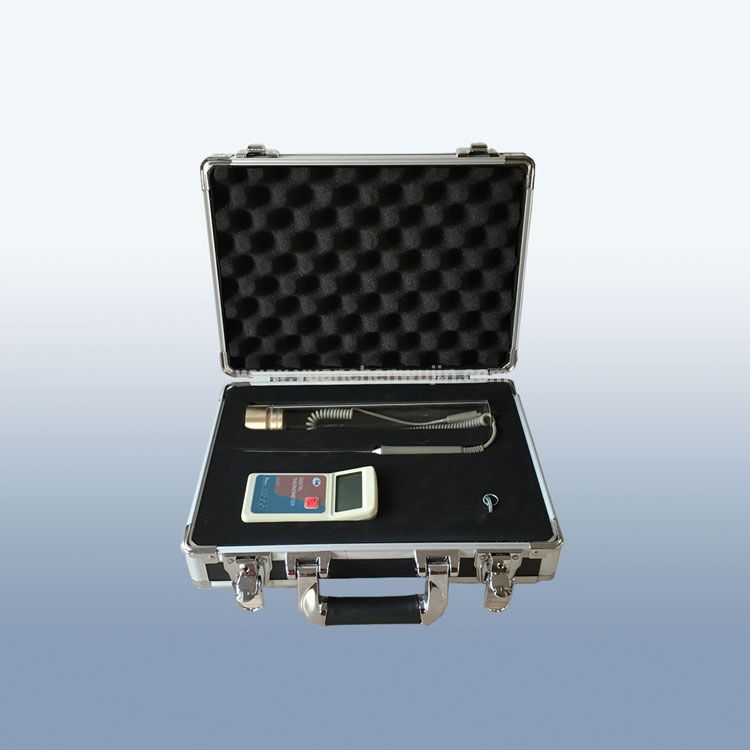

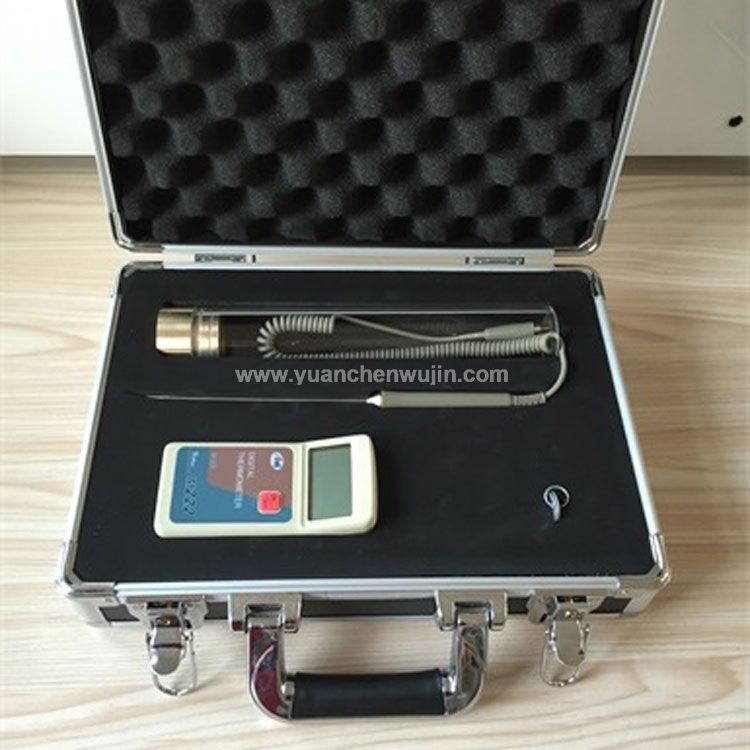

Dew Point Meter for Insulating Glass

Dew Point Meter

Dew Point Meter
