Product Name:

Safety Fence Processing Customization

Model No.:

Customized


Product Details

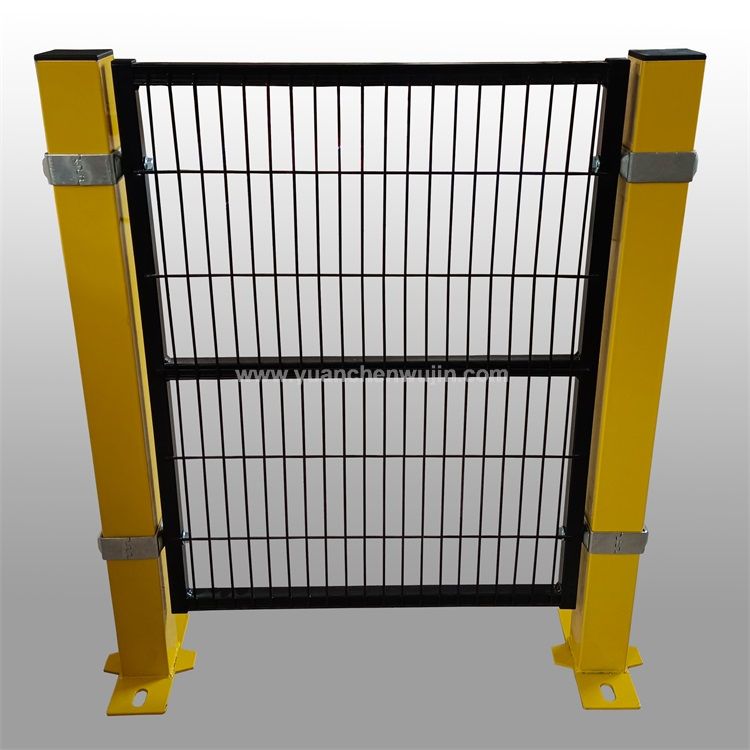

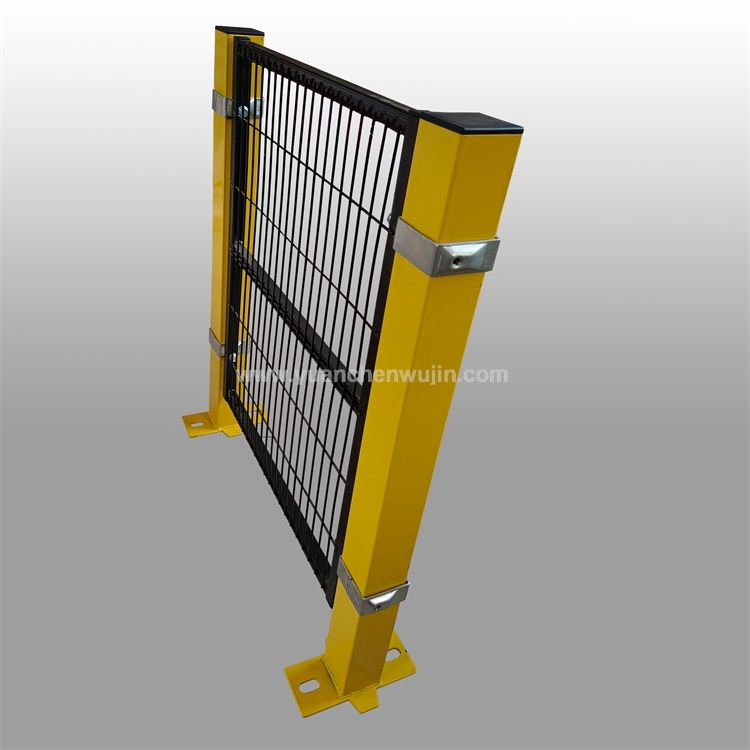

Security Fence Processing Customization

Safety fence for protection of machinery and equipment or isolation of warehouses

Professional Manufacturer of Nonstandard Metal Parts for safety fences and fence connectors


Specializing in the production and processing of safety fences, used for mechanical equipment or warehouse isolation. Customized processing according to customer requirements


Material: Q235

Dimensions: 1850mm x 1500mm (height x width)

Installation height: 2000mm x 1500mm

Ground clearance: 150mm

Mesh: 20mm x 100mm

Wire diameter: 3mm

Column size: 60mm x 60mm x 2000mm (length x width x height)

Surface: powder coated

Application: Safety fence for machinery and equipment

Various specifications of safety fence are available (unit: mm):

1850 x 1500, 1850 x 1200, 1850 x 1000, 1850 x 500, 1850 x 300, 1850 x 200

1350 x 1500, 1350 x 1200, 1350 x 1000, 1350 x 800, 1350x500, 1350x300

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

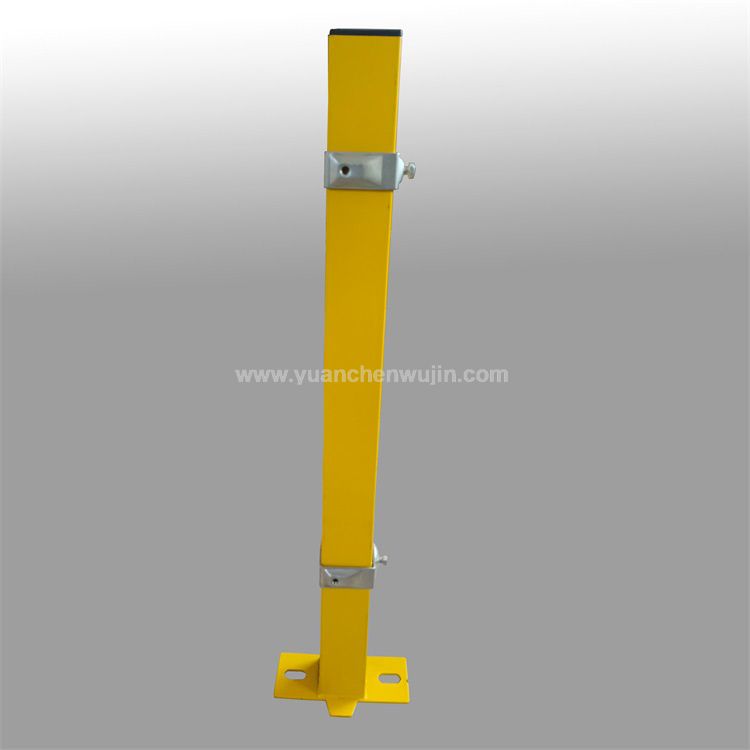

Supporting column specifications (unit: mm):

Column height 2000, length and width 60 x 60/40 x 60

Column height 1500, length and width 60 x 60/40 x 60

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

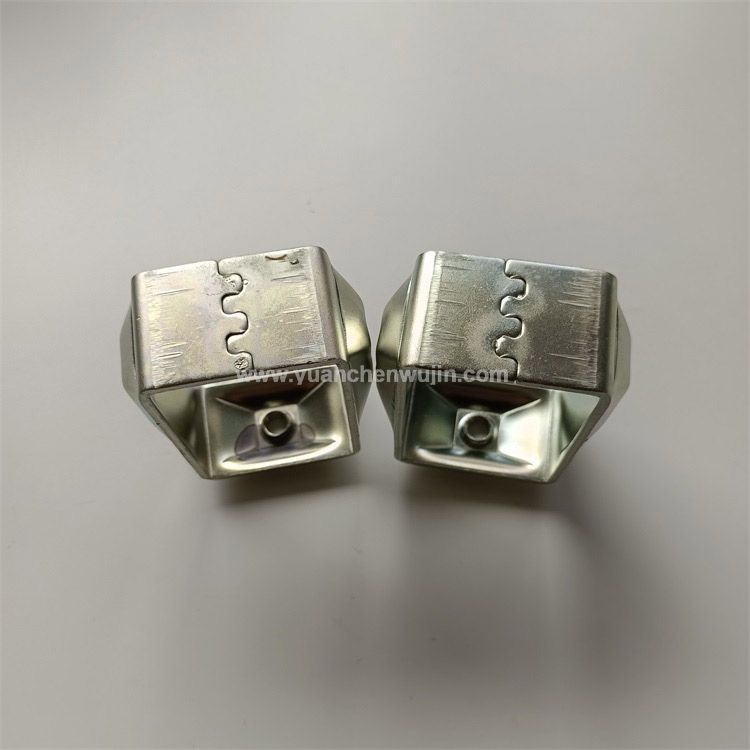

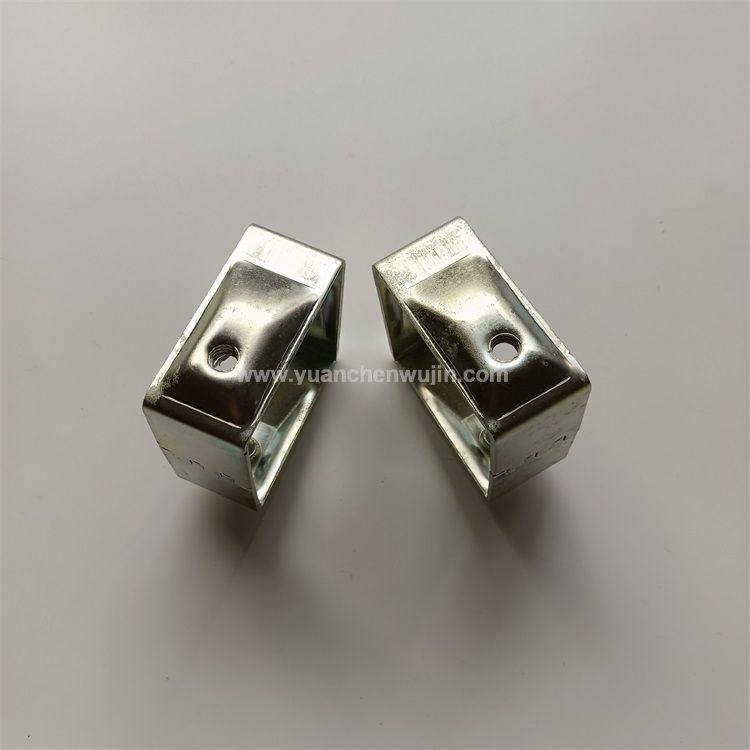

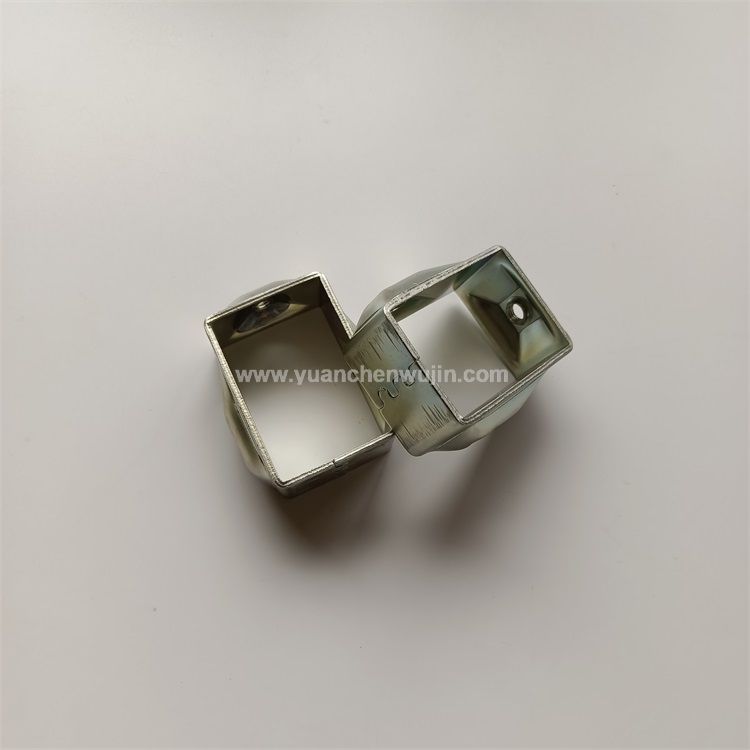

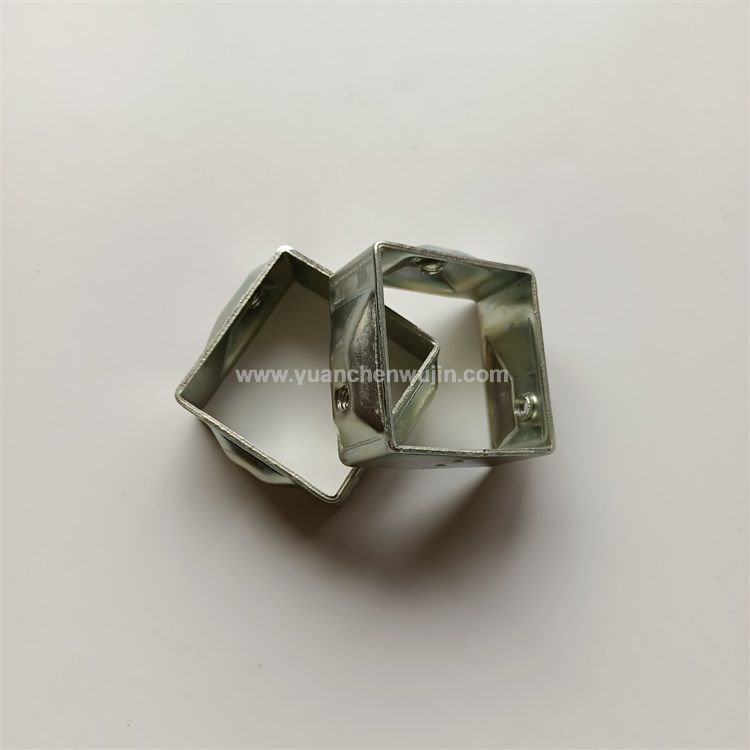

Fence connectors

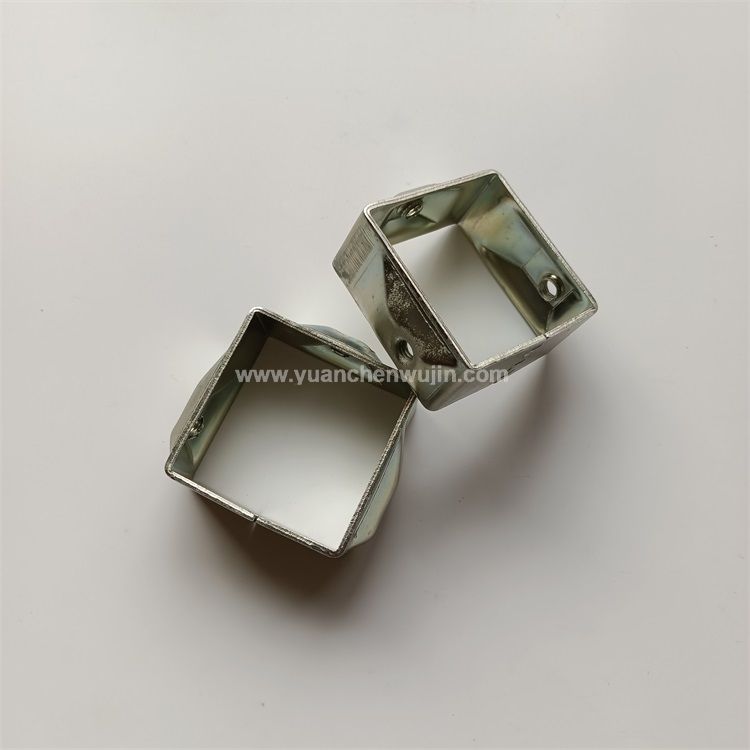

Fence Clamp

Material: carbon steel Q235

Thickness: 2mm

Size: 70mm*50mm/70mm*70mm

Tolerance: 0.3mm

Weight: 205g /210g

Process: blanking, stamping, deep drawing, bending, galvanizing

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

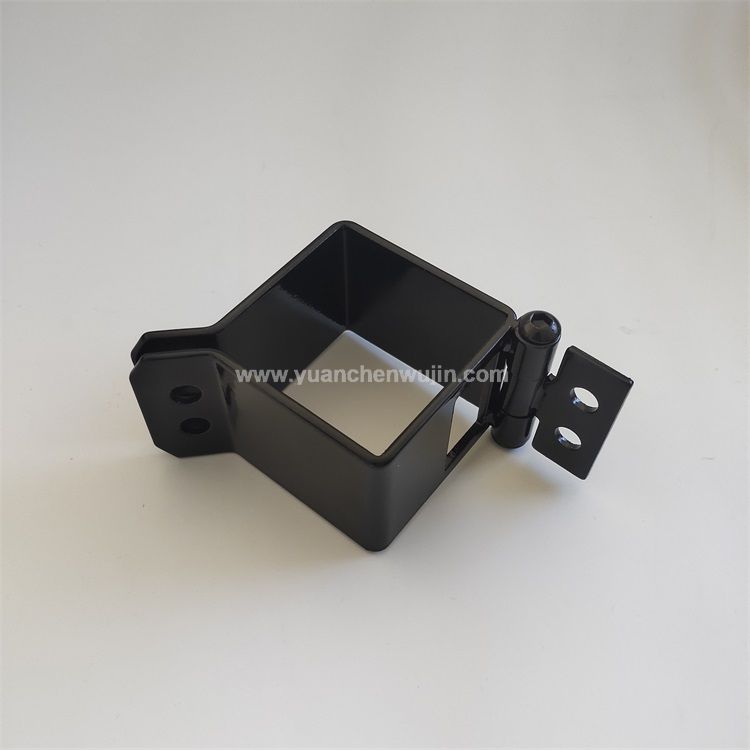

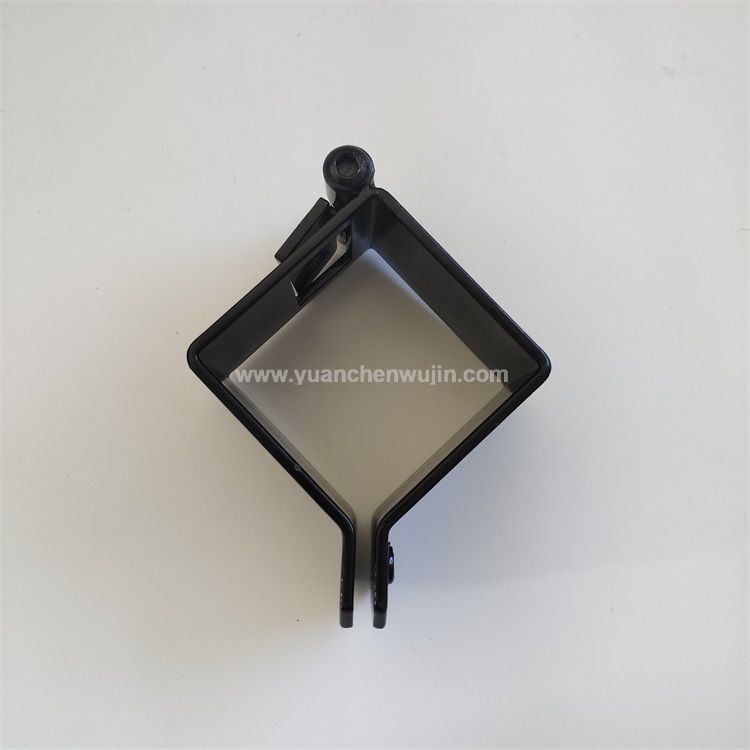

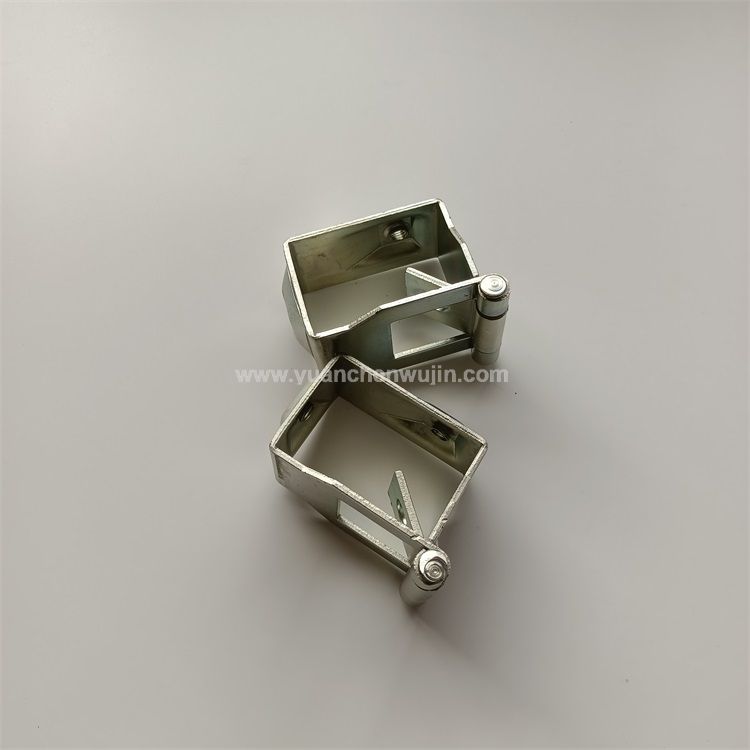

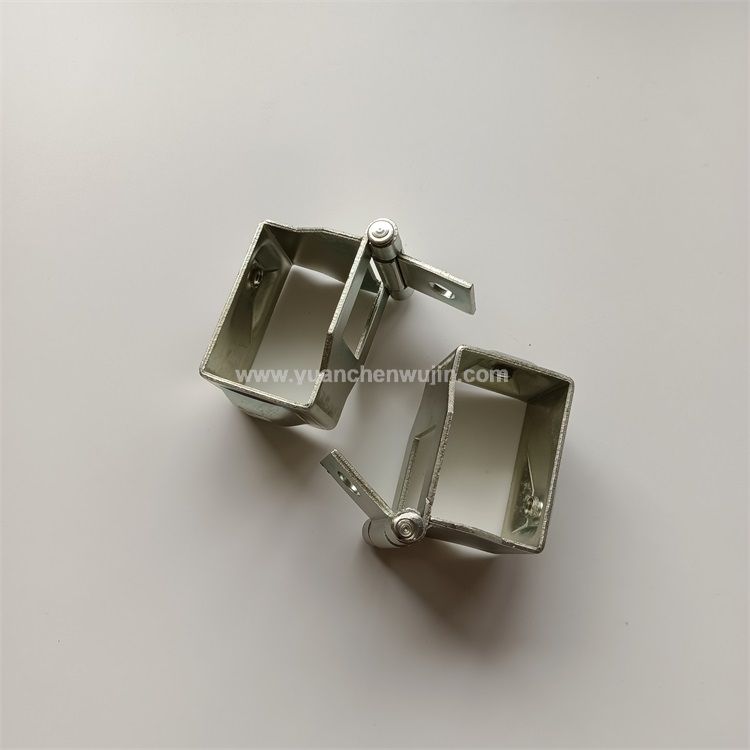

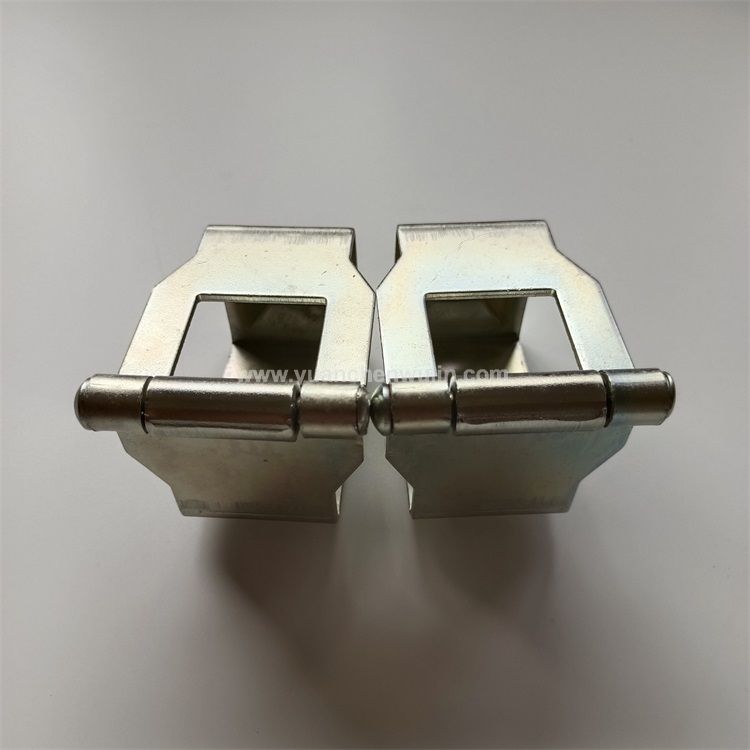

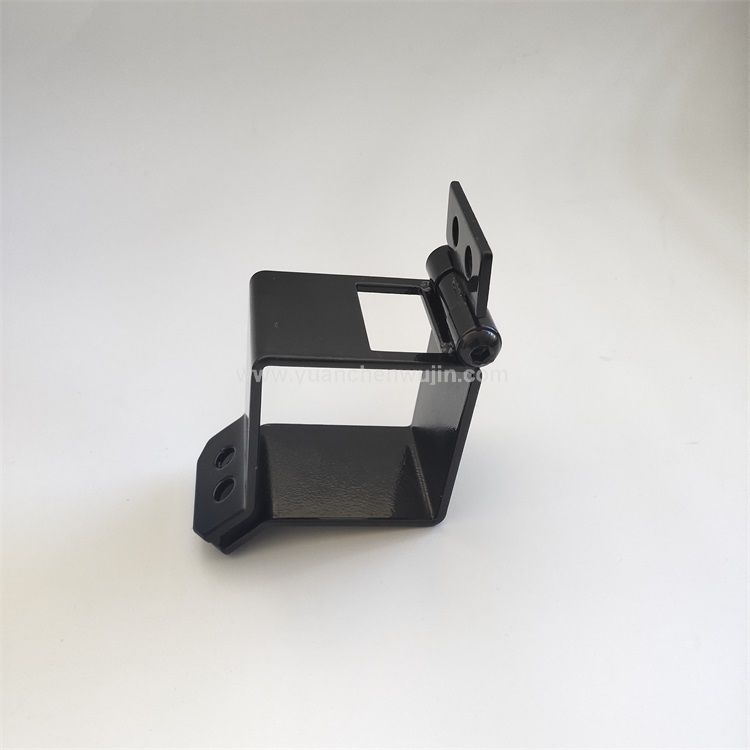

Name: Fence connector with hinge
Material: Q235
Thickness: 2.5mm
Dimensions: 50mm x70mm
Internal dimensions: 40mm x 60mm
Surface: electro-galvanized
Process: stamping and forming, welding
Purpose: fixed connection of safety fence

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

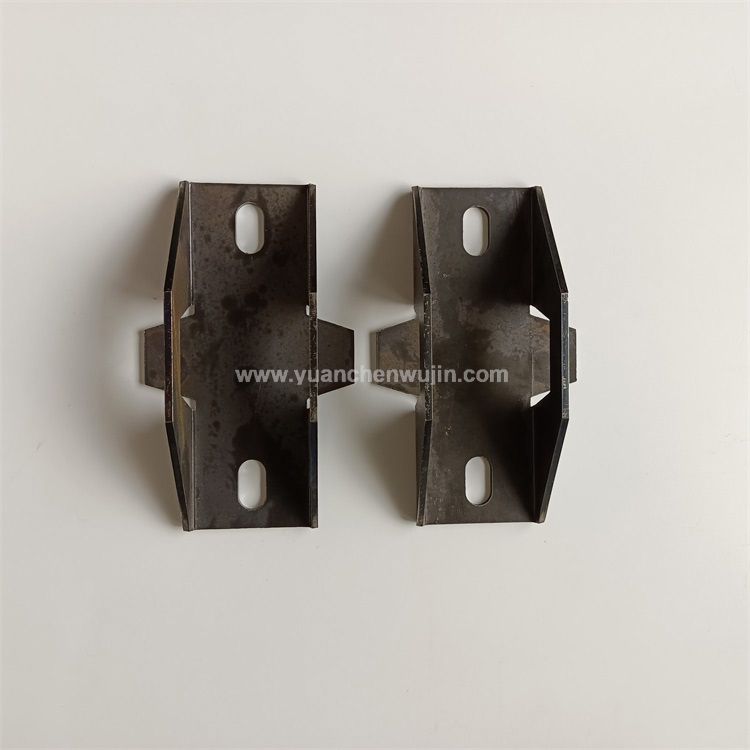

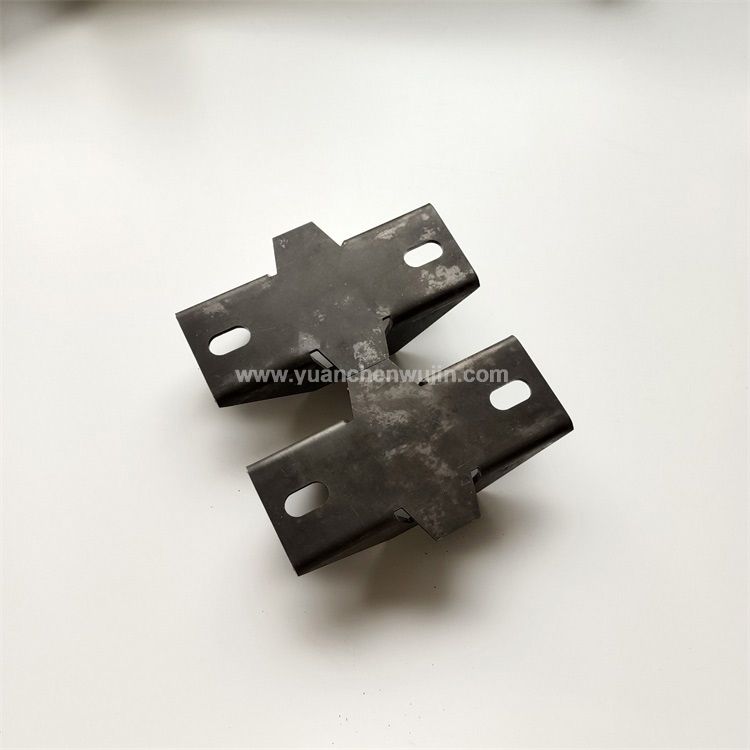

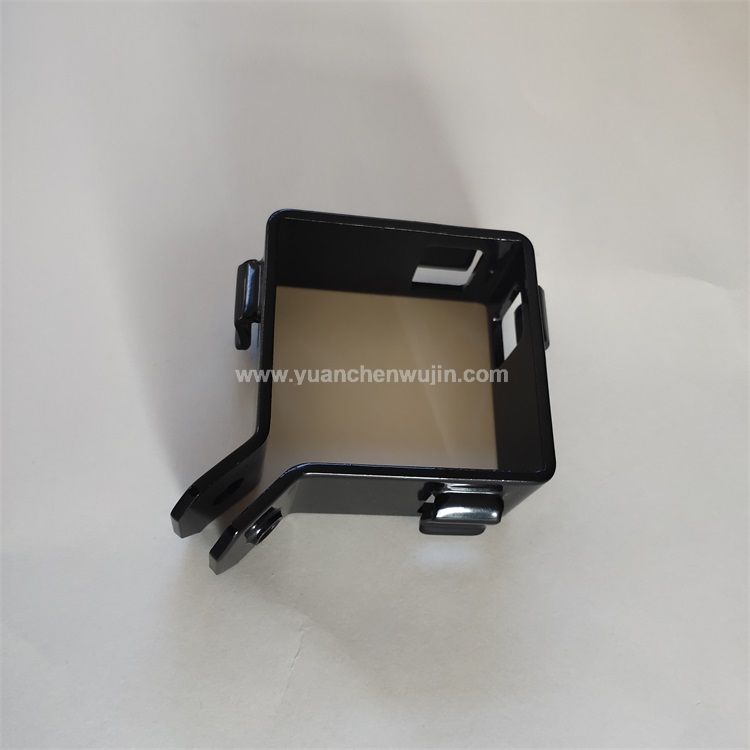

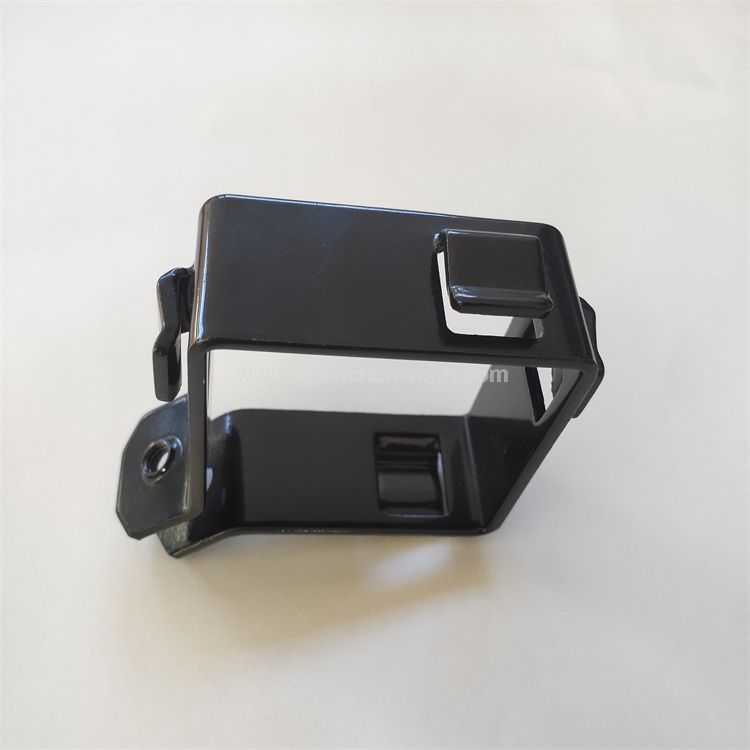

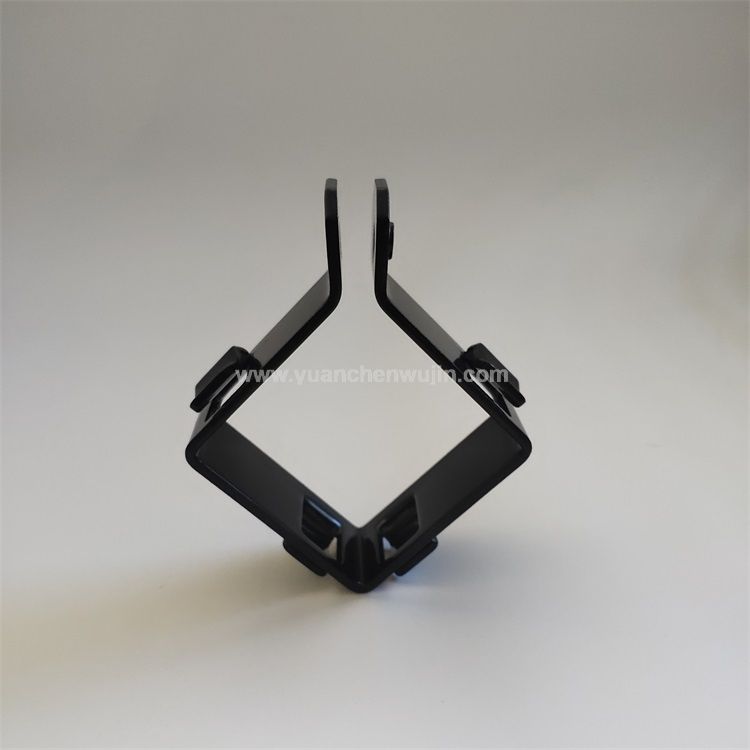

Name:Fence connector

Material: Q235

Thickness: 3 mm

Weight: 210.5g

Surface processing: powder coated

Process: blanking, stamping, deep drawing, bending

Application: fence connector

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

Name: Guardrail pipe clamp

Material: Q235

Surface: powder coated

Thickness: 3 mm

Weight: 376.5 g

Process: blanking, stamping, deep drawing, bending

Application: fence connector

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

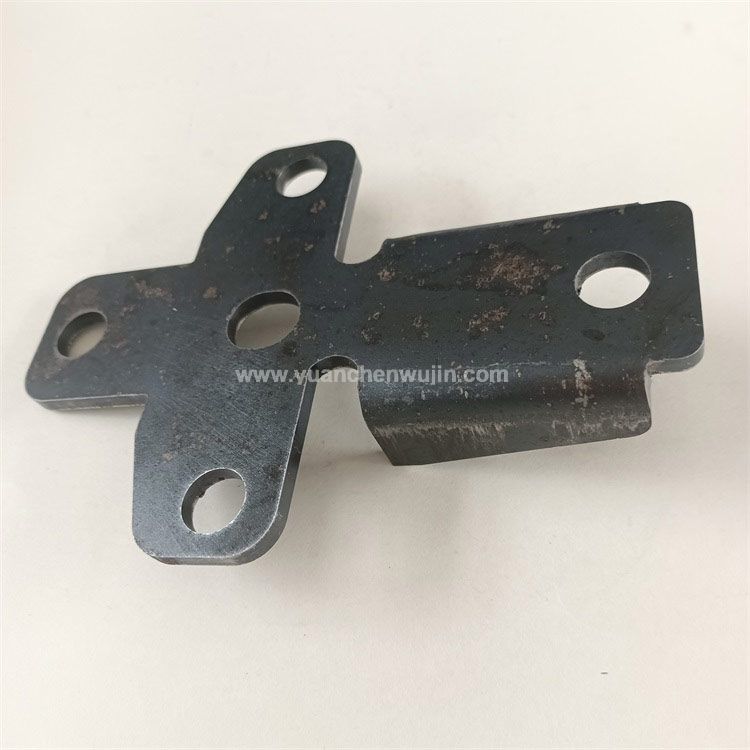

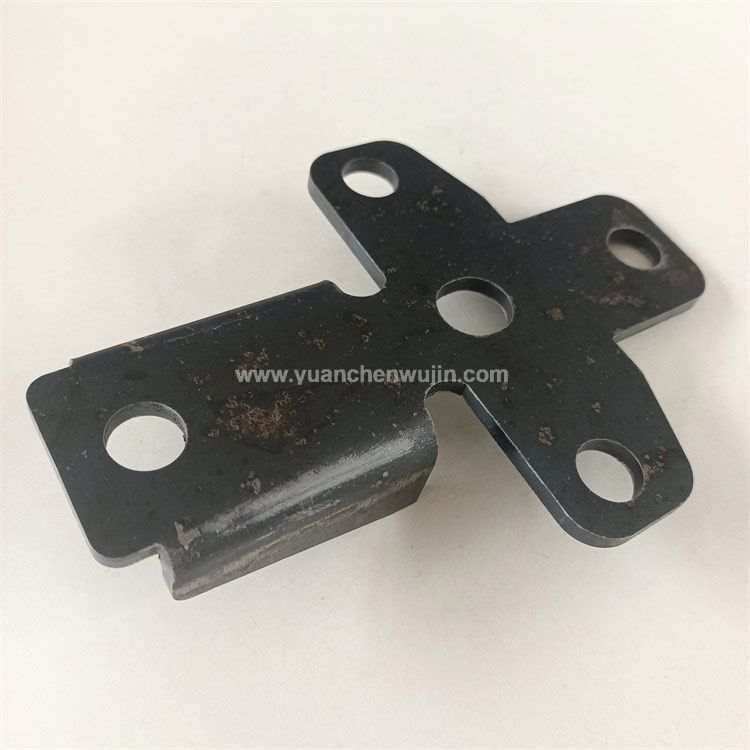

Name: Metal foot, fence clamp

Material: Q235

Thickness: 4 mm

Weight: 605 g

Dimensions: 180 mm x61 mm

Process: laser cutting, stamping

Application: metal fittings for fences

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

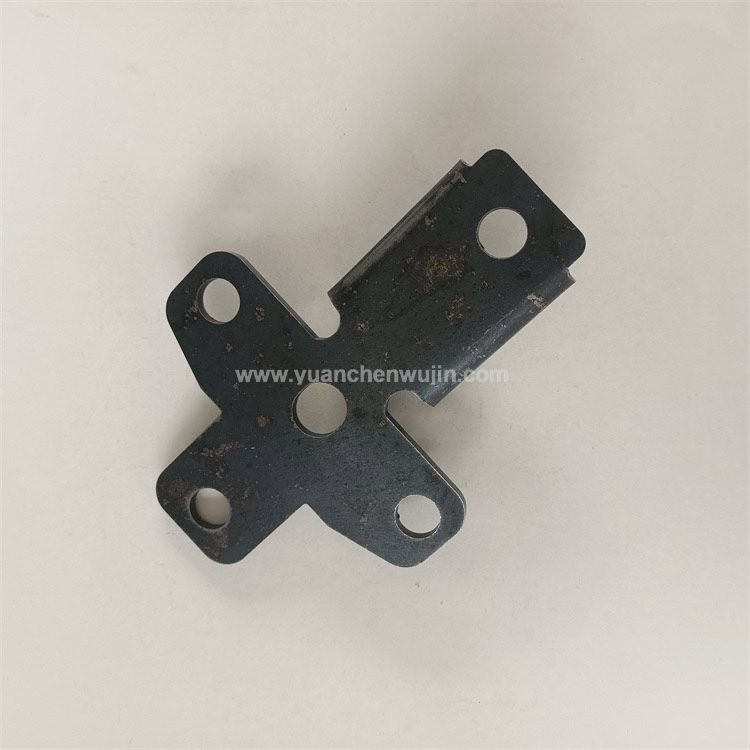

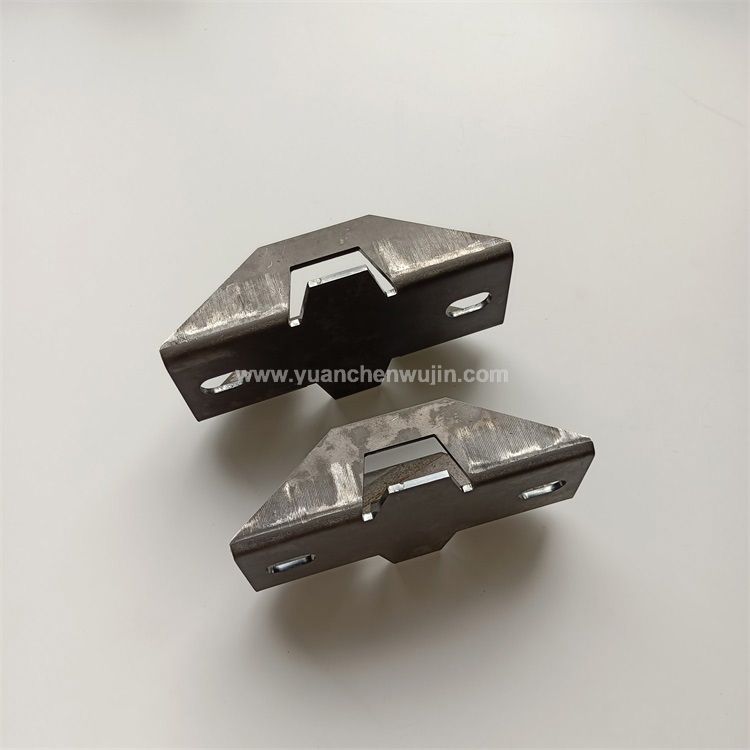

Name: fence base, fence connector

Material: Q235

Thickness: 5mm

Surface: industrial surface

Process: laser cutting, bending

Application: metal fittings of equipment fence

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

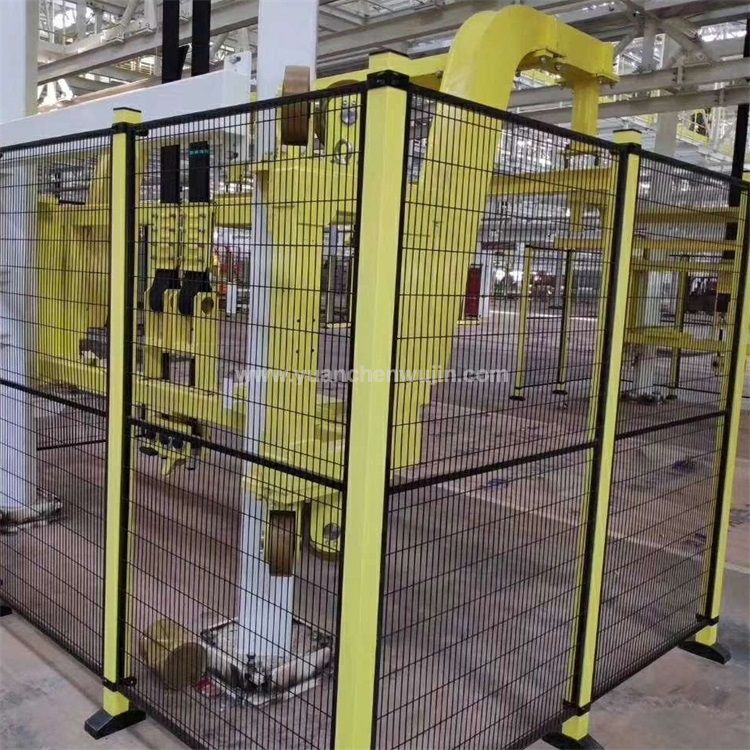

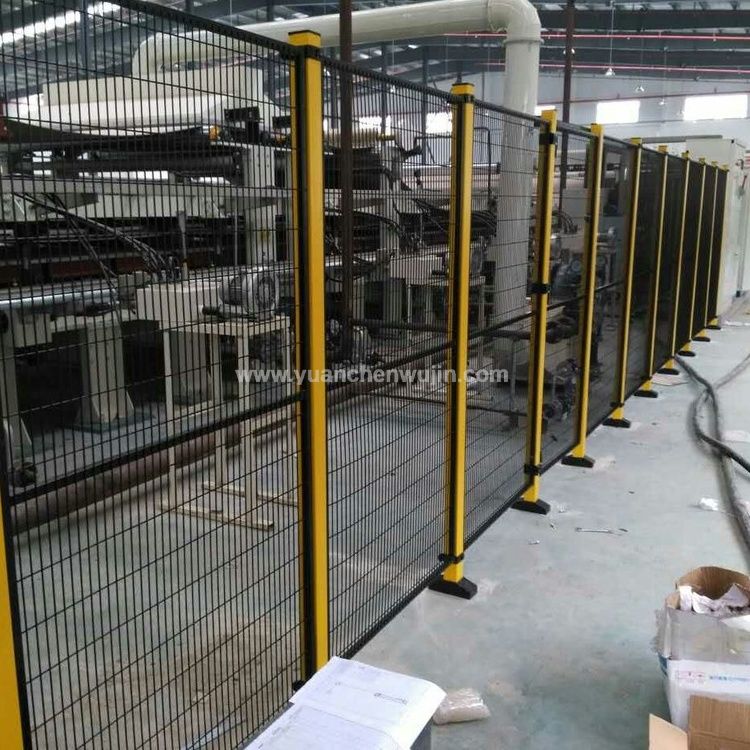

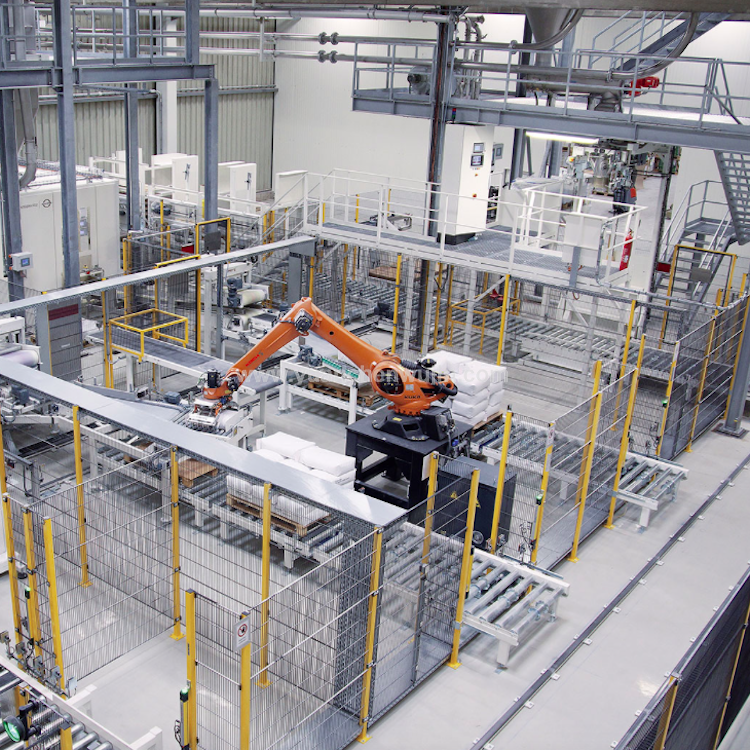

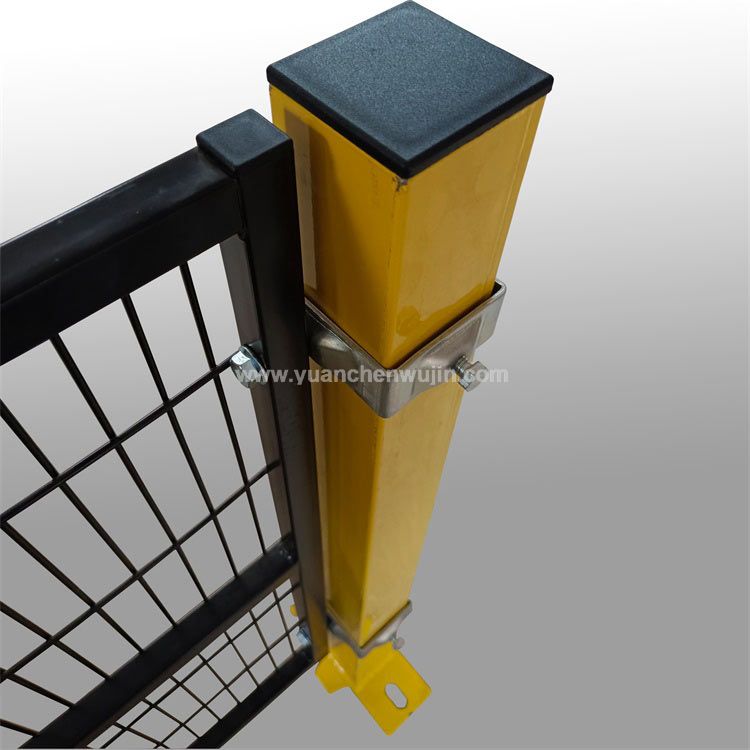

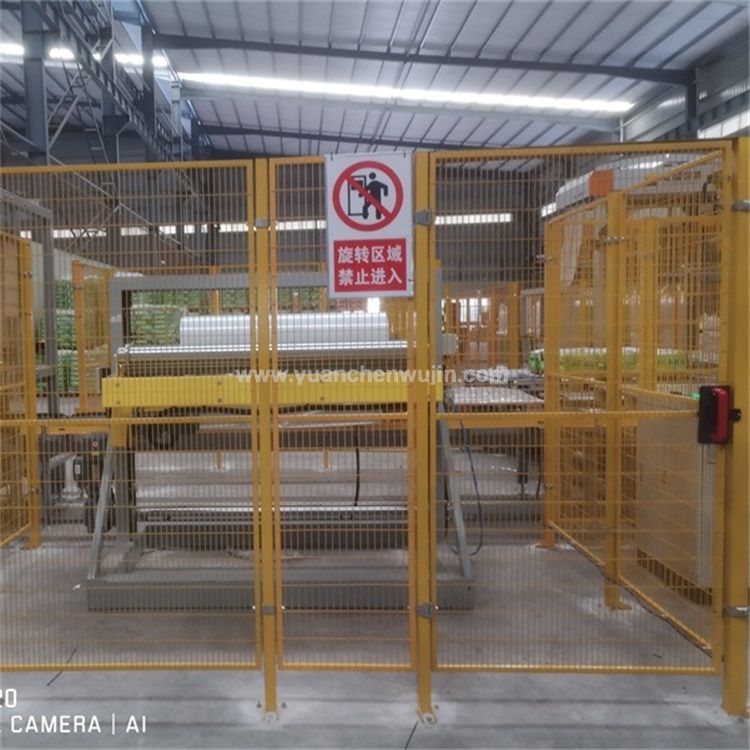

Application pictures:

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment

Safety Fences and Fence Connectors for Industrial Equipment
