Product Name:

Sheet Metal Part for Medical Devices

Model No.:

Customized


Product Details

Sheet Metal Parts for Medical Devices


Develop, design and process various sheet metal parts and forming dies according to samples or drawings
Sheet metal stamping, sheet metal bending, sheet punching, riveting, welding and laser cutting services
Molding and processing services for various metal sheets such as carbon steel sheets, stainless steel sheets, and aluminum sheets
Products are widely used in Medical Equipment, Mechanical Equipment, Instrumentation, Home Decoration, Building, Railway and others

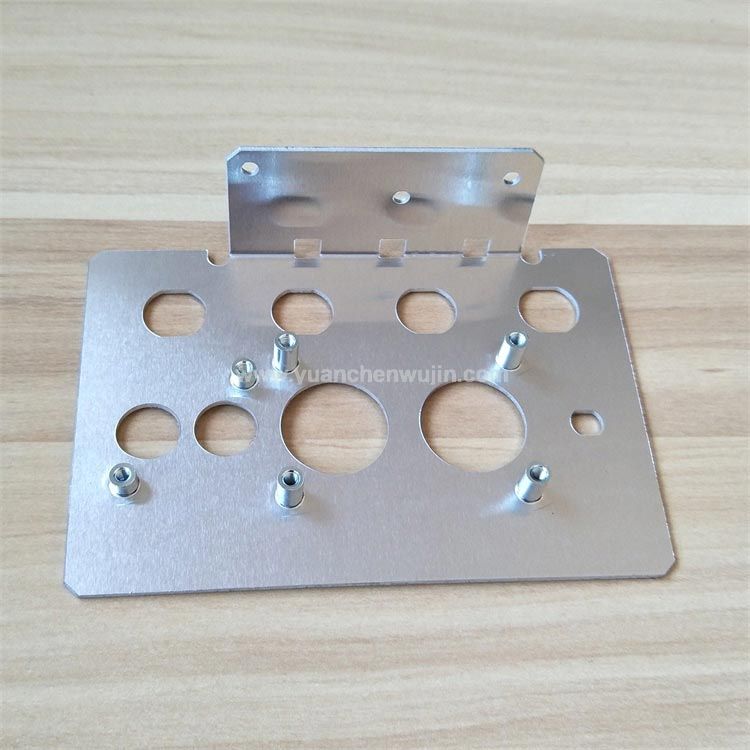

Power interface board

Material: aluminum plate
Thickness: 1.5mm
Size: 60mm*57mm*13mm
Weight: 15g
Process: stamping, bending, riveting





Sheet Metal Parts for Medical Devices

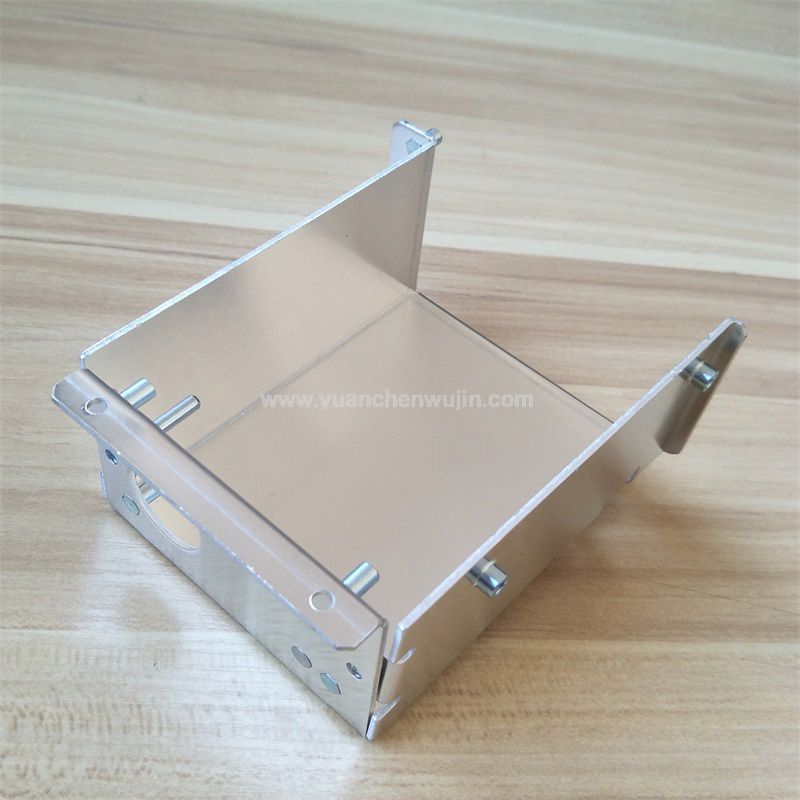

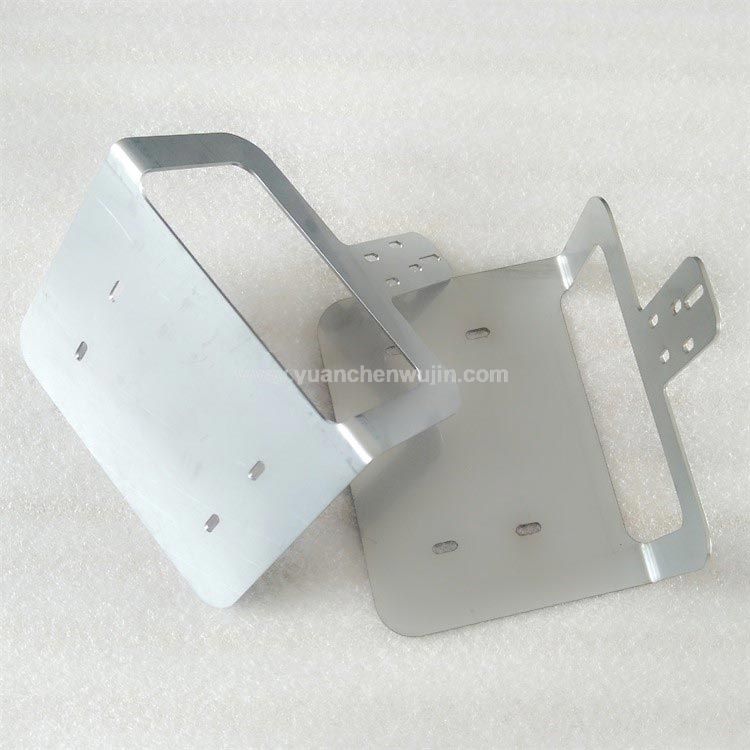

Platform fixing plate

Material: stainless steel SUS304
Thickness: 2mm
Size: 185mm * 145mm * 160mm
Tolerance: 0.2
Surface: Industrial surface
Weight: 530g
Process: laser cutting, bending and forming
Uses: medical equipment, instrumentation


Sheet Metal Parts for Medical Devices


Shield bracket

Material: aluminum plate
Thickness: 1.5mm
Size: 195.5mm*120.5mm*15mm
Weight: 125g
Process: blanking, forming, stamping, riveting
Uses: medical equipment, electronic hardware


Sheet Metal Parts for Medical Devices

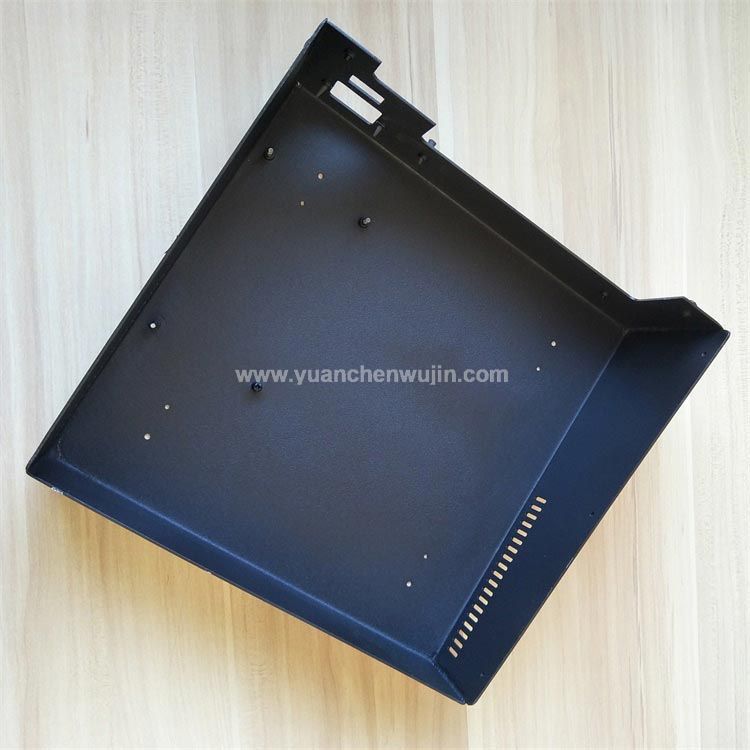

Sheet metal shell

Material: cold rolled sheet
Thickness: 1.5mm
Surface: spray
Size: 264mm*255.5mm*119.7mm
Tolerance: 0.2
Weight: 1645g
Process: Blanking, Stamping, Forming, Welding, Spraying
Uses: medical equipment, instrumentation, home hardware

Sheet Metal Parts for Medical Devices

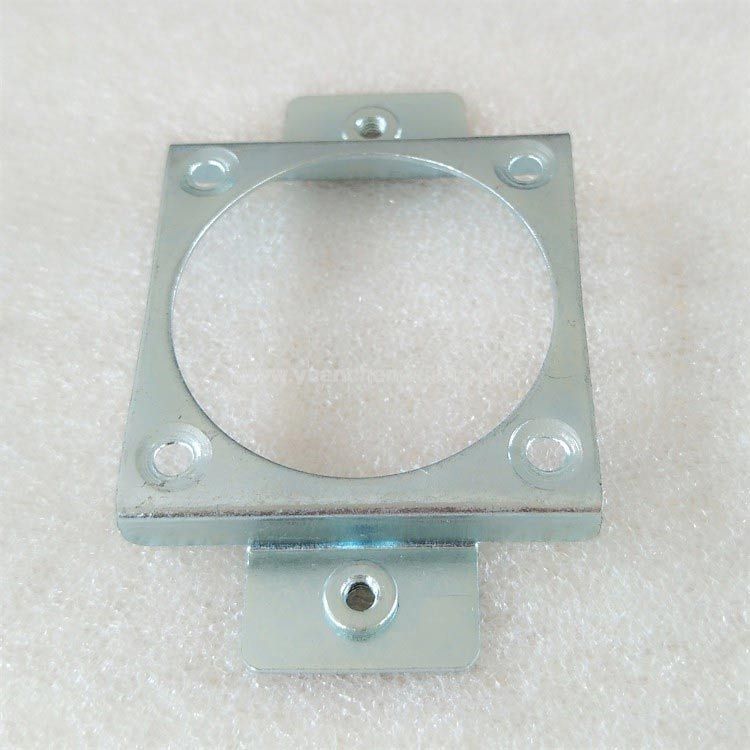

Fan bracket

Material: cold rolled plate Q235
Thickness: 1mm
  Surface: galvanized
Size: 65mm*40mm*7mm
Tolerance: 0.2
Weight: 10g
Process: blanking, stamping, bending, countersunk head, riveting
Uses: Medical equipment Test equipment Home hardware


Sheet Metal Part for Medical Devices

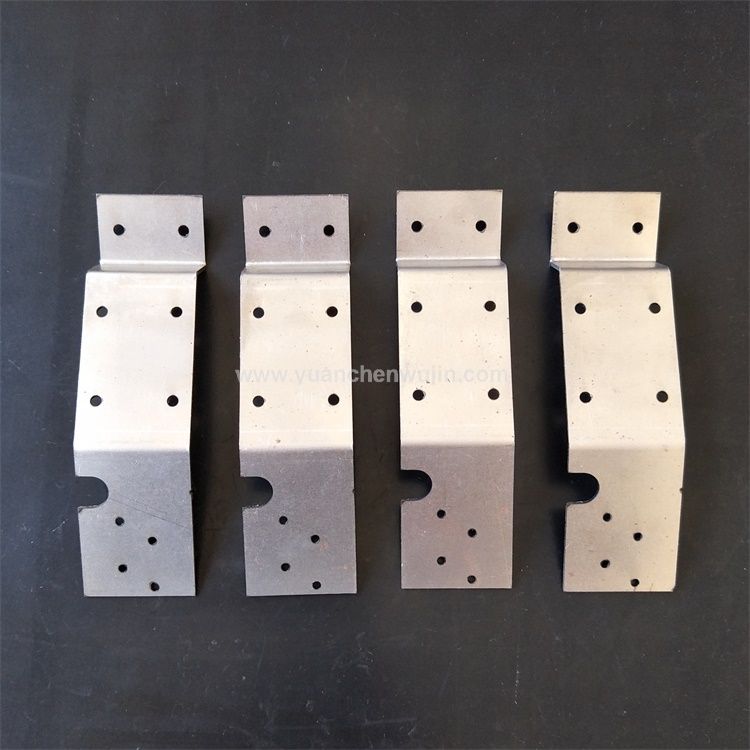

Stainless steel air pump bracket

Material: stainless steel 304
Thickness: 1.5mm
Size: 140mm*36mm*20mm
Tolerance: 0.4
Weight: 60g
Process: blanking, stamping, bending, forming


Sheet Metal Part for Medical Devices

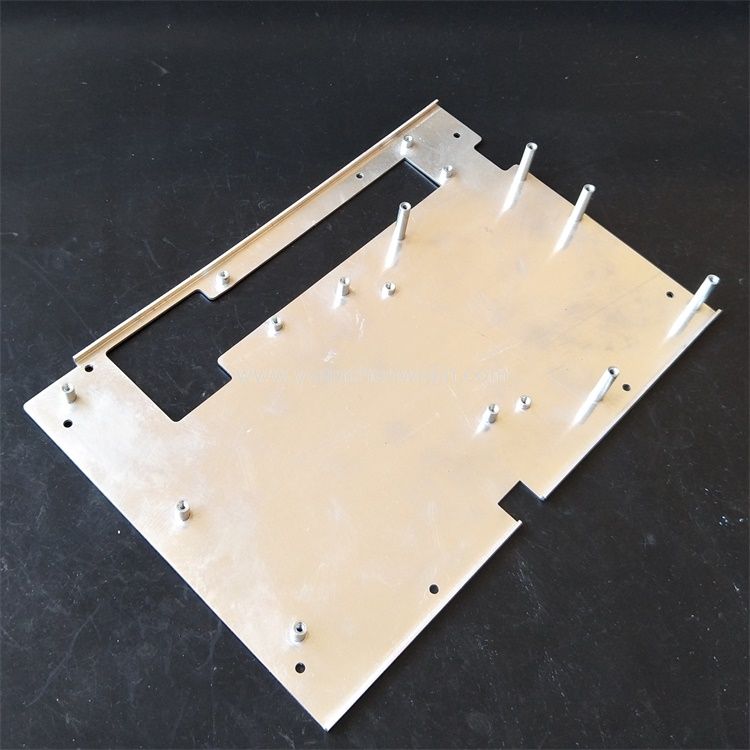

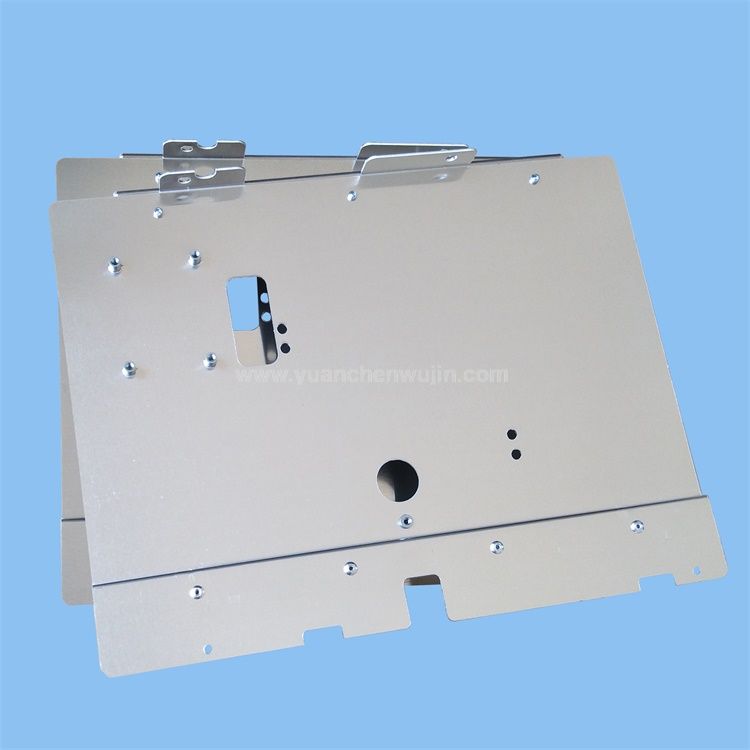

LCD Screen Fixing Plate

Material: Al Sheet
Thickness: 1.5mm
Size: 270mm*228mm*18mm

Sheet Metal Part for Medical Devices

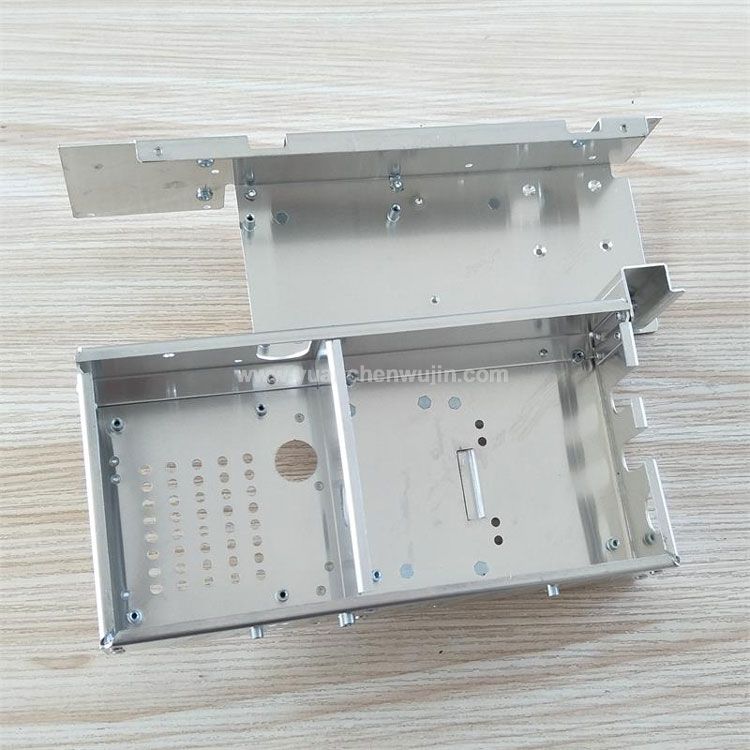

Main body sheet metal parts

Material: aluminum plate
Thickness: 1.5mm
Size: 300mm*228.5mm*89mm
Process: Cutting Stamping Bending Riveting


Sheet Metal Part for Medical Devices

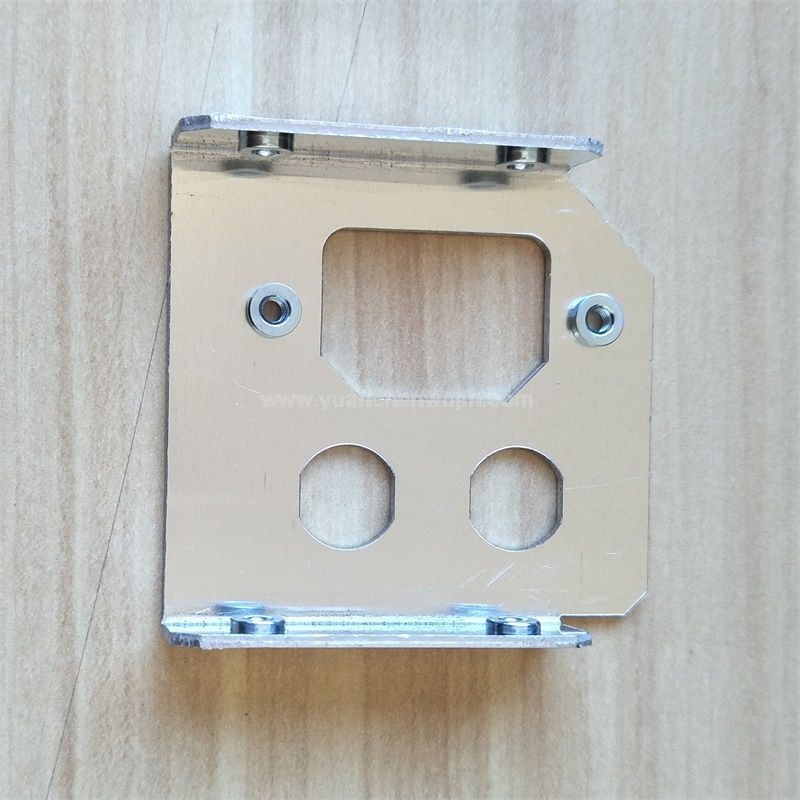

External communication fixed board

Material: aluminum plate
Thickness: 1.5mm
Size: 100mm*78mm*16.5mm


Sheet Metal Part for Medical Devices

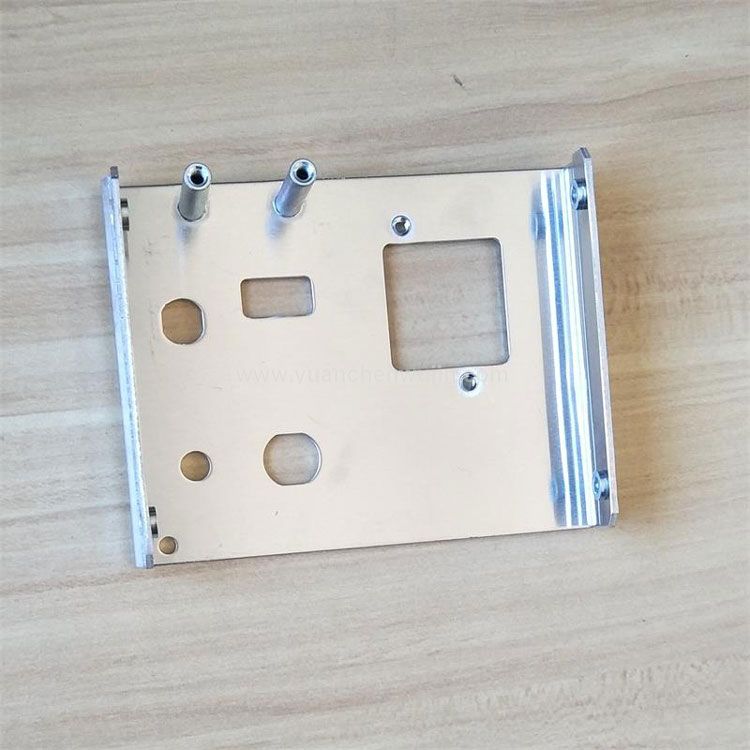

Battery compartment processing

Material: aluminum alloy plate
Thickness: 1.5mm
Size: 110.8mm*92.5mm*14mm
Process: Cutting Stamping Bending riveting


Sheet Metal Part for Medical Devices


Develop, design and process various sheet metal parts and forming dies according to samples or drawings
Sheet metal stamping, sheet metal bending, sheet punching, riveting, welding and laser cutting services
Molding and processing services for various metal sheets such as carbon steel sheets, stainless steel sheets, and aluminum sheets

Products are widely used in Medical Equipment, Mechanical Equipment, Instrumentation, Home Decoration, Building, Railway and others

Medical Equipment :
Shield Cover, Fixing Bracket, Sheet Metal Casing, Copper Electrode Plate, Shielding Bracket, Small Bracket, Connecting Plate, Fan Small Bracket, Battery Box, Power Interface Board, Leaf Spring, Sensor Fixing Plate, Metal Guard Plate, Battery Compartment, Shield Cover , Printer Small Bracket, Contact Spring Piece, Power Interface Board, Main Body Casing, Copper Electrode Plate, USB Bracket

Mechanical Equipment:
Tempering Furnace Gasket, Burning Furnace Carbon Steel Connecting Plate, Aluminum Lid for Food Packaging, Porous Oil Pipe Fixing Clamp, Water Treatment Equipment Evaporative Cooler Galvanized Guard Plate, Wheel Spray Bracket, Valve Seal Ring, Seamless Steel Tube Metal Sheath, Metal Stamping Clamp for Electric Fire Fighting Equipment, Shelf Turnover Box Stamping Tensile Parts, Positioning Baffle, Welded Valve Housing, Flange, Motor Sheet Metal, Cylinder Connection Board, Equipment Nameplate Number, Packaging Code Letter, Mechanical Valve Connection Bracket, Stainless Steel Porous Heat Sink, Burner Connection Support, Metal Hose Seal Retaining Ring, Elevator Bracket Pulley Fixing Plate, Handlebar, Plum Hand wheel, Stainless Steel Adjustment Pad Sheet, Stop Gasket, Turbine Honeycomb Gasket

Instrumentation Hardware:
Spring Piece, Sheet Metal Case, Electrode Piece, Shield Cover, Fixing Bracket, Porous Heat Sink, Dial, Support Plate, Hanging Plate, Sensor Fixing Parts, Battery Box, Metal Wind Speed Vane

Home Decoration Hardware:
LED Bracket, Hollow Spray Paint Template, Guardrail Wrought Iron Decoration, Clothing Model Connection Hook, Shelf Connector, Wine Bracket, Non-standard Hinge, Door Lock Deep Draw Part

Building Hardware:
Galvanized Cable Tray, Support Arm Bracket, Cable Hook, Pipe Slot Type Embedded Parts, Metal Welding Frame, Guardrail Metal Fixed Parts, Triangular Support, Fence Hardware, Steel Structure fasteners, Metal Hasp, Sidewalk Step Board, Positioning Plate

Other products such as Advertising Brand, Tent Box, Hydraulic Punching Machine, Mobile Tool Cart, Cosplay Hardware
