Product Name:

Test Frame for Safety Glazing Materials in Buildings

Model No.:

1930mm×864


Product Details

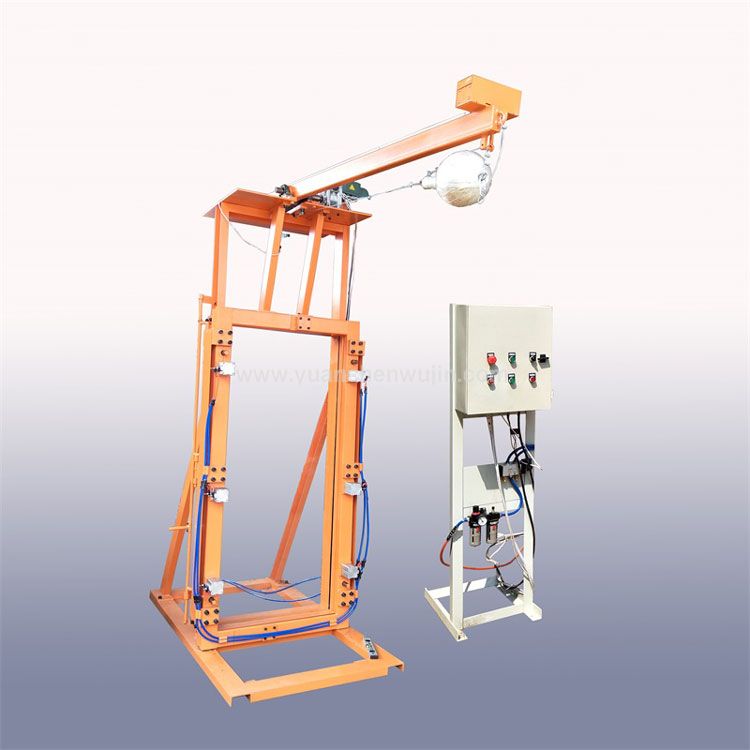

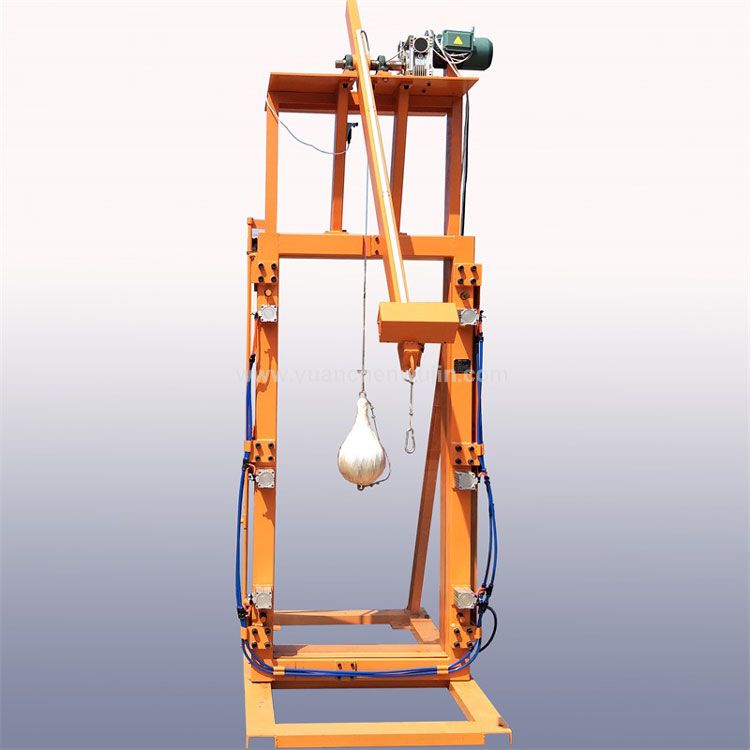

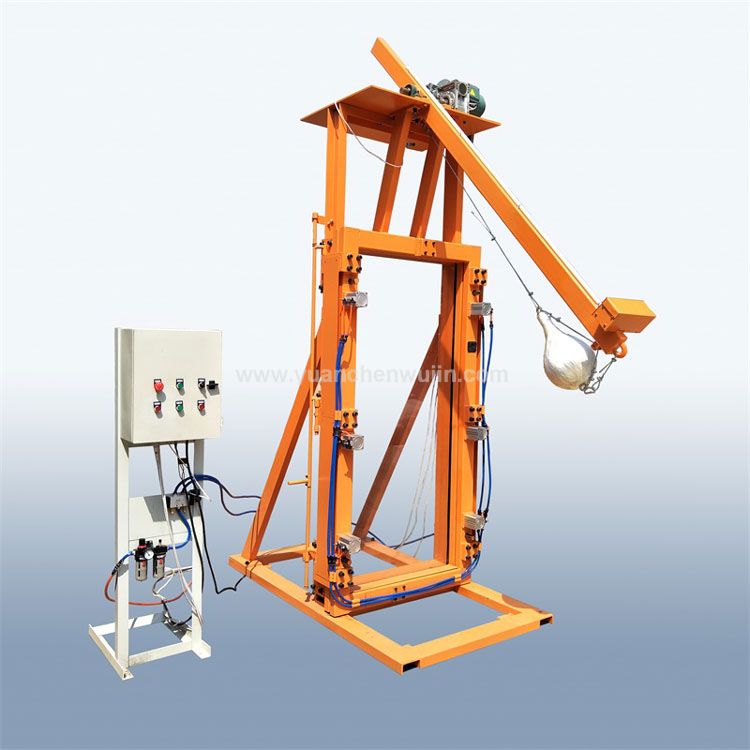

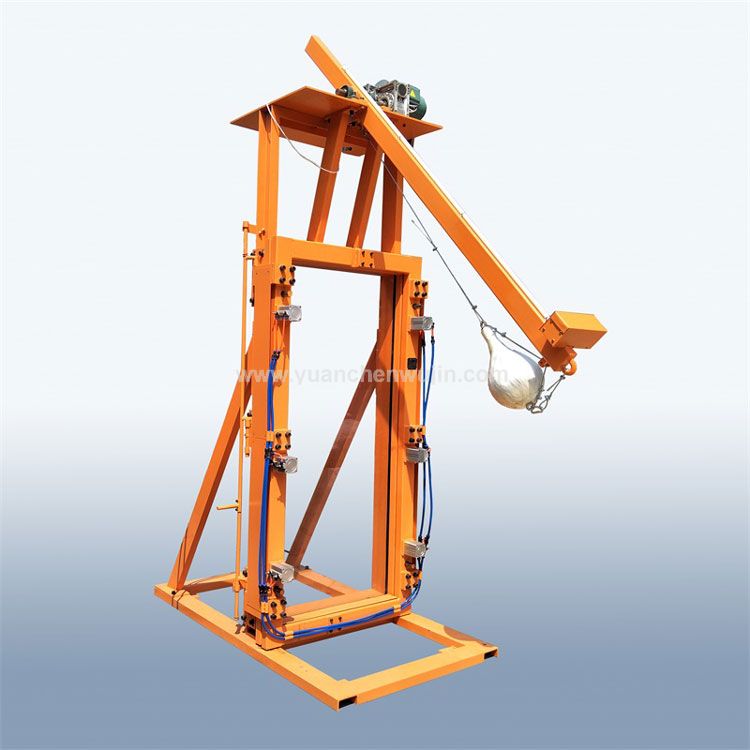

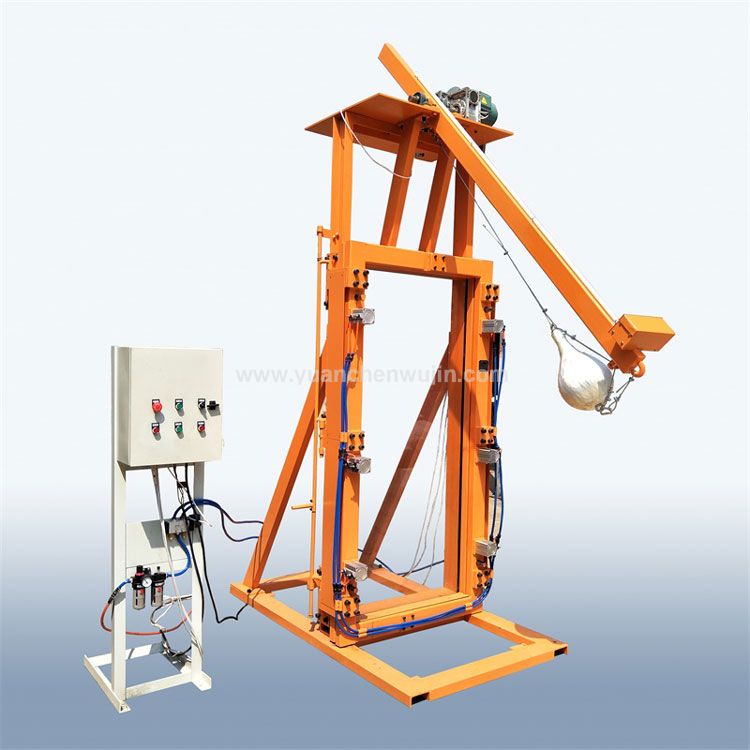

Test Frame for Safety Glazing Materials in Buildings

Test Equipment for Determining the Resistance of Glazing Materials to Impact by the Penetration Method


Related Standards:
1)     AS/NZS 2208 Safety glazing materials in buildings
2)     GB 15763.3 Safety glazing materials in building Part 3: Laminated glass


Test Frame for Safety Glazing Materials in Buildings

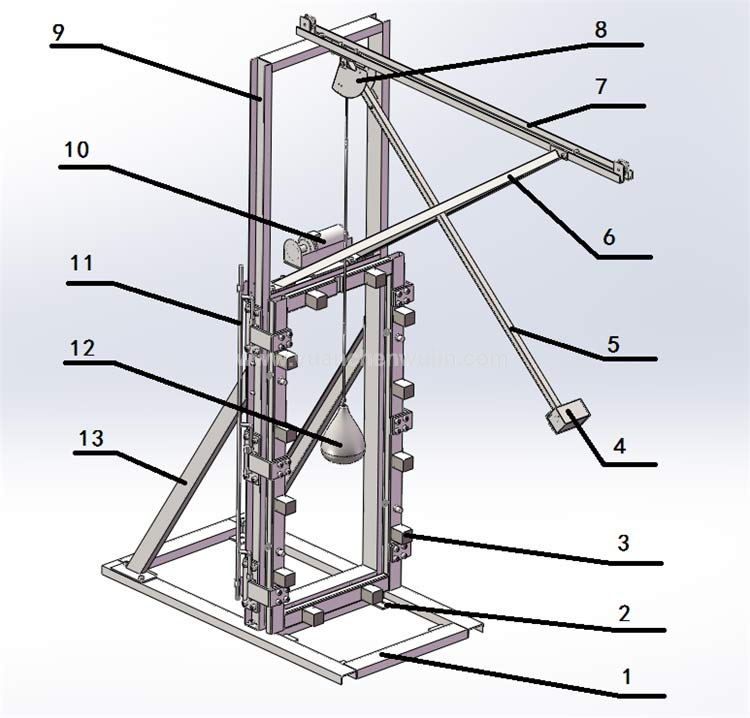

1: Bottom Frame 2: Anchor Bolt 3:  Cylinder 4: Electromagnet Release Device

5: Swing Arm 6: Upper Inclined Support 7: Cantilever 8: Scale Dial 9: Main Frame

10: Electric Hoist 11: Control Rod 12: Shot Bag Impactor 13:Lower Inclined Support


Application:
Determining the resistance of glazing materials to impact by the penetration method

Test Frame:
Size:1900mm×1500mm×3570mm
Samples size:1930mm×864mm
Lift:elctric
Release:Auto
Maximum impact height: 1200mm (customized)
Rubber pad: width 15mm thickness 3mm shore A50 hardness

Impact Shot Bag:
Reinforced leather bag filled with chiller lead shot
Technical Data:
1)   Weight:45kg±0.1kg 46kg±0.1kg
2)    Height: 330mm ± 13mm
3)    Max diameter: 250mm
4)    Leather thickness: 0.15mm
5)    Lead sand size: 2.5mm
Customized: 25kg 48kg


Test Frame for Safety Glazing Materials in Buildings

Test Frame for Safety Glazing Materials in Buildings

Test Frame for Safety Glazing Materials in Buildings

Test Frame for Safety Glazing Materials in Buildings

Test Frame for Safety Glazing Materials in Buildings
