Product Name:

Impact Frame

Model No.:

1930 mm×86


Product Details

Impact Frame


Related Standards:

AS/NZS 2208 Safety glazing materials in buildings – Appendix D: Impact Test

GB 15763.3 Safety glazing materials in building Part 3: Laminated glass – Appendix C: Test device for the impact performance of shot bag

ANSI Z97.1 Safety Glazing Materials Used in Buildings - Safety Performance Specifications and Methods of Test - Clause 5.1: Impact Test

Application:

Determining the resistance of glazing materials to impact by the penetration method

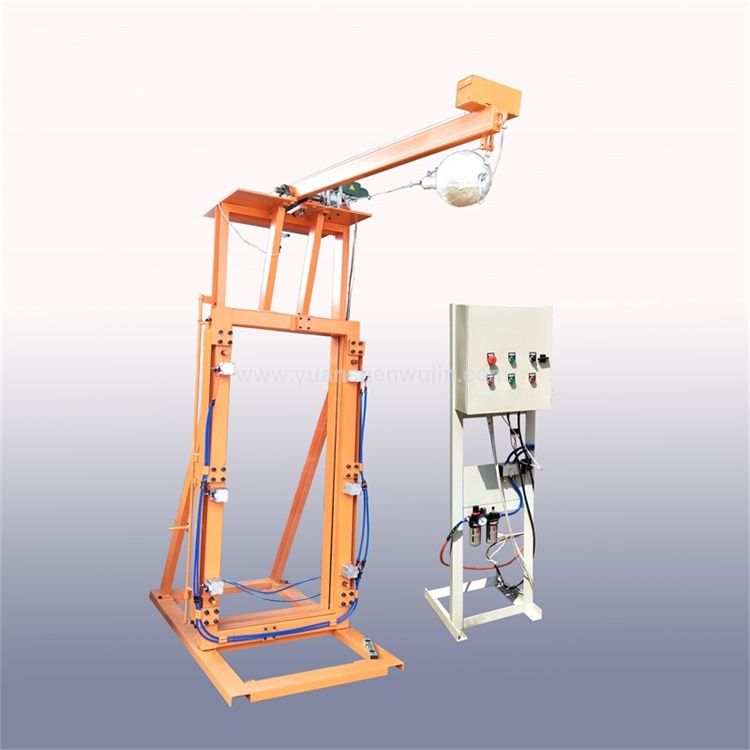

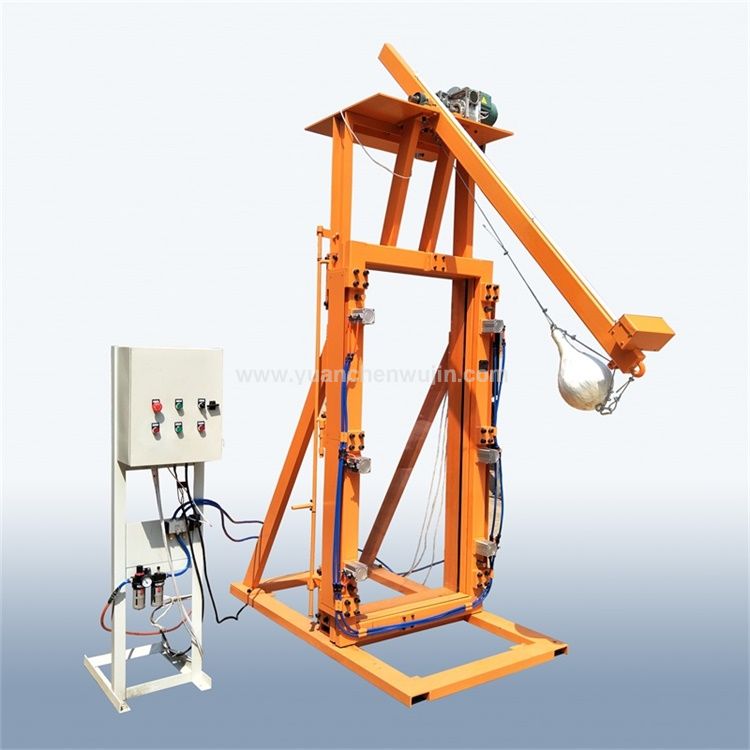

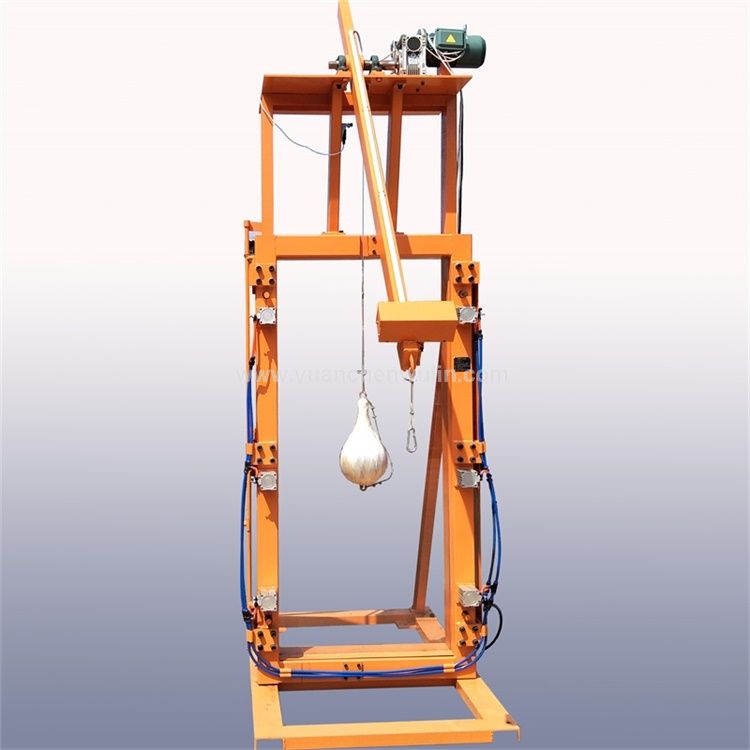

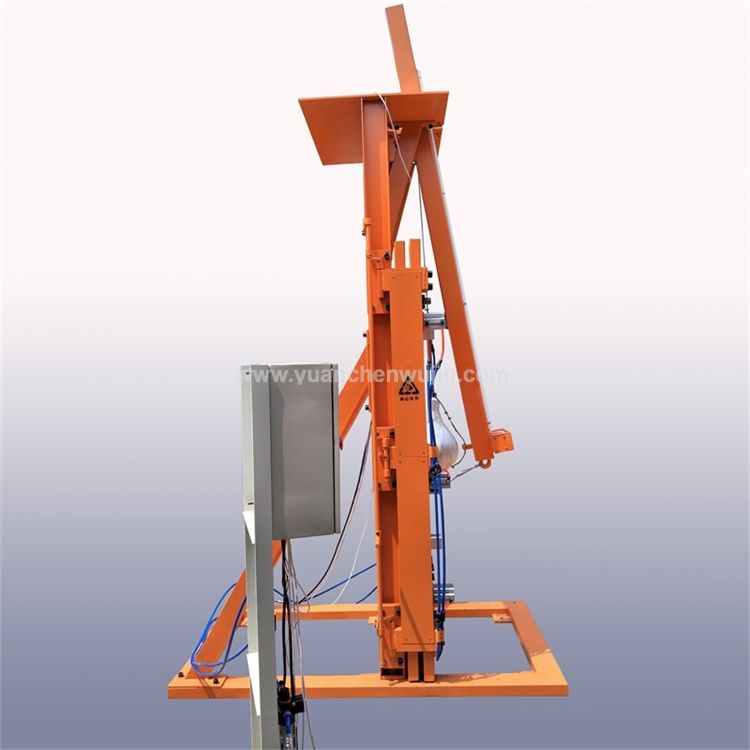

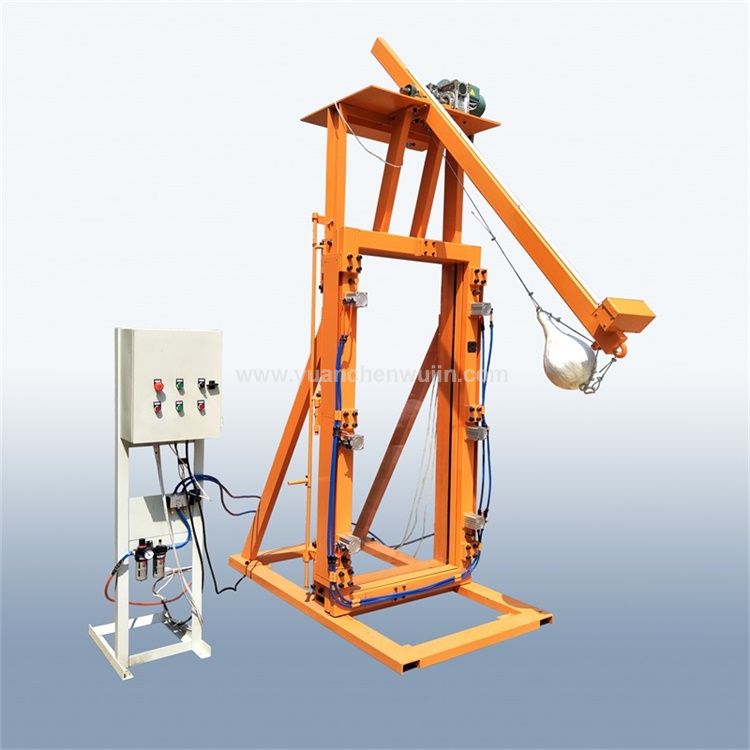

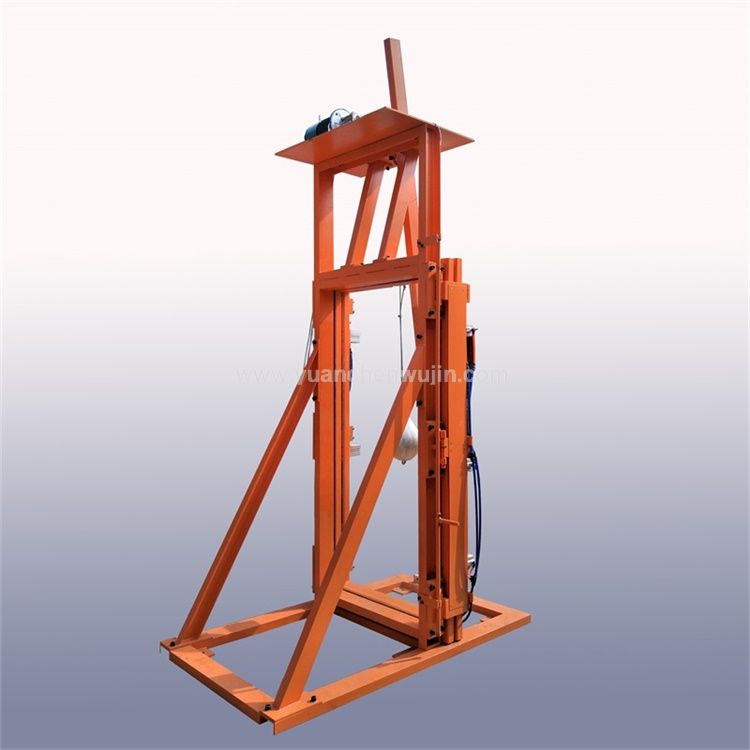

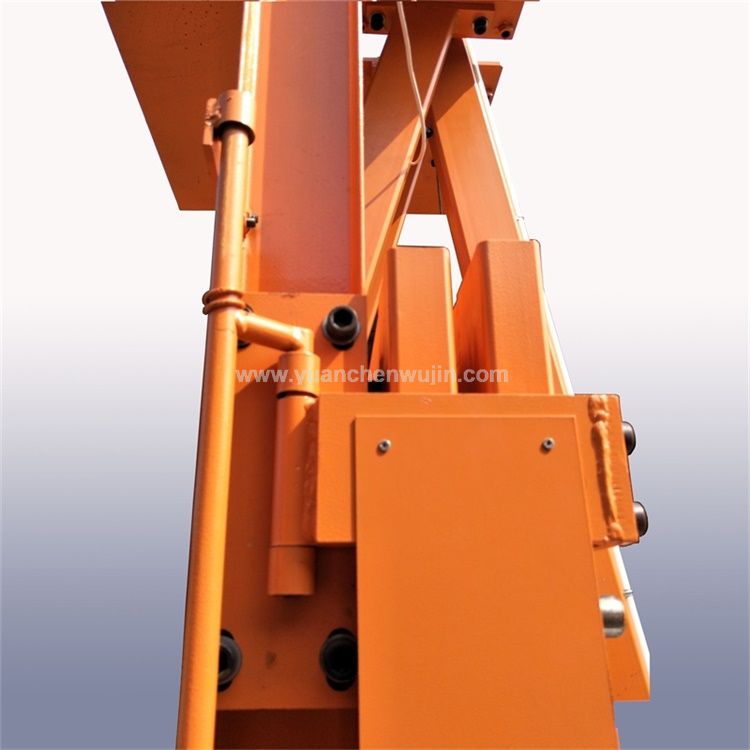

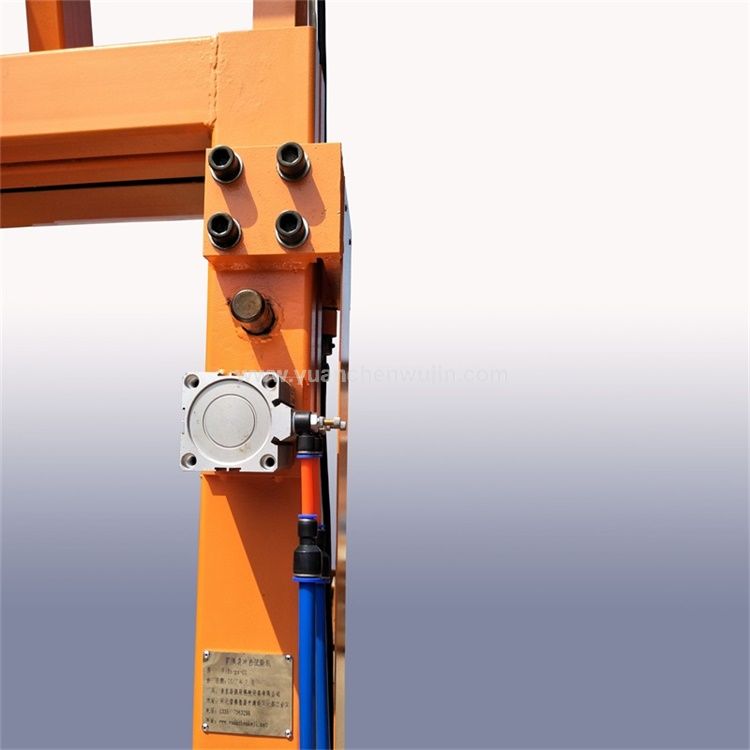

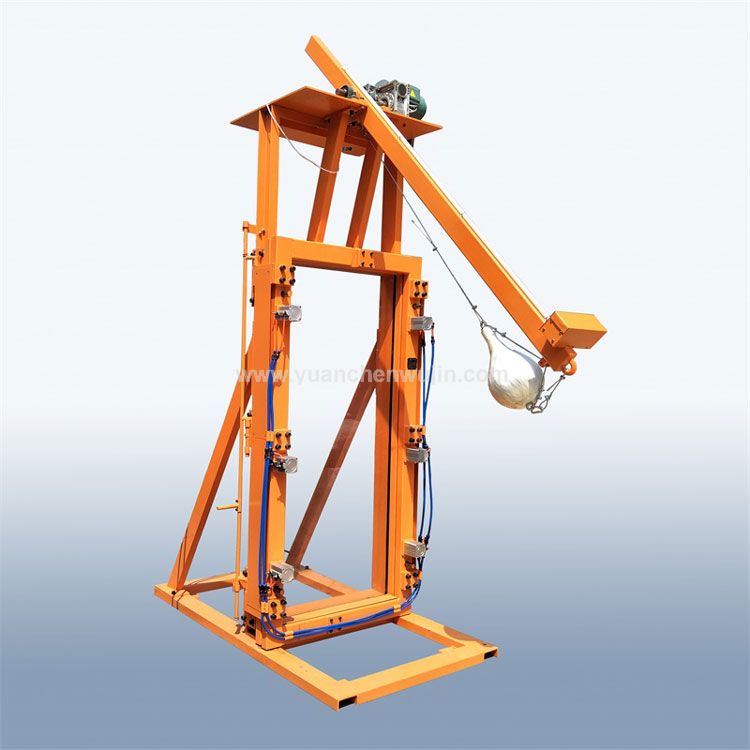

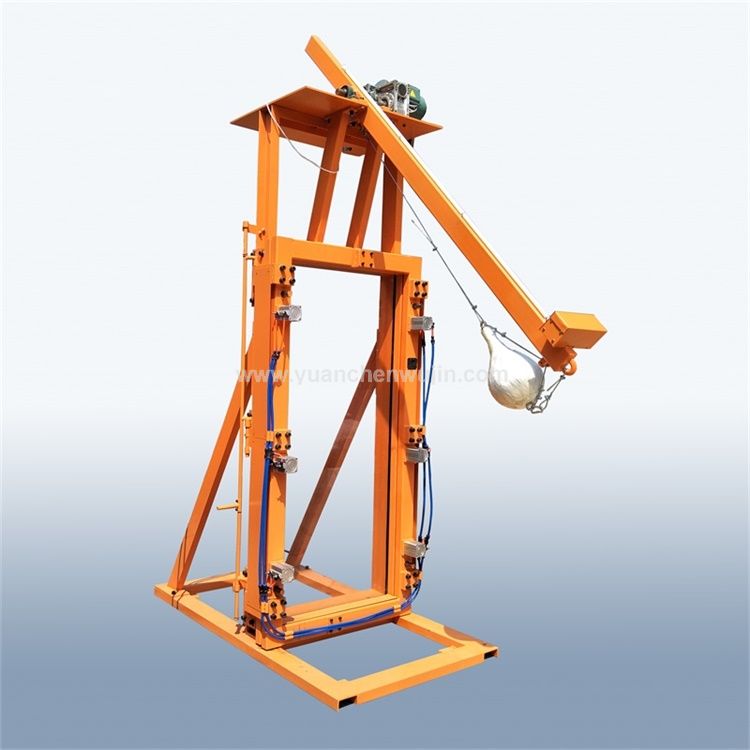

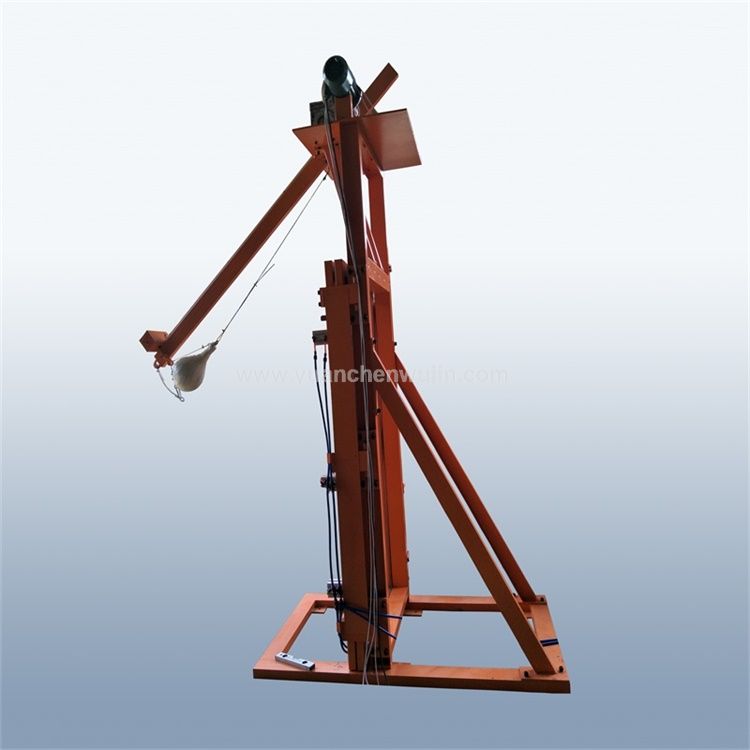

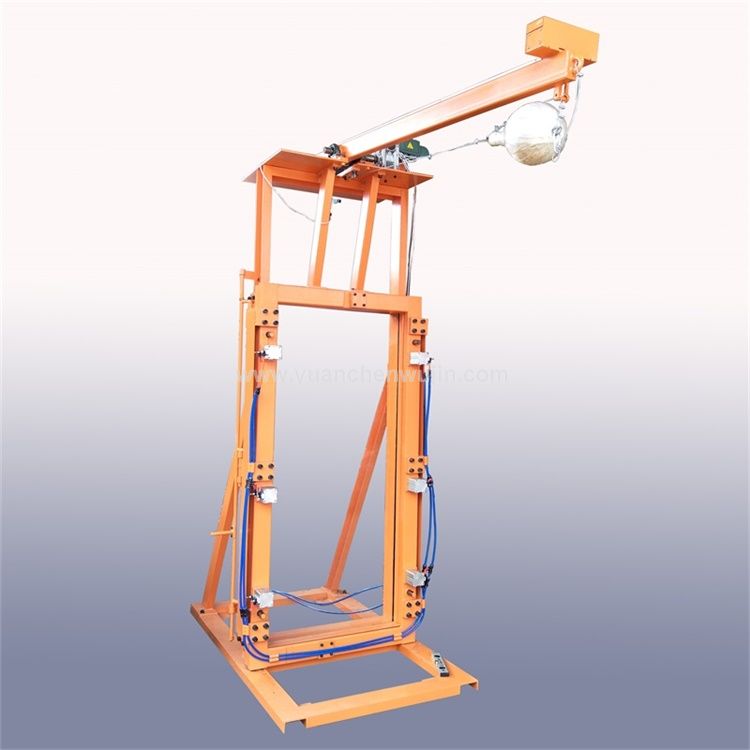

Impact Frame

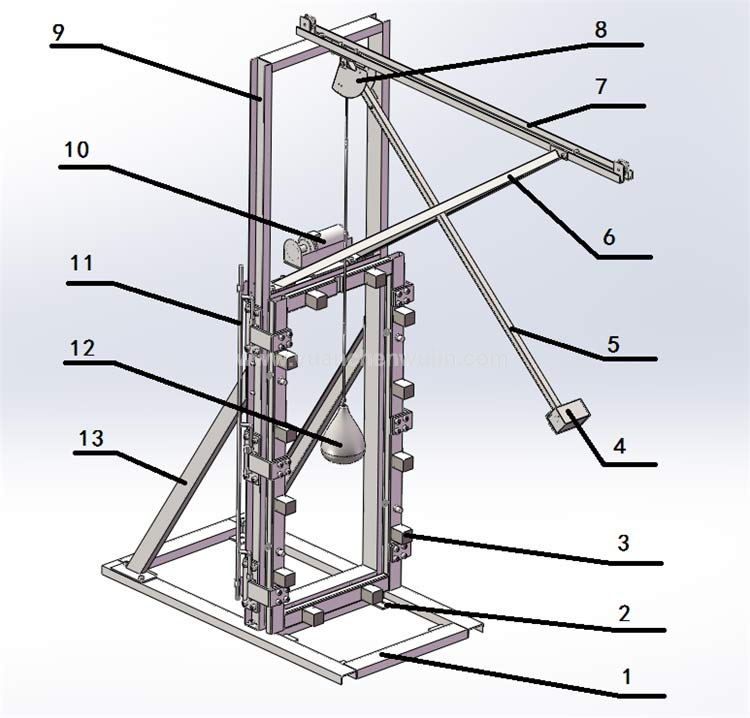

1: Bottom Frame 2: Anchor Bolt 3:  Cylinder 4: Electromagnet Release Device

5: Swing Arm 6: Upper Inclined Support 7: Cantilever 8: Scale Dial 9: Main Frame

10: Electric Hoist 11: Control Rod 12: Shot Bag Impactor 13:Lower Inclined Support

Test Frame:

Frame Size:1900mm×1500mm×3570mm

Samples Size:1930mm×864mm

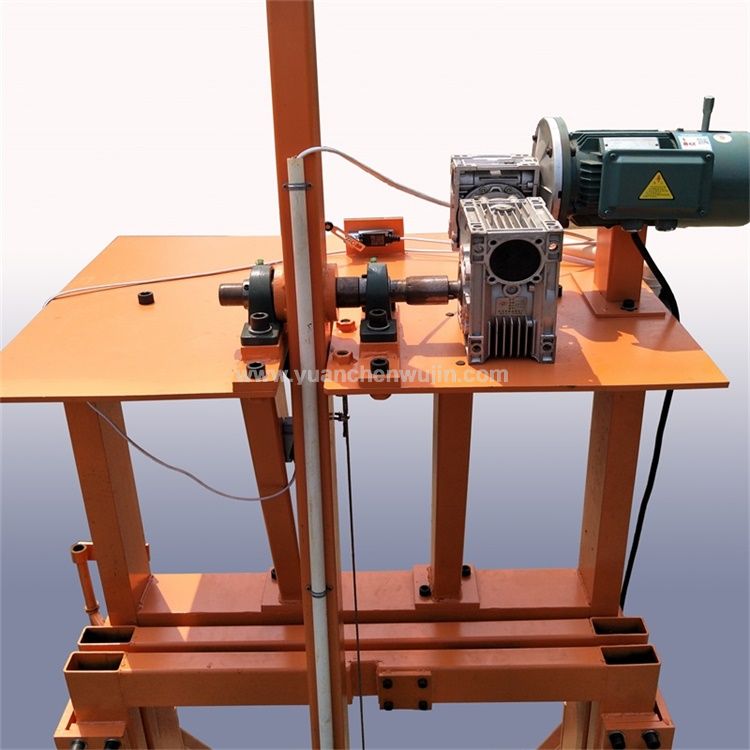

Lift: Electric

Release: Auto

Maximum impact height: 1200mm (customized)

Rubber Pad Width: 15mm

Rubber Pad Thickness: 3mm

Rubber Pad Hardness: Shore A50

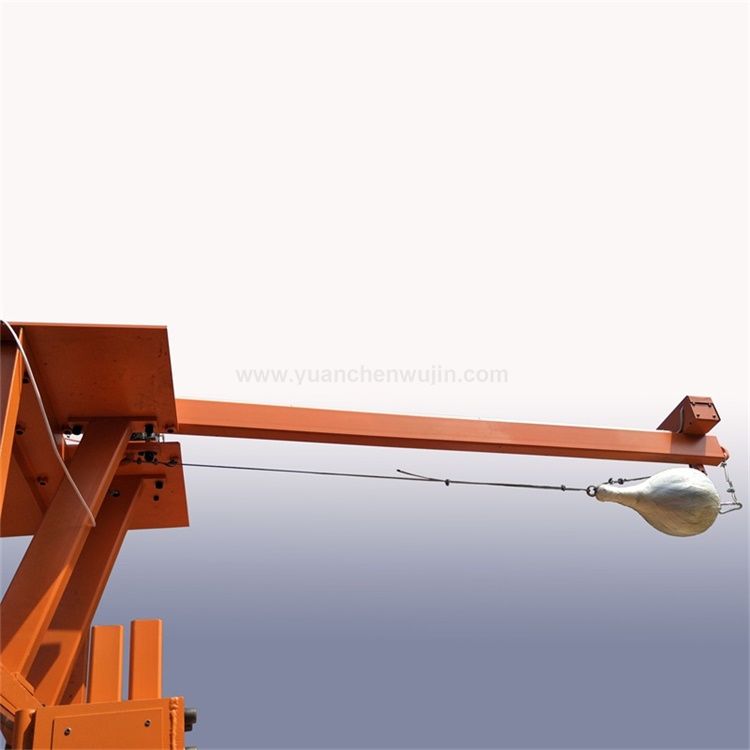

Impact Shot Bag:

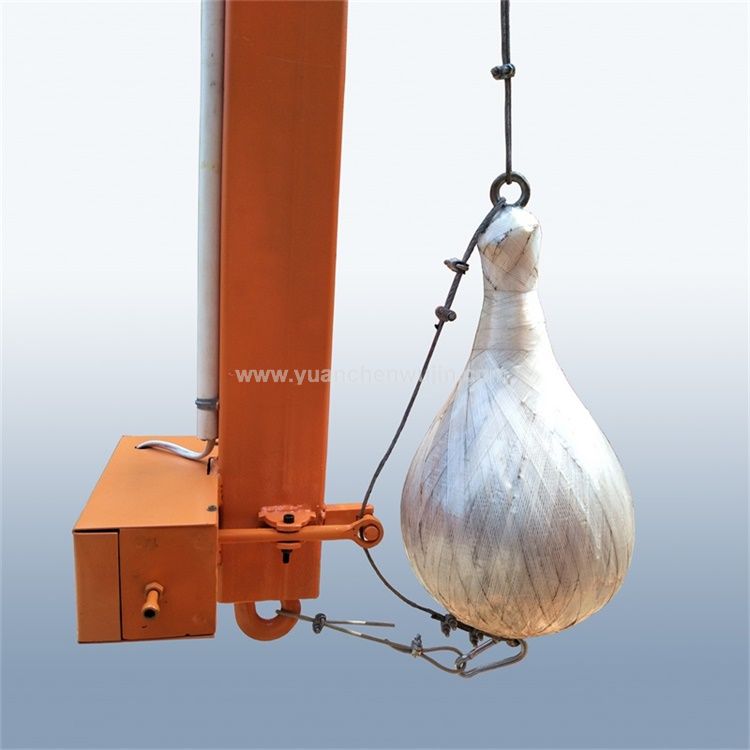

Reinforced leather bag filled with chiller lead shot

Technical Data:

Weight:45kg±0.1kg 46kg±0.1kg

Height: 330mm ± 13mm

Max diameter: 250mm

Leather thickness: 0.15mm

Lead sand size: 2.5mm

Customized: 25kg 48kg
