Product Name:

Glass Impact Testing Device

Model No.:


Product Details

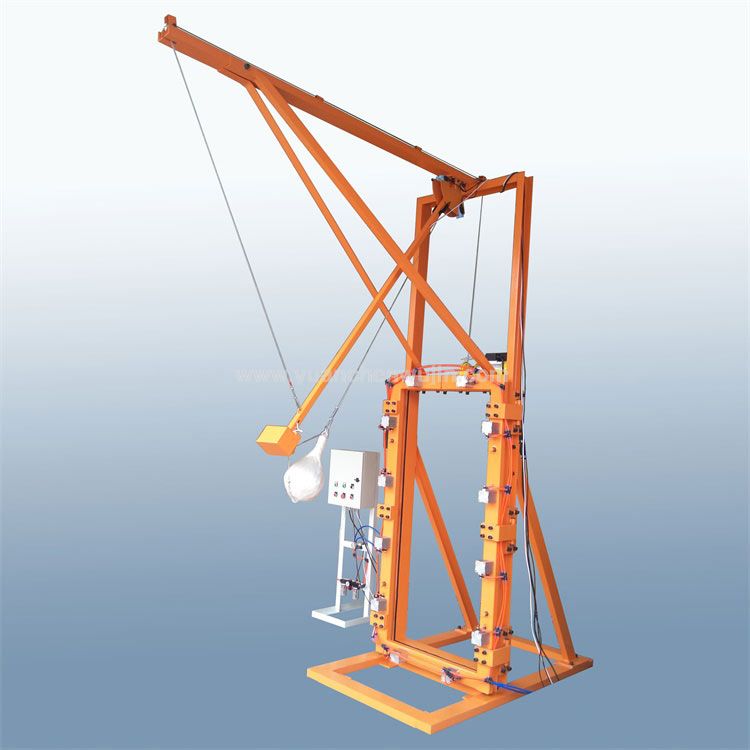

Glass Impact Testing Device

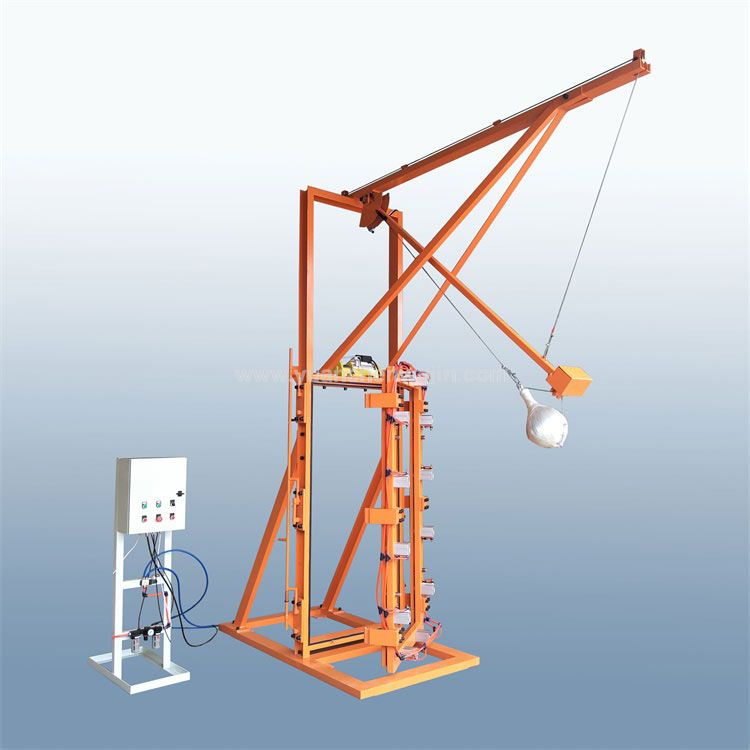

Glass Impact Testing Device

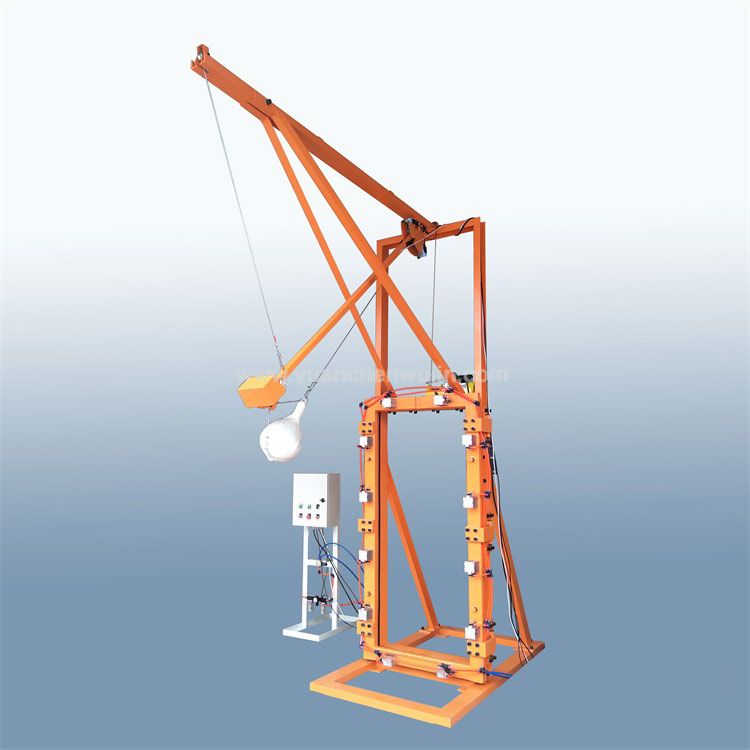

1: Bottom Frame 2: Anchor Bolt 3:  Cylinder 4: Electromagnet Release Device

5: Swing Arm 6: Upper Inclined Support 7: Cantilever 8: Scale Dial 9: Main Frame

10: Electric Hoist 11: Control Rod 12: Shot Bag Impactor 13:Lower Inclined Support


Impact machine for toughened glass and laminated glass shot bag impact test

Related Standards:

1) AS/NZS 2208 Safety glazing materials in buildings – Appendix D: Impact Test

2) GB 15763.3 Safety glazing materials in building Part 3: Laminated glass – Appendix C: Test device for the impact performance of shot bag

3) ANSI Z97.1 Safety Glazing Materials Used in Buildings-Safety Performance Specifications and Methods of Test-Clause 5.1: Impact Test

4) ASTM E2353 Standard Test Methods for Performance of Glazing in Permanent Railing Systems, Guards, and Balustrades – Clause 7.3 Shot Bag, Traction and Release System

5) IEC 61730-2 Photovoltaic (PV) module safety qualification-Part 2: Requirements for testing 10.21 Module breakage test MST 32


Determining the resistance of glazing materials to impact by the penetration method

Test Frame:

Frame Size:1900mm×1500mm×3570mm

Samples Size:1930mm×864mm

Lift: Electric

Release: Auto

Maximum impact height: 1200mm (customized)

Rubber Pad Width: 15mm

Rubber Pad Thickness: 3mm

Rubber Pad Hardness: Shore A50

Impact Shot Bag:

Reinforced leather bag filled with chiller lead shot

Technical Data:

Weight:45kg±0.1kg 46kg±0.1kg

Height: 330mm ± 13mm

Max diameter: 250mm

Leather thickness: 0.15mm

Lead sand size: 2.5mm

Customized: 25kg 48kg

Glass Impact Testing Device

Glass Impact Testing Device

Glass Impact Testing Device

Glass Impact Testing Device

Various of Safety Glass Test Device:

Shot Bag Impactor

Headform Test Device

Ball Impact Test Frame

Shot Bag Impactor Frame

High Temperature Test Oven

Flatness Measuring Instrument

Insulating Glass Dew Point Meter

Steel Ball 2260g 1040g 227g 508g

Soft Pendulum Shock Device for Elevator

Hard Pendulum Shock Device for Elevator

Mechanical Load Test Equipment for PV Module

Test Frame of Forced Entry Resistant Glass and Impact Tool
