Product Name:

Drop Ball Test Machine

Model No.:

ISO/EN


Product Details

Drop Ball Test Machine
Drop Ball Impact Specimen Support and Frame for Laminated Glass

227 g Ball Test

2260 g ball test

Test Method for Ball Drop Impact



Glazing Materials Ball Test Device

Determination of whether the safety glazing material has a certain minimum strength and cohesion under impact from a small hard object

Suitable for impact test of safety glass and tempered glass.

Related Standard:



1)        ISO 3537 Road vehicles — Safety glazing materials — Mechanical tests– Clause 6: 227 g ball test, Clause 7: 2260 g ball test

2)        GB 15763.3 Safety glazing materials in building Part 3: Laminated glass--Appendix B Drop ball impact specimen support

3)        ASTM F3007 Standard Test Method for Ball Drop Impact Resistance of Laminated Architectural Flat Glass

4)        EN 356 Glass in building-Security glazing-Testing and classification of resistance against manual attack – Clause 6.1 Hard body drop test

5)        UL1703 Flat-Plate Photovoltaic Modules and Panels – Clause 30 Impact Test

6)        ANSI/SAE Z26.1 American National Standard for Safety Glazing Materials for Glazing Motor Vehicles and Motor Vehicle Equipment Operating on Land Highways - Safety Standard

- Clause 5.5  Impact, Test 5 (Ball Drop 3.05m [10 ft])

- Clause 5.8  Impact, Test 8 (Ball Drop, Variable) (Multiple Glazed Unit, Class 2 Only)

- Clause 5.9  Impact, Test 9 (Variable Temperature Ball Drop)

- Clause 5.20  Penetration Resistance, Test 20

- Clause 5.23  Impact, Test 23 (Ball Drop, 6.10 m [20 ft])



Principle:

Determination of whether the safety glazing material has a certain minimum strength and cohesion under impact from a small hard object

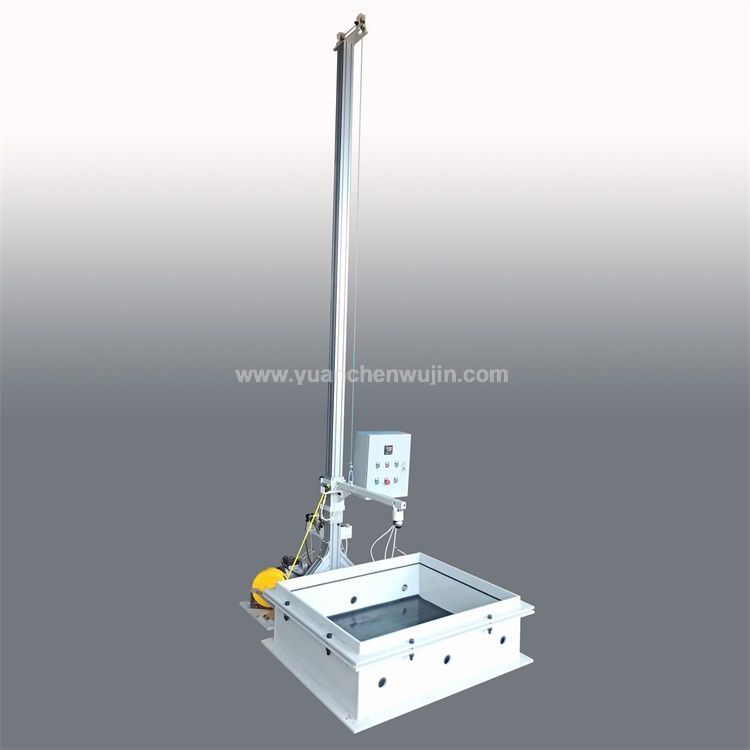

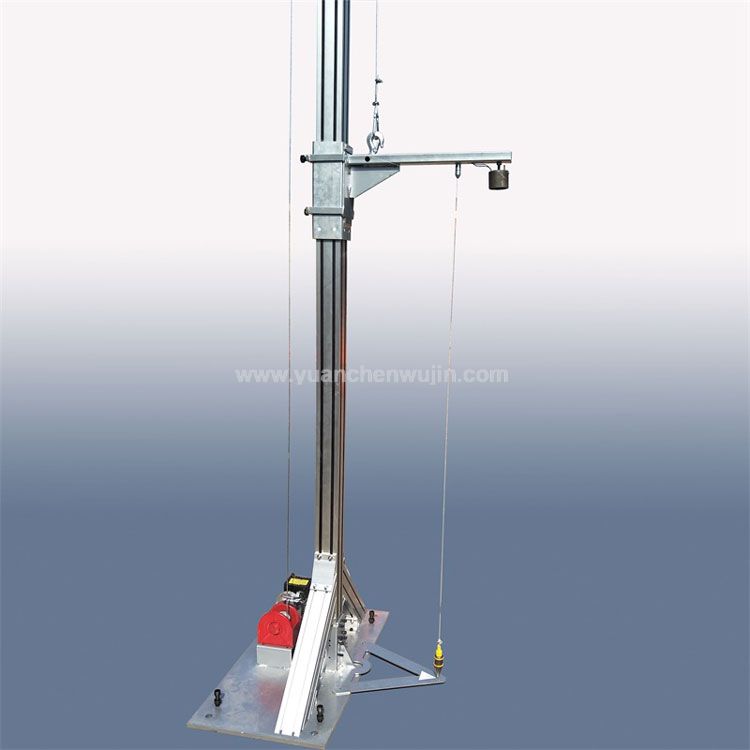

 Drop Ball Test Machine

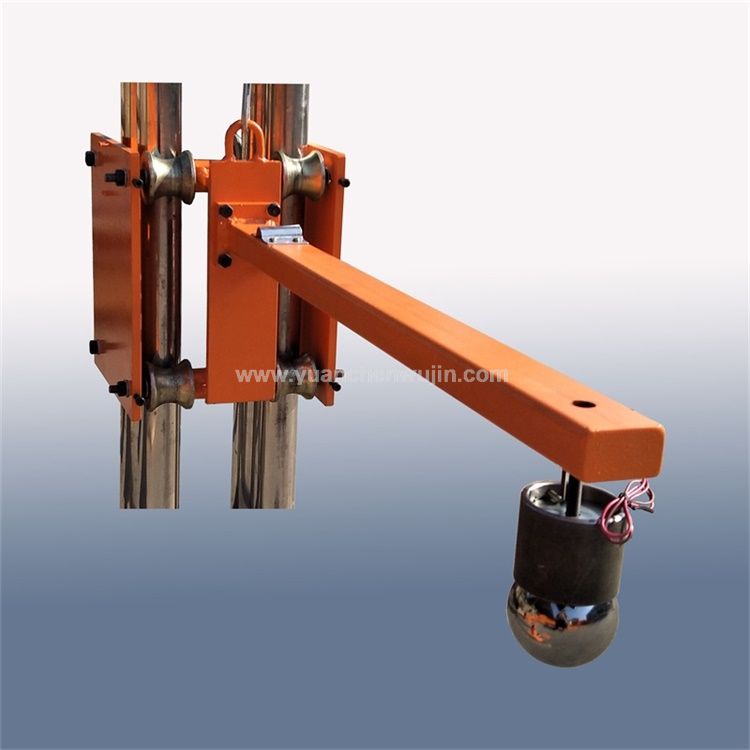

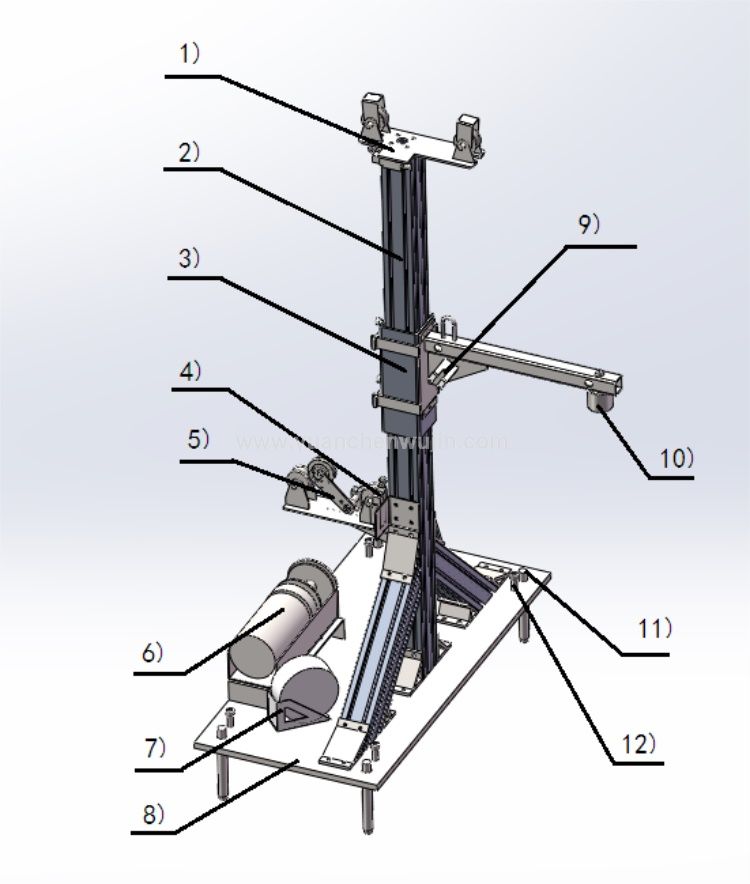

1) Top pulley group 2) Column 3) Square tube 4) Lower limit switch 5) Encoder bracket 6) Motor 7) Wire take-up 8) Base 9) Release device 10) Electromagnet 11) Expansion bolt 12) Leveling screw



Steel ball: 2260g / 82mm 1040g / 63mm 535g / 51mm 508g / 50mm 227g / 38mm

Drop Height: 1000mm, 5000mm, 12000mm, Customized

Automatic release and lift. Power: 220V 50Hz 580W

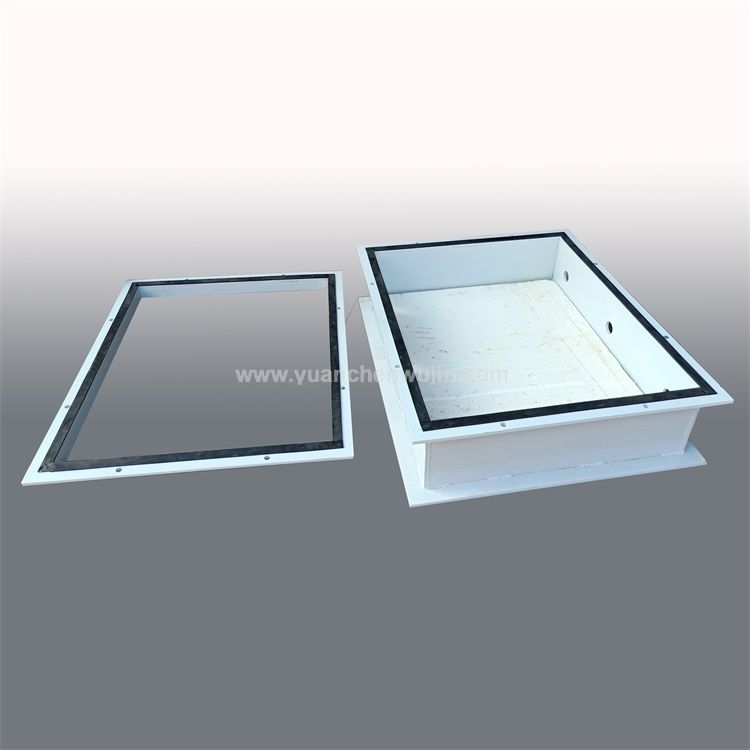

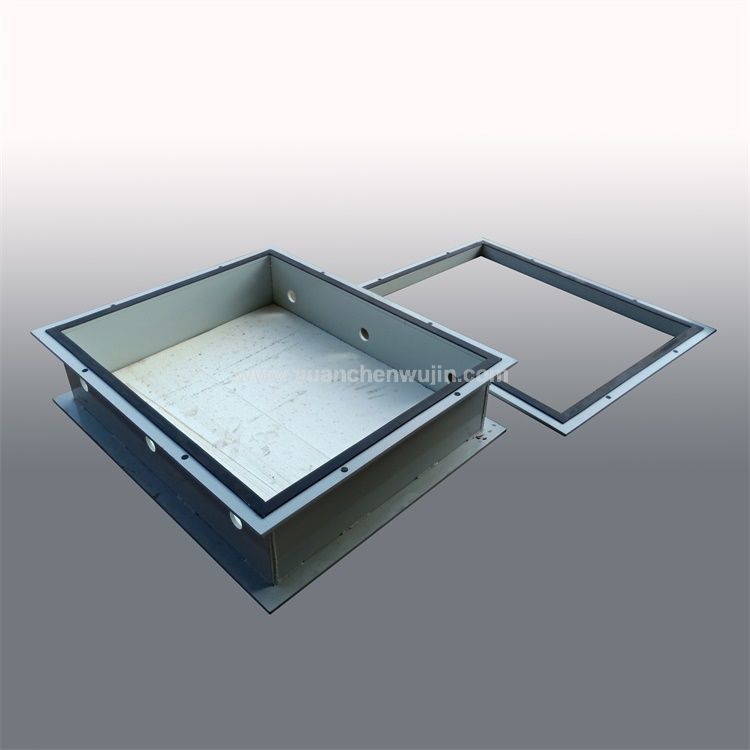

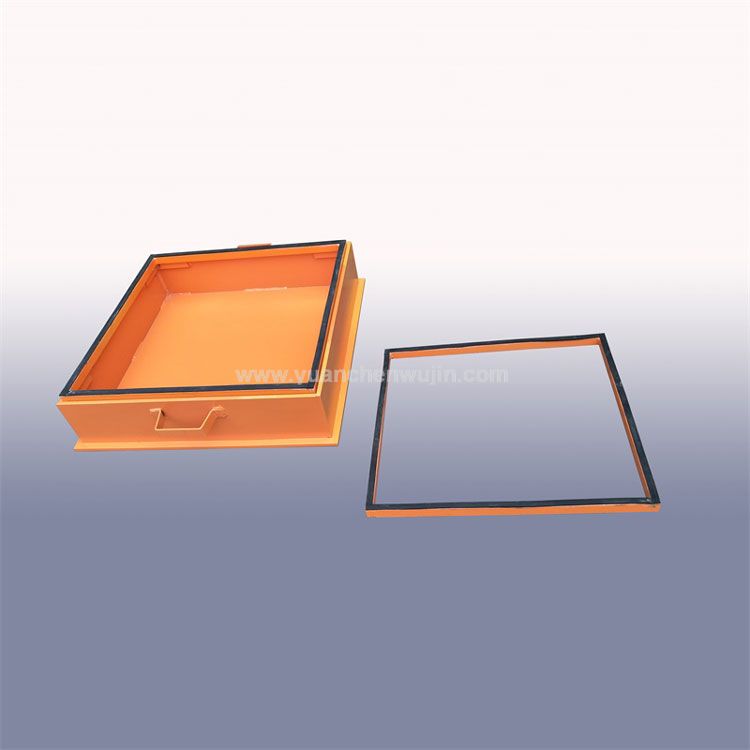

Supporting fixture:

a) Support Size: 350mm*350mm and 660mm*660mm (Customized)

b) Frame width 15mm

c) Steel box height 150mm

d) Rubber Gasket: thickness 3mm, width 15mm, hardness shore A50

e) Interposed sheet of rubber: thickness 3mm, hardness shore A50


Applied Test Pieces Size: 300mm*300mm 610mm* 610mm

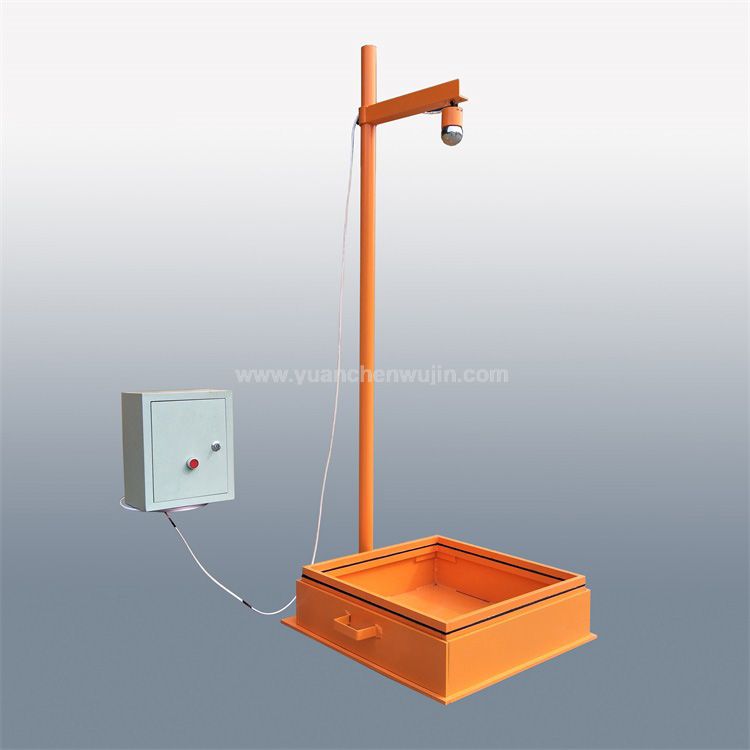

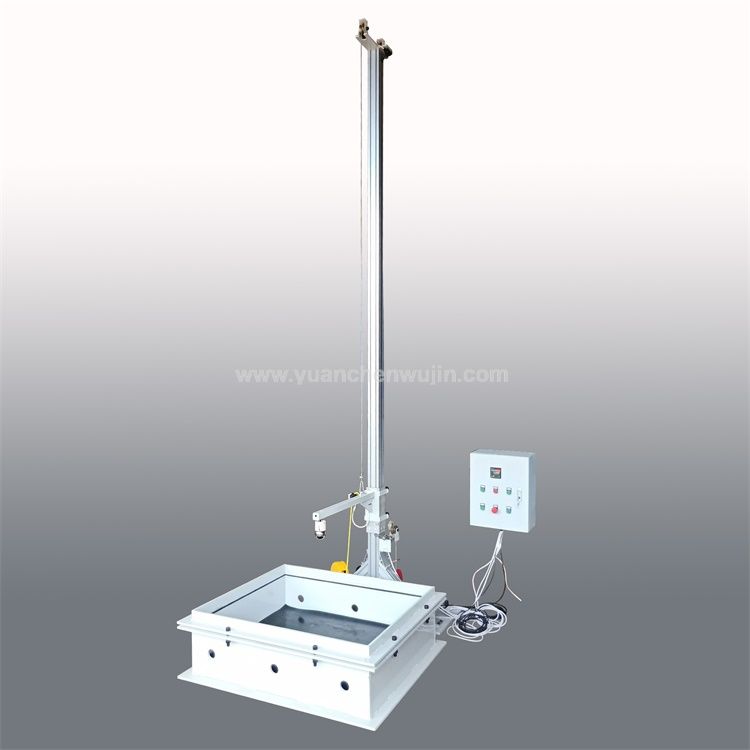

Ball Drop Impact Test Machine

Ball Drop Impact Test Machine




Ball Drop Impact Test Machine

Ball Drop Impact Test Machine




Ball Drop Impact Test Machine

Ball Drop Impact Test Machine

Ball Drop Impact Test Machine

Ball Drop Impact Test Machine


Yuanchen supply all kinds of testing equipment for safety glazing materials and PV module

All equipments design and produce according standard
Ten Years Experience in Production and Processing
Stock Supply/Complete Set of Glass Testing Equipment
Major Suppliers of China's Market Safety Glass Testing Equipment
OEM/ODM/Development, Design and Processing of Various Testing Equipment

Main Equipment:

Ball Drop Test Device:
Steel Ball 2260g/1040g/508g/227g
Drop Height 1m-12m
Samples: 300mm/610mm

Pummel Test Device:
Hammer head diameter: 30mm
Impact Distance: Adjustable

Shot Bag Impact Testing Frame:
Shot Bag 45kg/46kg
Automatic Release
Electric Lifting
Pneumatic Clamping

Head Form Test Device
Head Weight: 10kg
Head Size: 500mm*932mm
Impact height: < 1.5m
Samples size: 1100mm*500mm
Felt hat: 90g/89mm/3mm
Frame size: 1400mm*666mm*320mm

PV Load Test Equipment
Size: 6425mm*2000mm*3490mm
Samples: 1643mm*991mm~2009mm*1027mm (Customized)
Source: Sandbag
Load: 2400Pa 5400Pa 8100Pa 10000Pa (Customized)

Pneumatic Tyres Device
Weight 50 kg ± 0.1 kg
Tire pressure: 0.35Mpa ± 0.02Mpa
Type: 3.50-R8 4PR

Forced Entry Resistant Glass Test Device
Axe: 810mm Long
Axe Quality: 1.80kg
Sample size: 610mm*610mm

Insulating Glass Dew Point Meter
Operating temperature: -80°C ~ 100°C
Tube height: 300mm
Tube diameter: 50mm
Temperature resolution: 0.1 °C

Hard/Soft Pendulum Shock Test for Lifts
Hard pendulum shock device
Height: 330± 15mm
Max diameter: 240±10mm
Weight: 10kg ± 0.1kg
Material: according to ISO standard
Filler: 3.5mm + 0.25mm
Soft pendulum shock device
Height: 330mm ± 15mm
Maximum diameter: 240mm±15mm
Weight: 45kg ± 0.5kg
Material: leather bag
Filler: diameter 3.5mm ± 1mm lead sand

Laminated Glass High Temperature Test Oven
Power: 220V 50Hz 3Kw (Customized)
Outside Size: 400mm*255mm*480mm
Inside Size: 400mm*255mm*480mm
At most 6 samples with 300mm*300mm

Tempered Glass Flatness Measuring Instrument
Measurement of arcuate form and wave form of toughened glass
Resolution: 0.01mm
Measuring Span: 300mm-12000 mm ( Customized)

Impactor for building Glass and Metal Guardrail
Impact Steel ball
Weight: 1040g ± 10g
Dia: 63mm
Shot bag impactor
Data:
Weight: 45kg ± 0.1kg
Height: 330mm ± 13mm
Max diameter: 250mm
Material: leather bag filling lead shot
Leather thickness: 0.15mm
Lead sand size: 2.5mm

Hard and Soft Body Impactors for Opaque Wall Components
Soft body:
Weight: 50kg
Dia: 400mm
Conical canvas bag filles with 3mm glass sphere
Hard Body:
Steel Ball 0.5 kg/50mm
Steel Ball 1 kg/62.5mm
