227 g Ball Test
2260 g ball test
Test Method for Ball Drop Impact

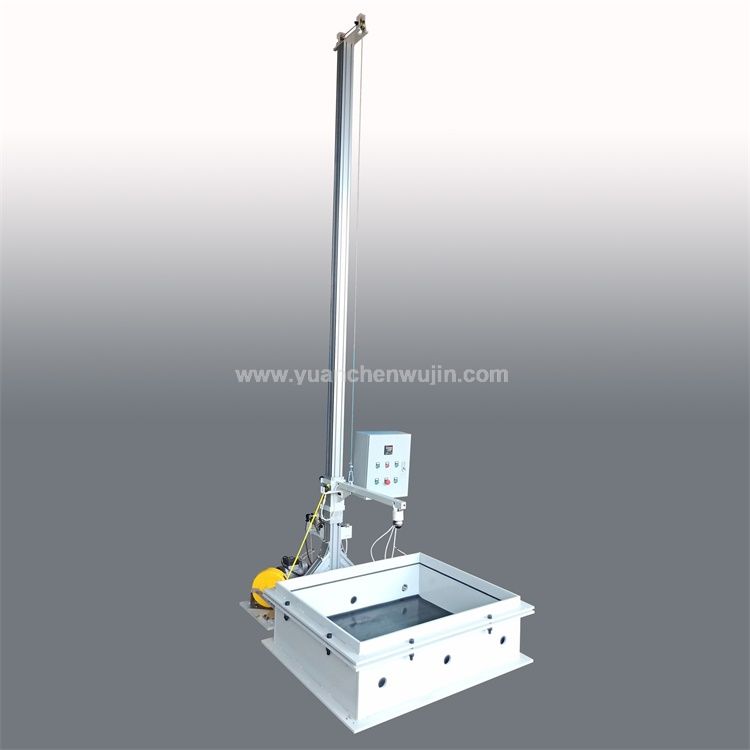

Glazing Materials Ball Test Device
Determination of whether the safety glazing material has a certain minimum strength and cohesion under impact from a small hard object
Suitable for impact test of safety glass and tempered glass.
Related Standard:

1). ISO 3537 Road vehicles — Safety glazing materials — Mechanical tests– Clause 6: 227 g ball test, Clause 7: 2260 g ball test
2). GB 15763.3 Safety glazing materials in building Part 3: Laminated glass--Appendix B Drop ball impact specimen support
3). ASTM F3007 Standard Test Method for Ball Drop Impact Resistance of Laminated Architectural Flat Glass

Principle:
Determination of whether the safety glazing material has a certain minimum strength and cohesion under impact from a small hard object

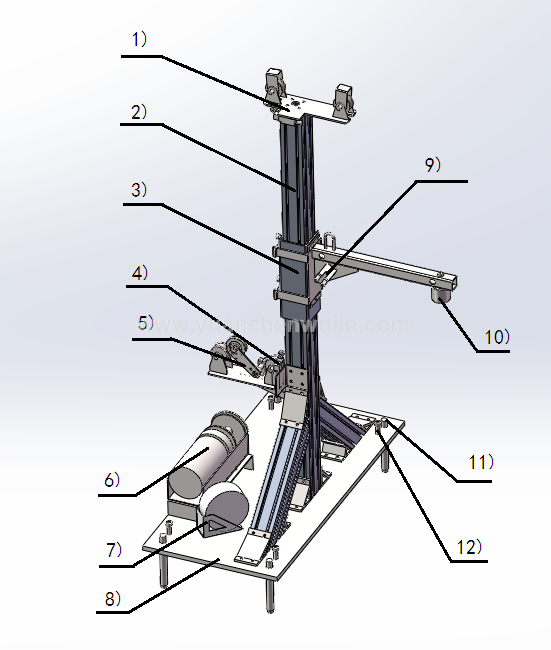

1) Top pulley group 2) Column 3) Square tube 4) Lower limit switch 5) Encoder bracket 6) Motor

7) Wire take-up 8) Base 9) Release device 10) Electromagnet 11) Expansion bolt 12) Leveling screw

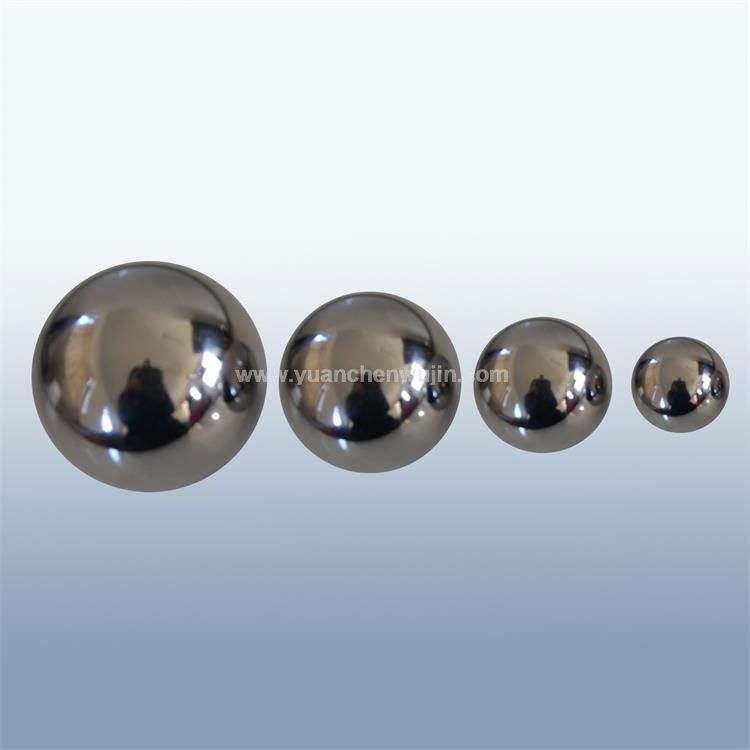

2260g / 82mm 1040g / 63mm 508g / 50mm 227g / 38mm
Drop Height: 1000mm, 5000mm, 12000mm, Customized

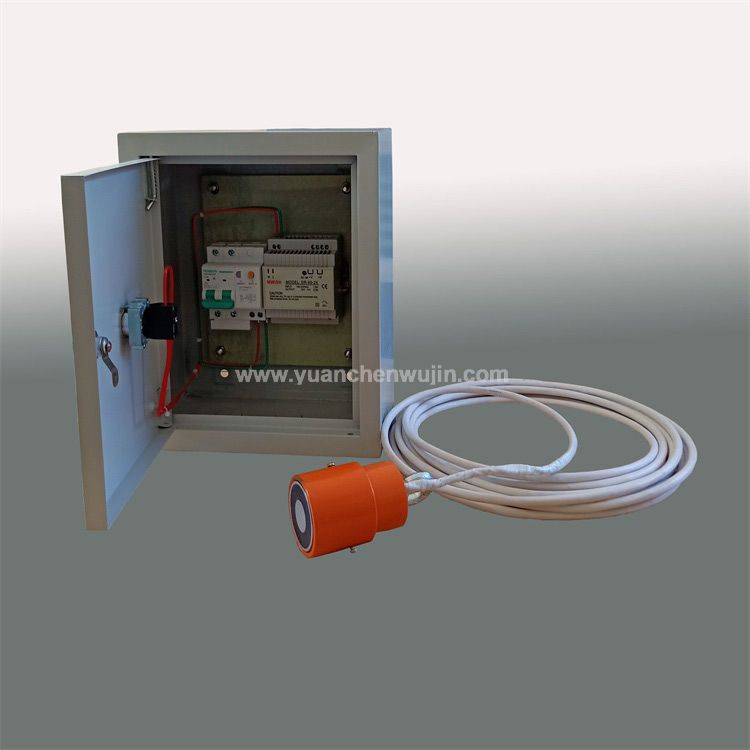

Automatic release and lift. Power: 220V 50Hz 580W

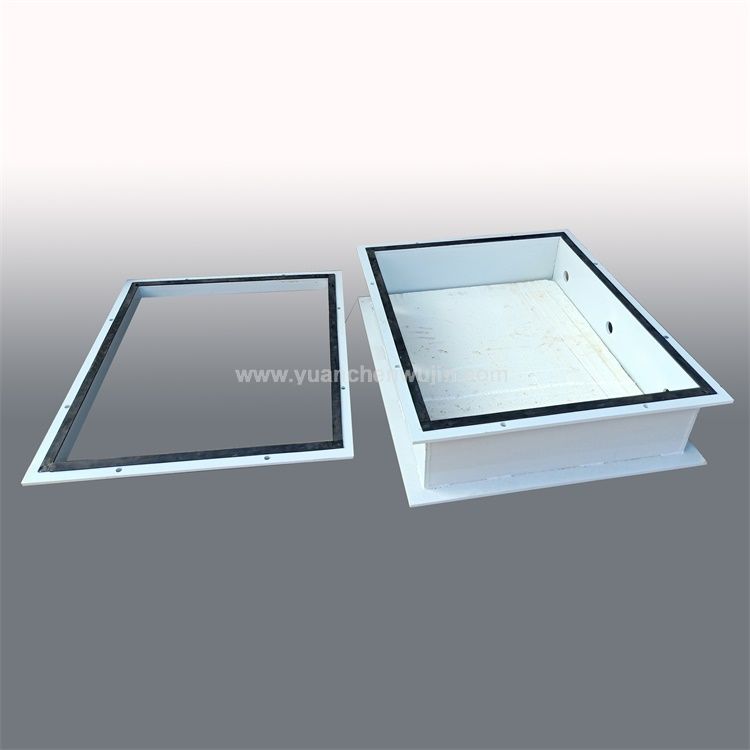

Supporting fixture:
a) Support Size: 350mm*350mm and 660mm*660mm (Customized)
b) Frame width 15mm
c) Steel box height 150mm
d) Rubber Gasket: thickness 3mm, width 15mm, hardness shore A50
e) Interposed sheet of rubber: thickness 3mm, hardness shore A50
Applied Test Pieces Size: 300mm*300mm 610mm* 610mm

Test Height: 1200mm, 1500mm, 1900mm, 2400mm, 3000mm, 3800mm, 4000mm, 10000mm, 12000mm(Customized)
Sample Size: 300mm x 300mm   610mm 610mm
Frame: 350mm x 350mm   660mmx  660mm

Various of Safety Glass Test Device:

Shot Bag Impactor

Headform Test Device

Ball Impact Test Frame

Shot Bag Impactor Frame

High Temperature Test Oven

Flatness Measuring Instrument

Insulating Glass Dew Point Meter

Steel Ball 2260g 1040g 227g 508g

Soft Pendulum Shock Device for Elevator

Hard Pendulum Shock Device for Elevator

Mechanical Load Test Equipment for PV Module

Test Frame of Forced Entry Resistant Glass and Impact Tool

Our Advantages:

Ten Years Experience in Production and Processing

Stock Supply/Complete Set of Glass Testing Equipment

Major Suppliers of China's Market Safety Glass Testing Equipment

OEM/ODM/Development, Design and Processing of Various Testing Equipment

Various of Test Equipment According to Safety Glass Chinese Standard / Australian Standard / European Standard
