Product Name:

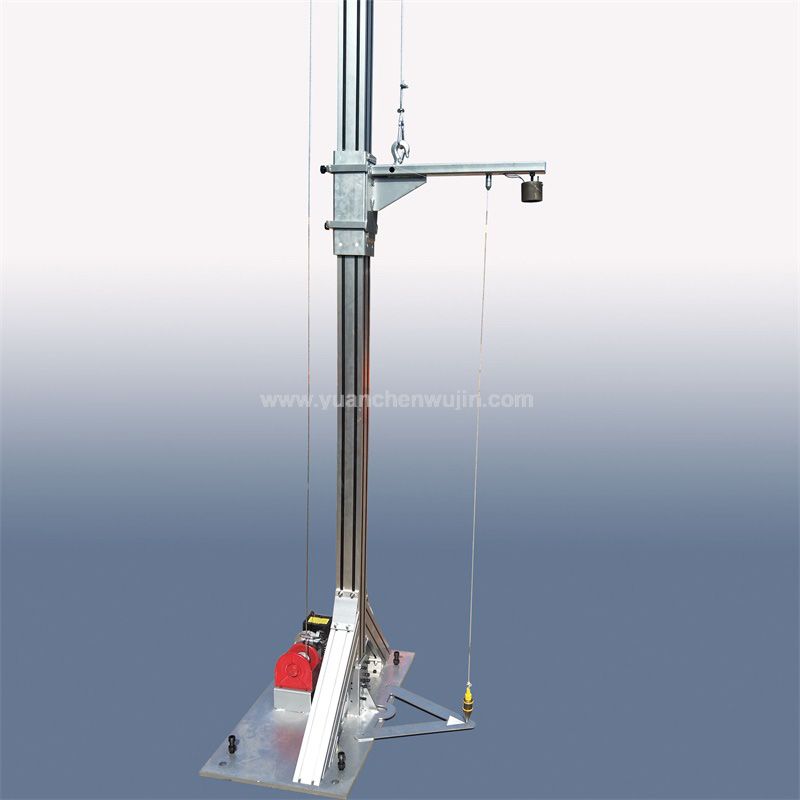

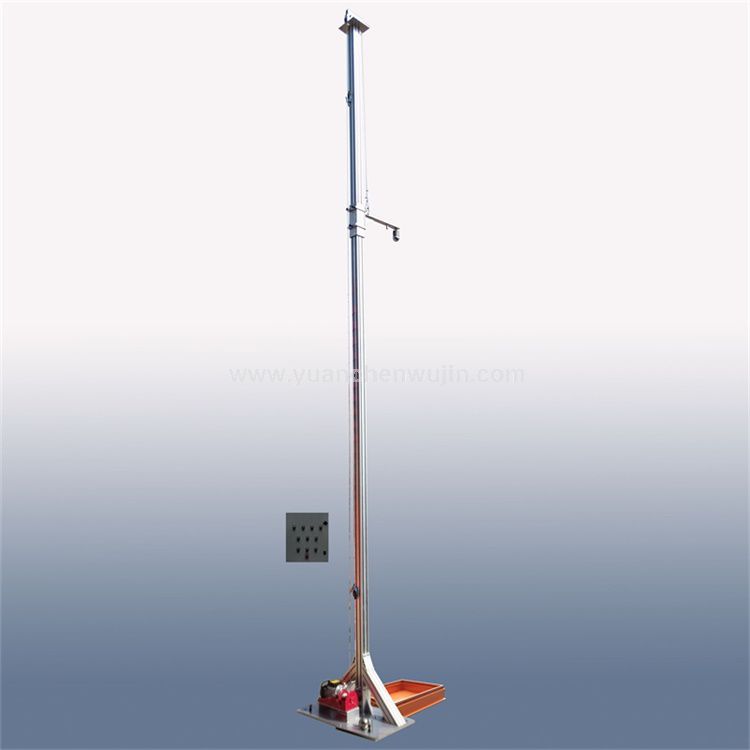

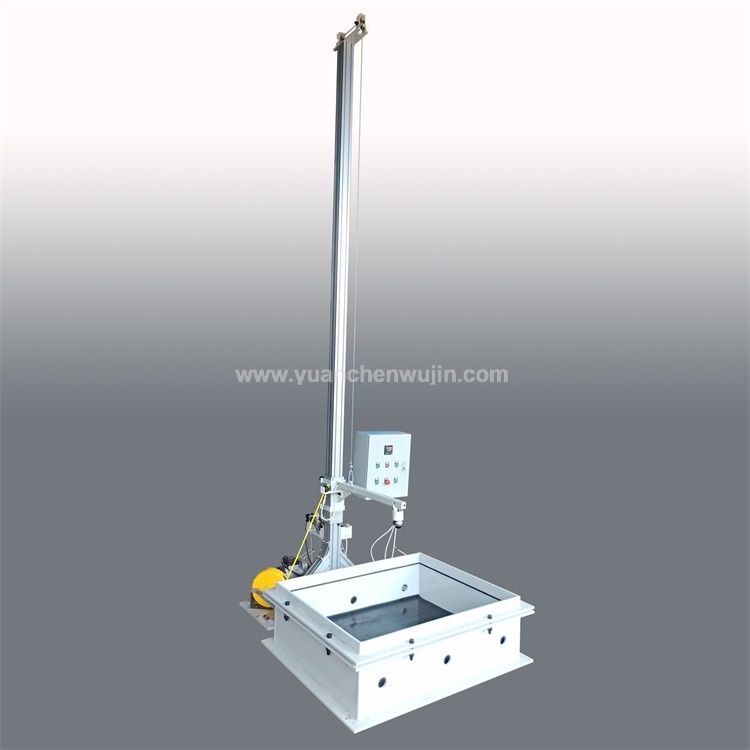

12m Ball Drop Test Frame

Model No.:


Product Details

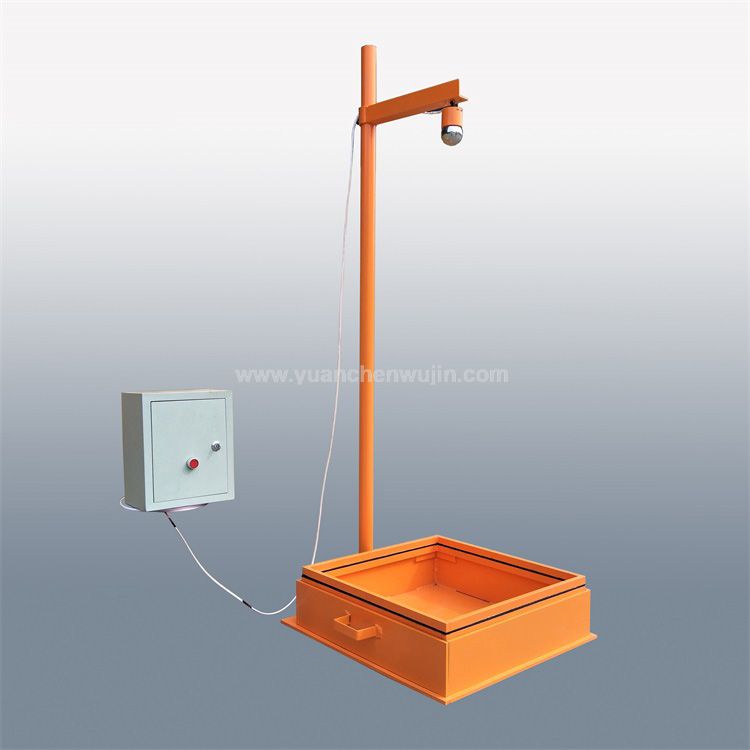

12m Ball Drop Test Frame


Related Standard:

ISO 3537

Road vehicles — Safety glazing materials — Mechanical tests – Clause 6: 227 g ball test, Clause 7:2260 g ball test

EN 356

Glass in building-Security glazing-Testing and classification of resistance against manual attack  6.1 Hard body drop test

GB 15763.3

Safety glazing materials in building Part 3:Laminated glass – Appendix BDrop ball impact specimen support


Determination of whether the safety glazing material has a certain minimum strength and cohesion under impact from a small hard object

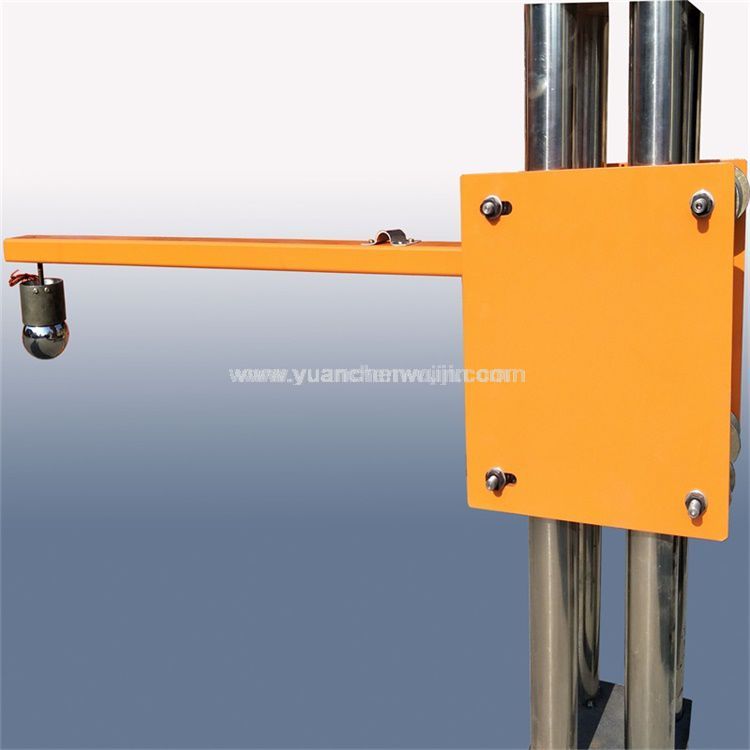

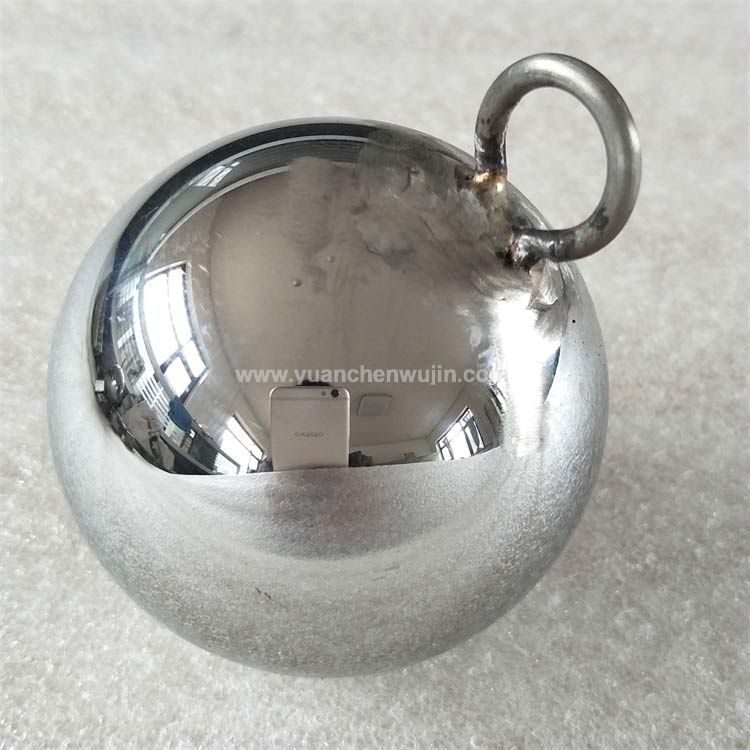

ApparatusHardness steel ball:

a)        2260g ± 20g, diameter of approximately 82.5mm

b)        227g ± 2g, diameter of approximately 38 mm

c)        1040g ± 10g, diameter of approximately 63.5 mm

d)       508g±3g, diameter of approximately 50 mm

Frame Height: 1000mm, 5000mm, 12000mm, Customized

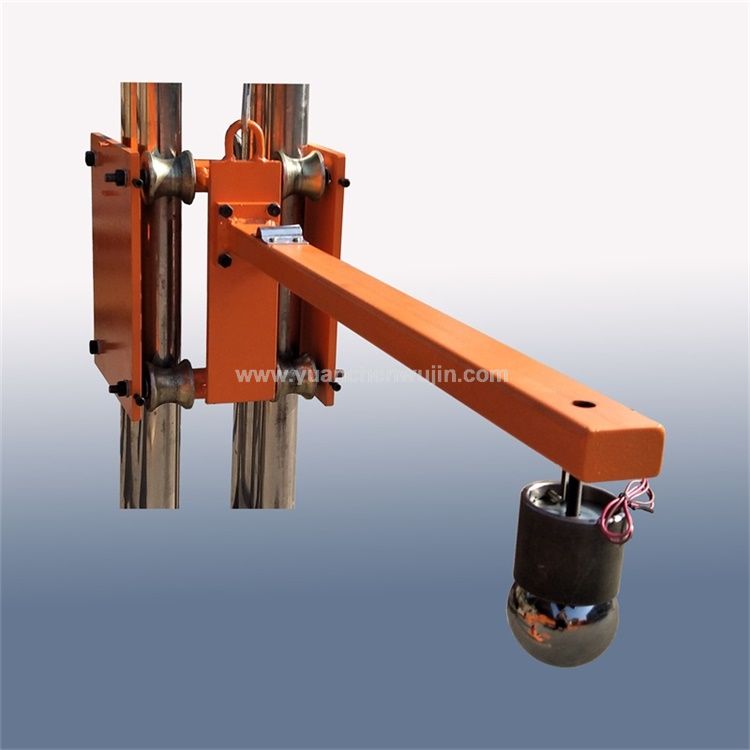

Automatic release and lift. Power: 220V 50Hz 580W

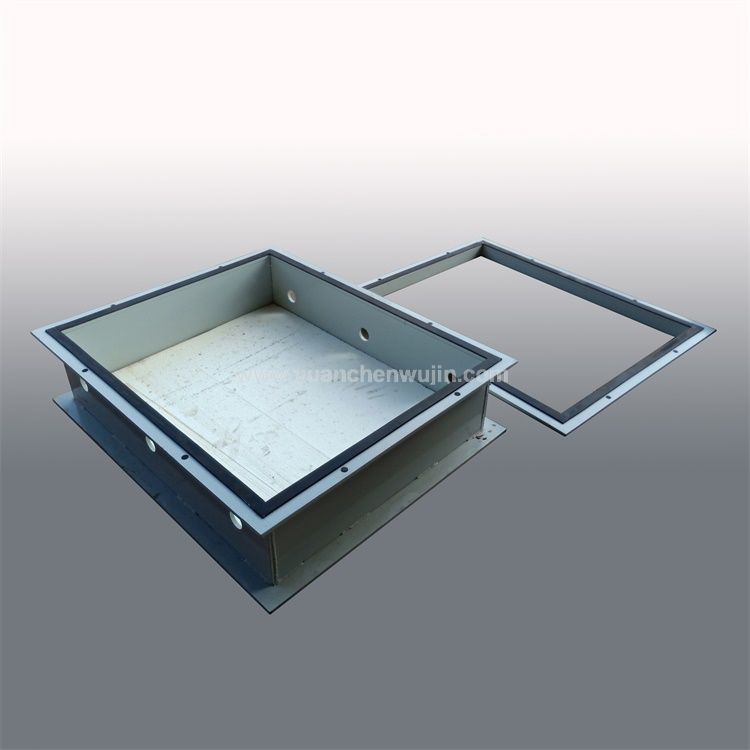

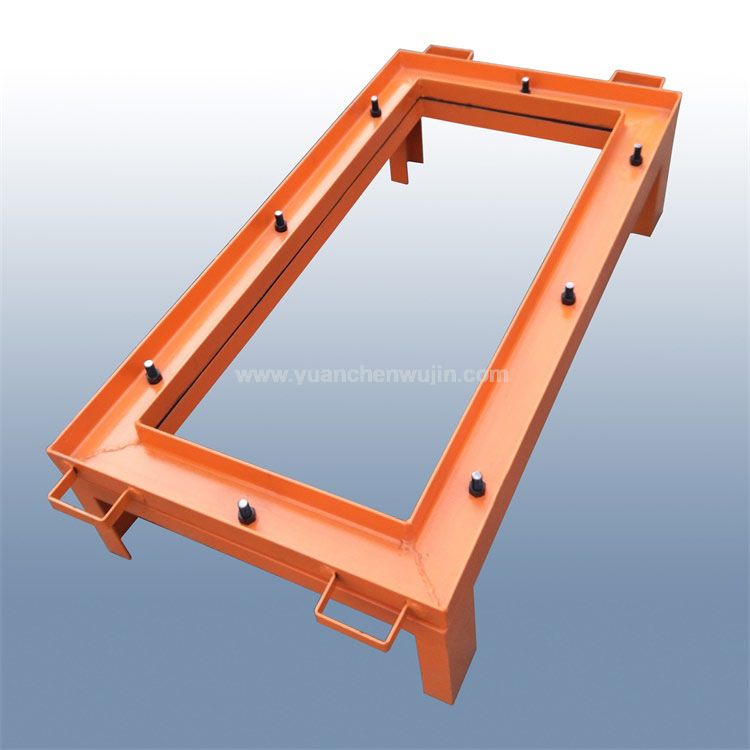

Supporting fixture:

a)        Support Size: 350mm*350mm  and 660mm*660mm (Customized)

b)        Frame width 15mm

c)        Steel box height 150mm

d)       Rubber Gasket: thickness 3mm, width 15mm, hardness shore A50

e)        Interposed sheet of rubber: thickness 3mm, hardness shore A50

Applied Test Pieces Size: 300mm*300mm   610mm* 610mm

12m Ball Drop Test Frame

12m Ball Drop Test Frame

12m Ball Drop Test Frame

12m Ball Drop Test Frame

12m Ball Drop Test Frame

We specialize in processing safety glass testing equipment.

Various testing equipment such as shot bags / twin tires and impact frame, 227 and 2260 g steel ball and ball drop impact devices, boiling test instruments for laminated glass, flatness measurement instruments for tempered glass, insulating glass dew point meters and head-form

Safety Glass testing Equipment:

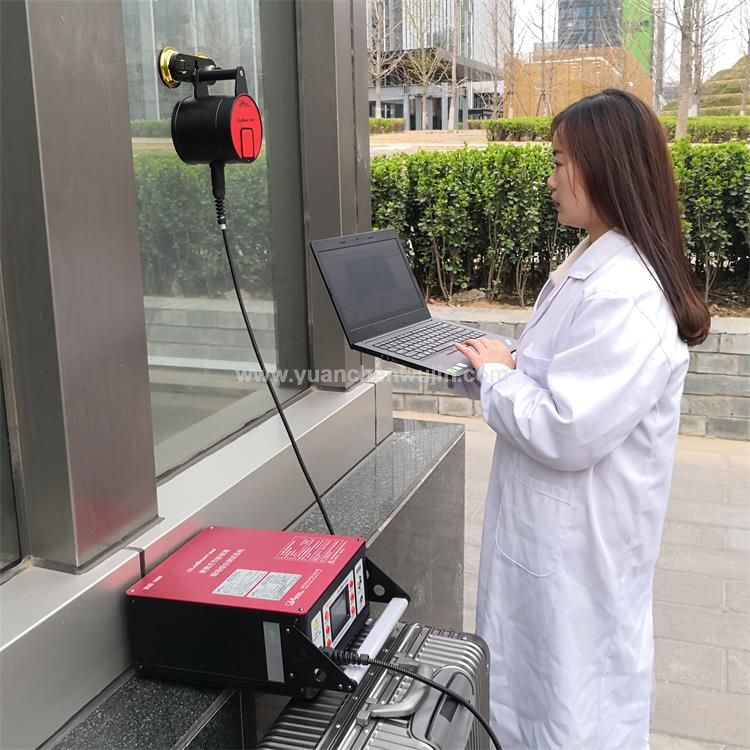

Portable on-site Comprehensive Measurement Instrument for Energy-saving Glass

It is applicable to the field test for opt thermal parameters of energy-saving glass installed and or to be installed

The data that the instrument can measure is: thermal parameters, optical parameters, light transmittance, light reflectance, shading coefficient, U value, LSG, Low-E position, E value, space thickness, overall thickness, glass thickness

The types of glass that the instrument can measure are:

Single pane, Laminated glass, Uncoated insulated glass, Coating on both sides and below, Coating on more than two sides, Coating on both sides and below, Coating on more than two sides, Vacuum glazing

 12m Ball Drop Test Frame

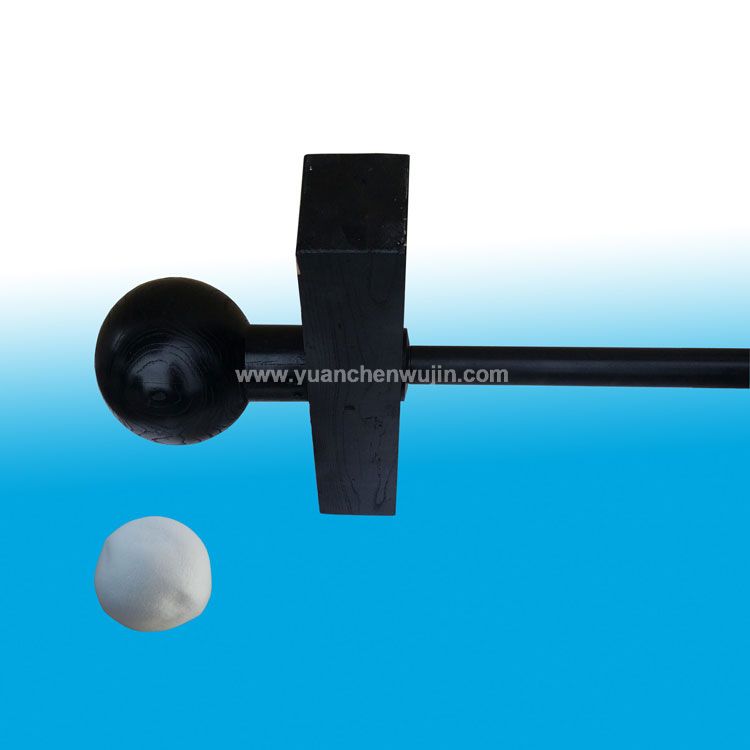

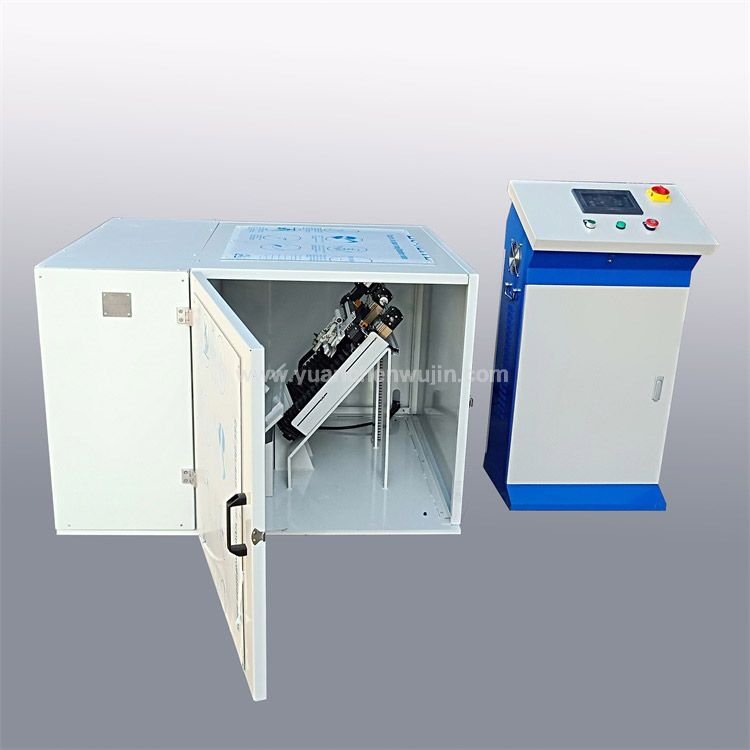

Pummel Test Device:

Hammer head diameter: 30mm

Impact Distance: Adjustable

12m Ball Drop Test Frame

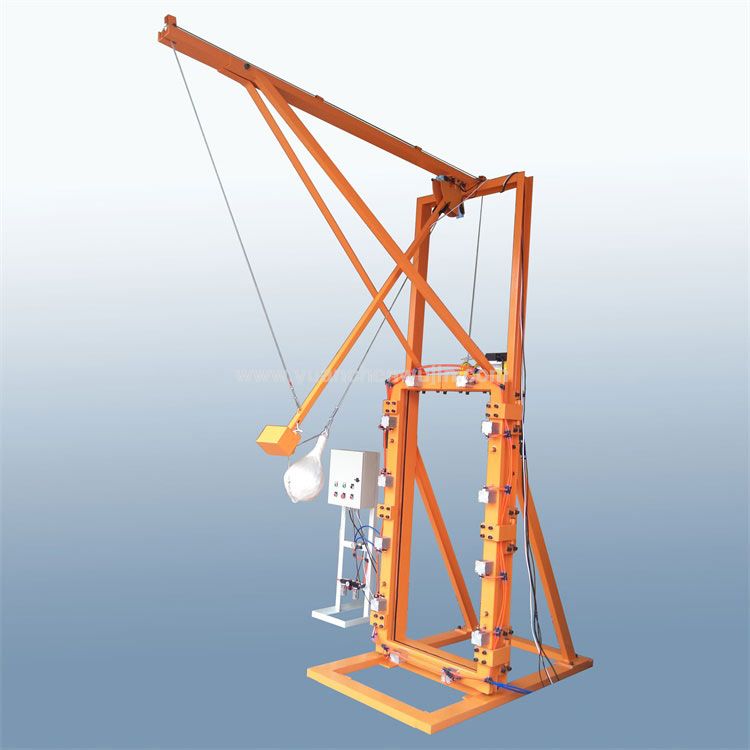

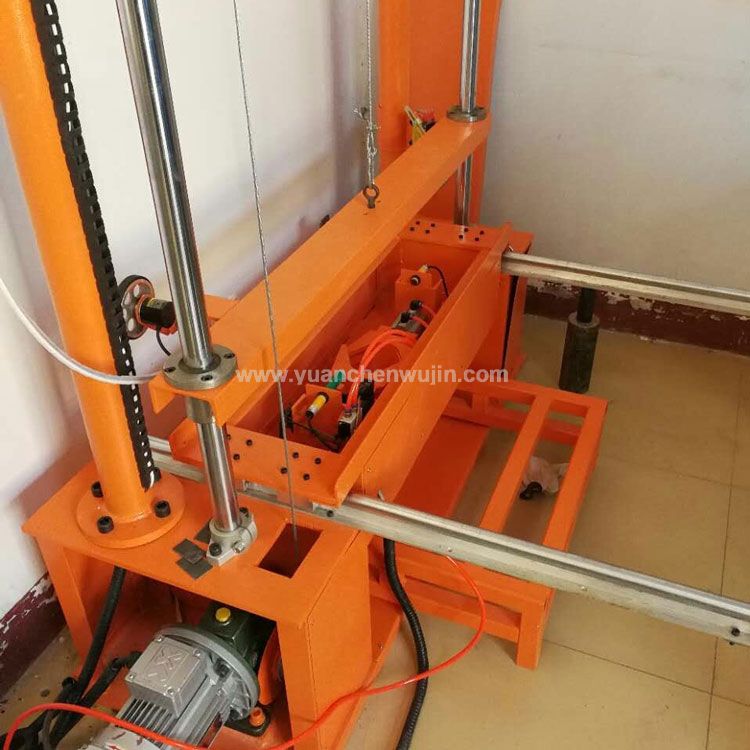

Shot Bag Impact Testing Frame:

Shot Bag 45kg/46kg

Automatic Release

Electric Lifting

Pneumatic Clamping

 12m Ball Drop Test Frame

Head Form Test Device

Head Weight: 10kg

Head Size: 500mm*932mm

Impact height: < 1.5m

Samples size: 1100mm*500mm

Felt hat: 90g/89mm/3mm

Frame size: 1400mm*666mm*320mm


12m Ball Drop Test Frame

12m Ball Drop Test Frame

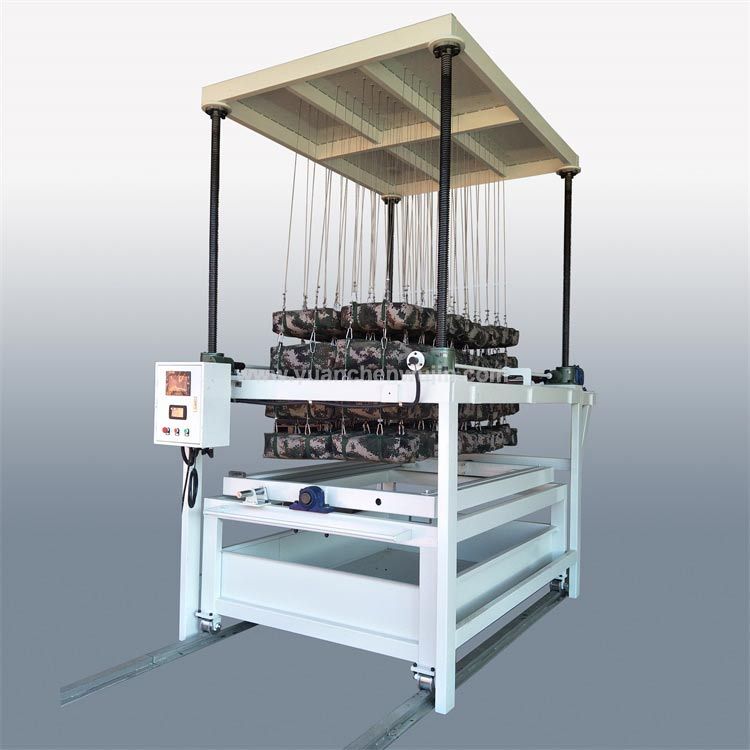

PV Load Test Equipment

Size: 6425mm*2000mm*3490mm

Samples: 1643mm*991mm~2009mm*1027mm (Customized)

Source: Sandbag

Load: 2400Pa 5400Pa 8100Pa 10000Pa (Customized)

 12m Ball Drop Test Frame

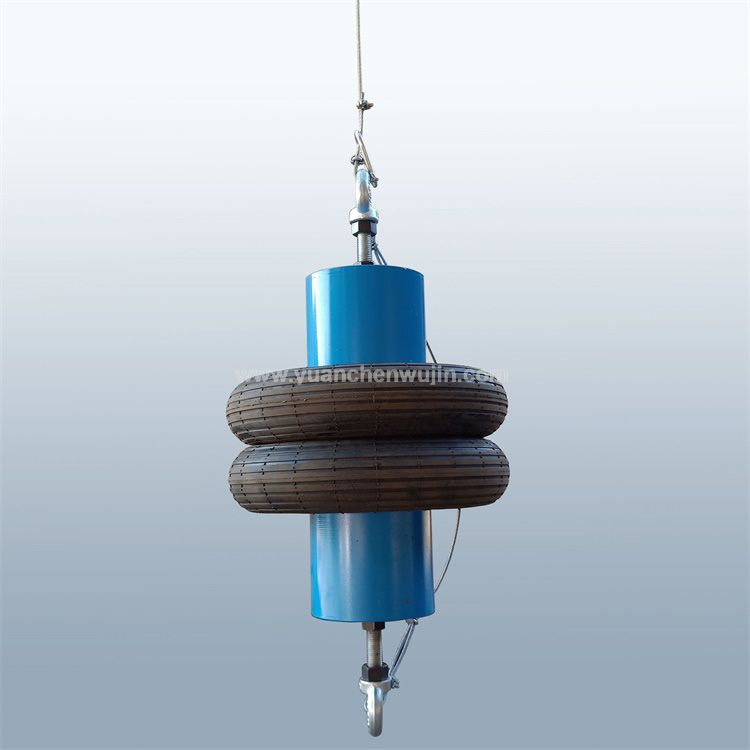

Pneumatic Tyres Device

Weight 50 kg ± 0.1 kg

Tire pressure: 0.35Mpa ± 0.02Mpa

Type: 3.50-R8 4PR

 12m Ball Drop Test Frame

Forced Entry Resistant Glass Test Device

Axe: 810mm Long

Axe Quality: 1.80kg

Sample size: 610mm*610mm

 12m Ball Drop Test Frame

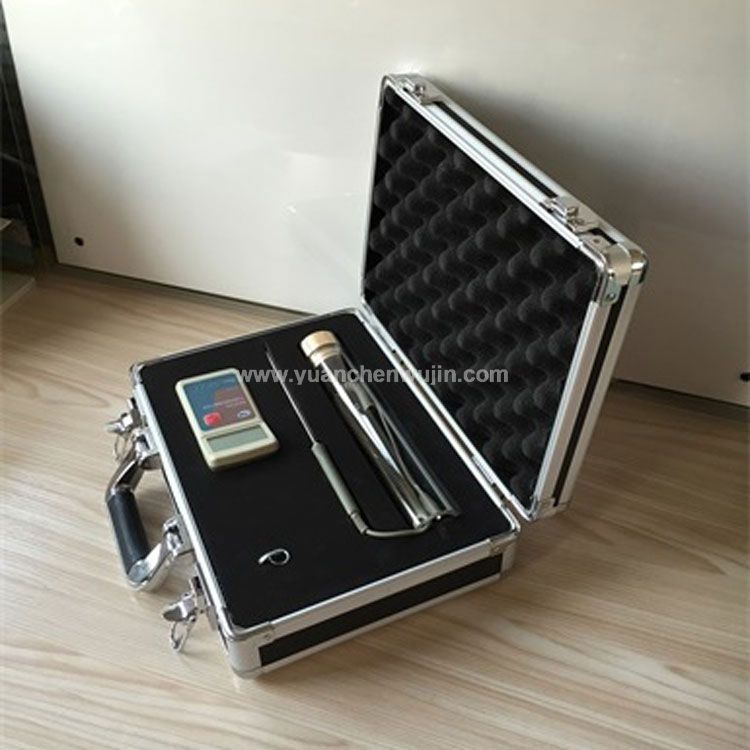

Insulating Glass Dew Point Meter

Operating temperature: -80°C ~ 100°C

Tube height: 300mm

Tube diameter: 50mm

Temperature resolution: 0.1 °C

 12m Ball Drop Test Frame

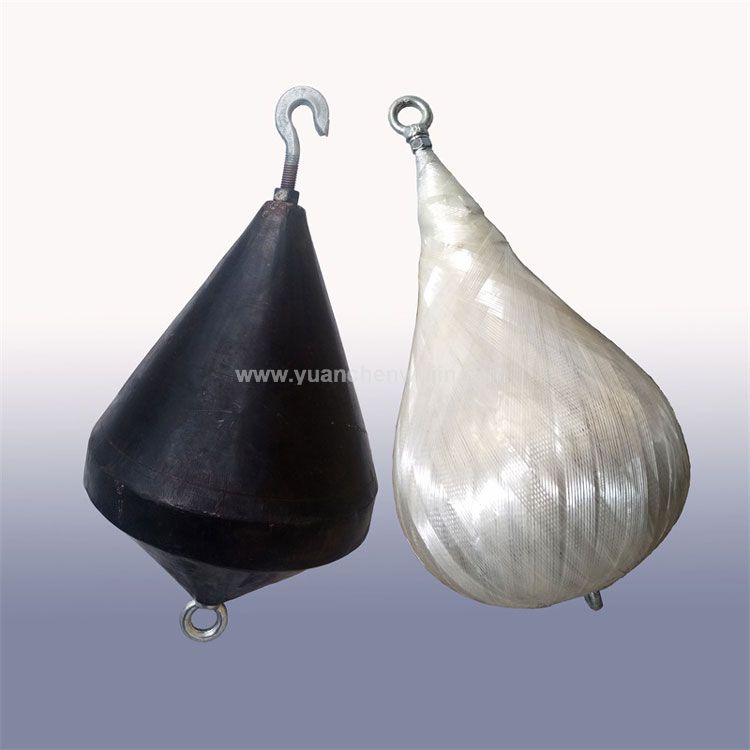

Hard/Soft Pendulum Shock Test for Lifts

Hard pendulum shock device

Height: 330± 15mm

Max diameter: 240±10mm

Weight: 10kg ± 0.1kg

Material: according to ISO standard

Filler: 3.5mm + 0.25mm

Soft pendulum shock device

Height: 330mm ± 15mm

Maximum diameter: 240mm±15mm

Weight: 45kg ± 0.5kg

Material: leather bag

Filler: diameter 3.5mm ± 1mm lead sand

 12m Ball Drop Test Frame

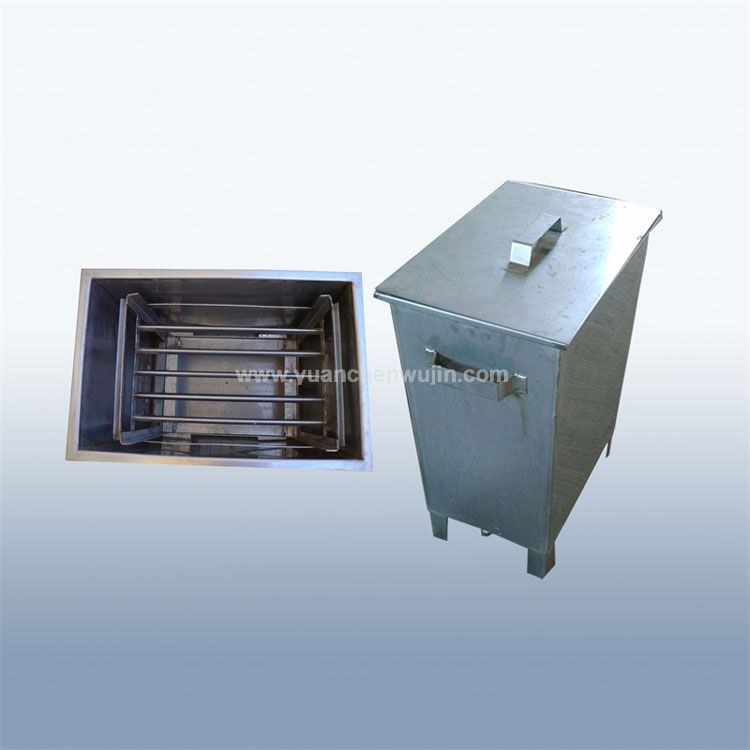

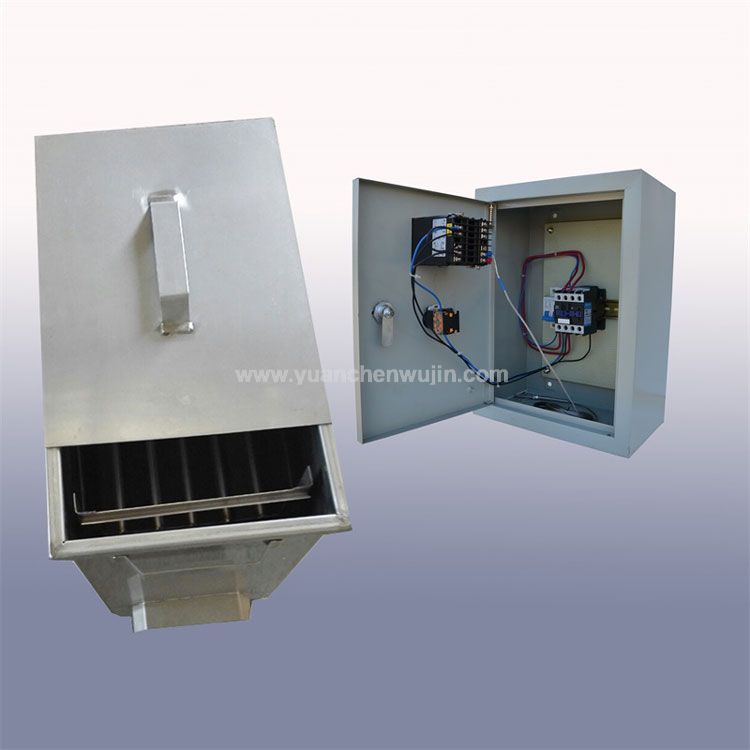

Laminated Glass High Temperature Test Oven

Power: 220V 50Hz 3Kw (Customized)

Outside Size: 400mm*255mm*480mm

Inside Size: 400mm*255mm*480mm

At most 6 samples with 300mm*300mm


12m Ball Drop Test Frame

12m Ball Drop Test Frame

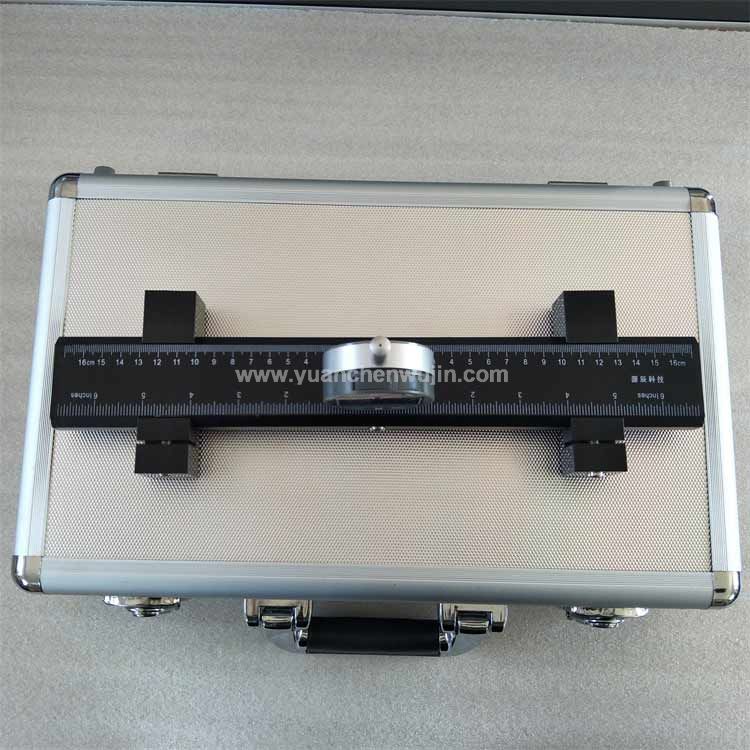

Tempered Glass Flatness Measuring Instrument

Measurement of arcuate form and wave form of toughened glass

Resolution: 0.01mm

Measuring Span: 300mm-12000 mm ( Customized)

 12m Ball Drop Test Frame

Impactor for building Glass and Metal Guardrail

Impact Steel ball

Weight: 1040g ± 10g

Dia: 63mm

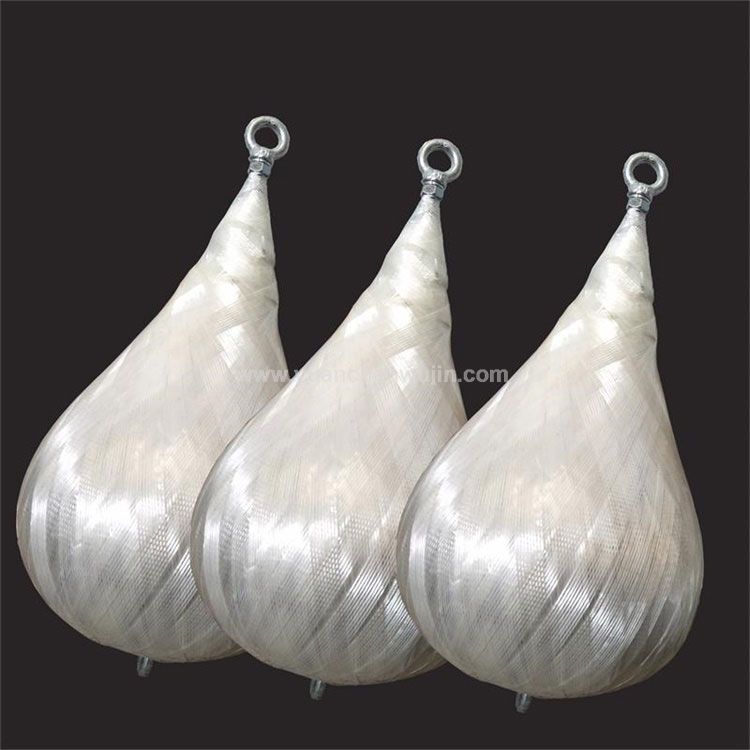

Shot bag impactor


Weight: 45kg ± 0.1kg

Height: 330mm ± 13mm

Max diameter: 250mm

Material: leather bag filling lead shot

Leather thickness: 0.15mm

Lead sand size: 2.5mm


12m Ball Drop Test Frame

12m Ball Drop Test Frame

Hard and Soft Body Impactors for Opaque Wall Components

Soft body:

Weight: 50kg

Dia: 400mm

Conical canvas bag filles with 3mm glass sphere

Hard Body:

Steel Ball 0.5 kg/50mm

Steel Ball 1 kg/62.5mm
